Basic Information
Battery Type
LiFePO4 (1152wh)
Mounting Height
Max 15 meters
📝
Product Description

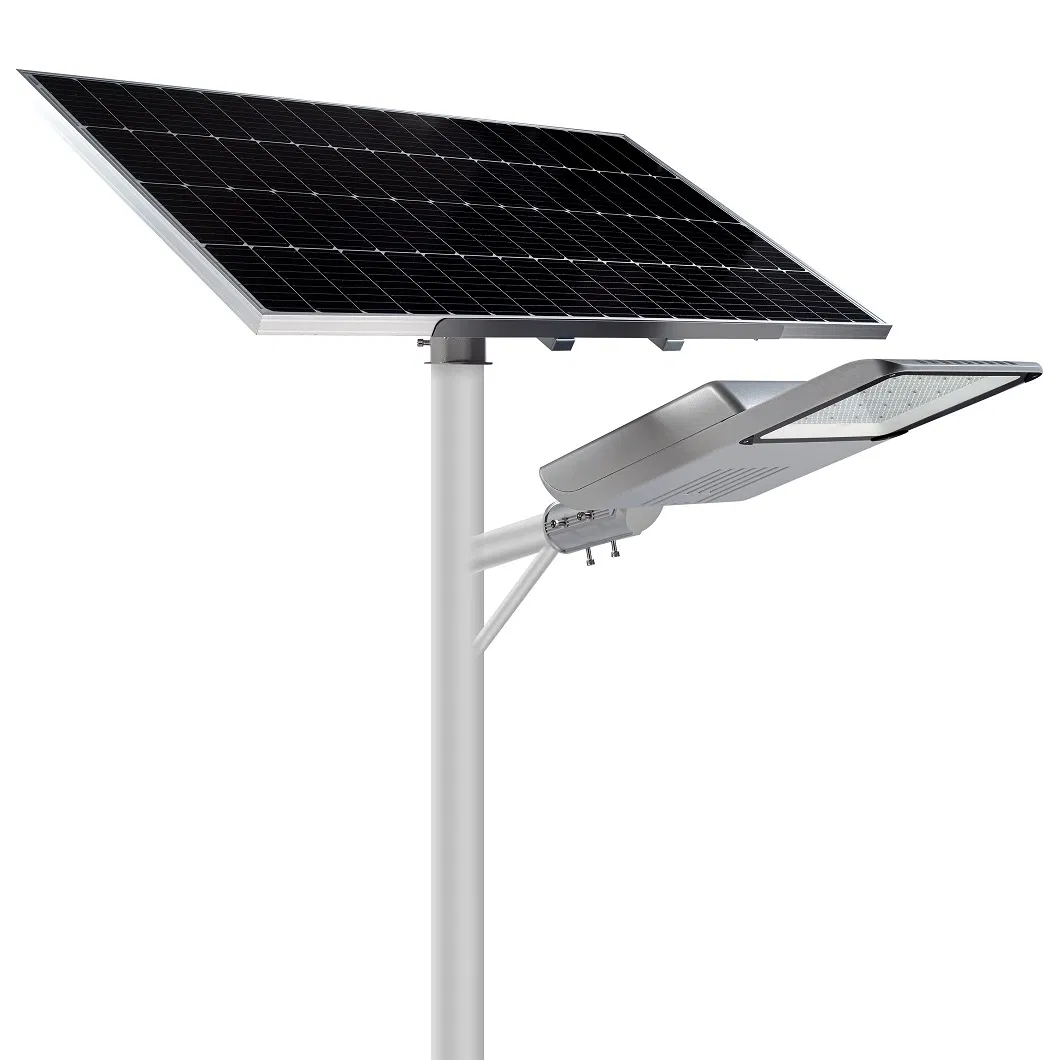

Solar street lights model M25 was made according to ISO 9001 standard, with 205Lm/W high luminous efficacy, especially for PUBLIC lighting use. Designed by integrated fixture, with PV panel, Lithium battery, charge controller, LED components all together, which make the installation easily.

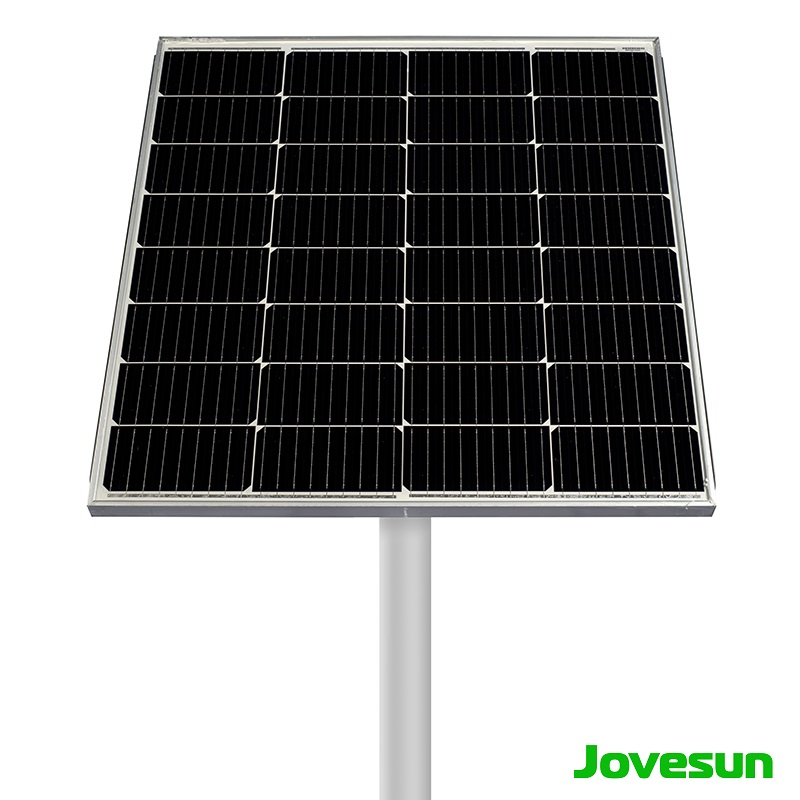

With 24% convert solar PV panel MONO type, and LiFePo4 battery, Constant current driver, MPPT charging agreement, which make the solar lights have excellent charge and discharge performance.
M25 model 120watts can be used for Max 12meter mounting height with luminous flux 52lx, which is strong lumens with advanced technology of LED improvement, with Type I Type II Type III Type IV Type V different optical lens which make the lights can be widely used for expressway, highway, Road, Area lighting.
⚙️
Product Parameters
| Parameters |
M26st-50W |
M26st-60W |
M26st-80W |
M26st-100W |
M26st-120W |
M26st-150W |
| Solar panel |
100Wp 18V |
120Wp 18V |
160Wp 18V |
200Wp 18V |
240Wp 18V |
300Wp 18V |
| Battery |
244Wh |
384Wh |
576Wh |
768Wh |
960Wh |
1152Wh |
| Luminous flux |
6150lm |
8200lm |
12300lm |
16400lm |
20500lm |
24600lm |
| Efficacy |
205Lm/W |
| Mounting Height |
5-6m |
6-8m |
8-10m |
10-12m |
12-14m |
14-16m |
📜
Certifications
This model was fully certified for projects tender use:
Standards: IEC 60598, IEC 61215, 61730, IEC 62109, IEC 62133, IEC 62471, IEC 62620
Testing: LM79, LM80, TM21
Ratings: IP66, IK, CE, RoHS
Includes Battery, PV panel, LED modular, Controller, and luminaire protection certificates.
🔧
Installation Instructions

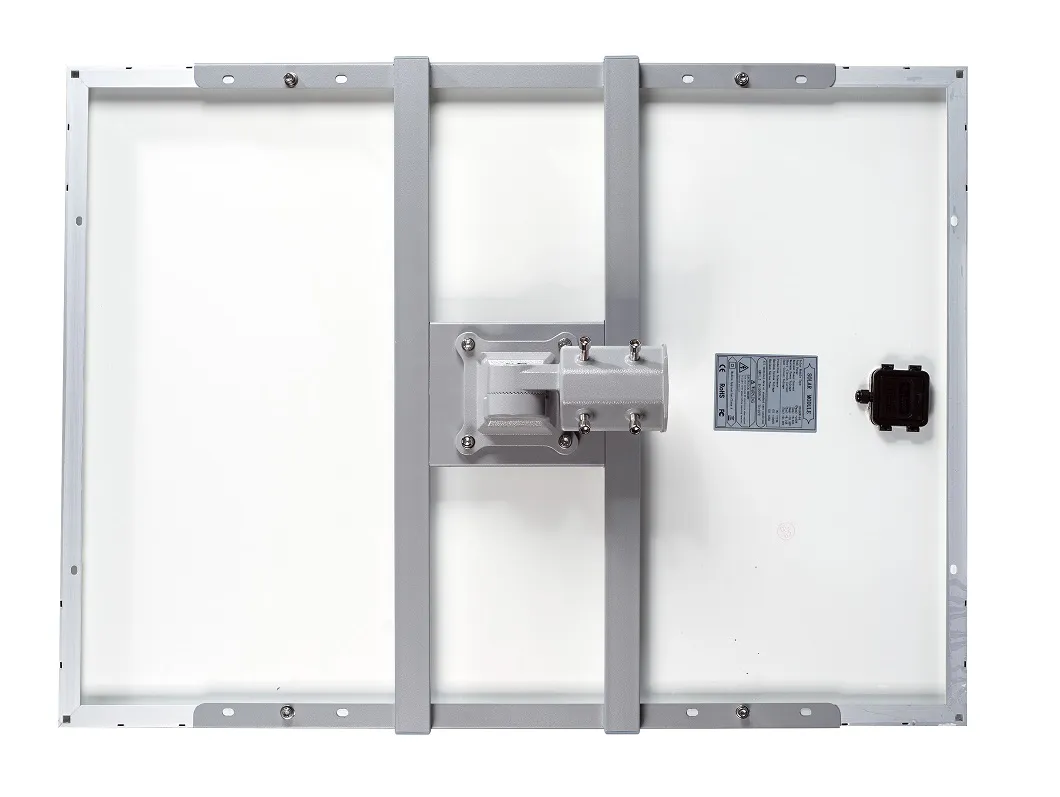

This model provide mounting tilt way, can do horizontal to vertical installation. Ideal to replace the traditional HID street lights by keep the existing poles.
❓
Frequently Asked Questions
What is the luminous efficacy of the M26 series?
The M26 series features a high luminous efficacy of 205lm/W, ensuring superior brightness and energy efficiency for public lighting projects.
What type of battery is used in these solar lights?
The system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) batteries, known for their long lifespan and stable performance.
What is the maximum mounting height for the 150W model?
The 150W model is designed for high-pole applications with a recommended mounting height of 14 to 16 meters.
How long does it take to fully charge the battery?
Under standard sunlight conditions, the system typically requires about 5 to 6 hours to achieve a full charge.
Is the product suitable for harsh outdoor environments?
Yes, with an IP66 rating and casting aluminum body, it is highly resistant to dust and heavy rain, making it ideal for street and highway use.
Does the light support intelligent controls?
Yes, it features MPPT charging and supports IoT Lora and Motion Sensor working models for optimized energy management.
