Basic Information
Lamp Body Material
Aluminum Alloy
Color Temperature
Cool White 6000-6500K
Power
18V/70wp (High Efficiency Polystalline PV)
Solar Panel Life-Span
25 Years
Batteries Life-Span
8+ Years (2000 Circles)
Max Lamp Lumen
5400-6000 Lm
Product Description
Maintenance Free 60W Integrated All in One Solar Street Light LED Solar Lighting for Road Outdoor Garden. This integrated system combines solar panel, LED light source, and lithium battery into a single, sleek unit.
Technical Specification
| SUPERIOR (BRONZE) Series |
MODEL NO. ISSL-BRZ-60W |
| Solar Panel |
Power |
18V/70Wp (High Efficiency Monocrystalline PV) |
| Life-span |
25 years |
| Batteries |
Capacity/Type |
12.8V/30AH (338.00WH) / LiFePO4 Lithium |
| Life-span |
8+ years (2,000 circles) |
| Controller |
Type |
MPPT / Waterproof class: IP68 |
| Sensor |
Microwave Radar (PIR & Timing as optional) |
| LED Source |
Rated Power |
12V/60W (36LEDs X 3Modules) |
| Lumens(LM) |
5400-6000lm |
| Viewing Angle |
140° |
| Charge Time |
By Solar |
6 hours |
| Working Temp. |
-30ºC~+80ºC |
| Warranty |
3 years |
Product Advantages
Wireless Application
Integrated solar panel, LED, lithium battery, and micro-controller into one system, simple and stylish.
Micro-Computer Controlled
Combines light control and time control systems perfectly for maximum energy efficiency.
Easy Installation
No power or cables required; easy installation in just 5 minutes.
Lithium Battery
Adopt LiFePO4 lithium battery with more than 8 years lifespan.
Extreme Light Efficiency
Light efficiency reaches 195 lm/w, providing more brightness and uniformity.
Modular Design
All components are modular and standardized, making battery replacement easy.

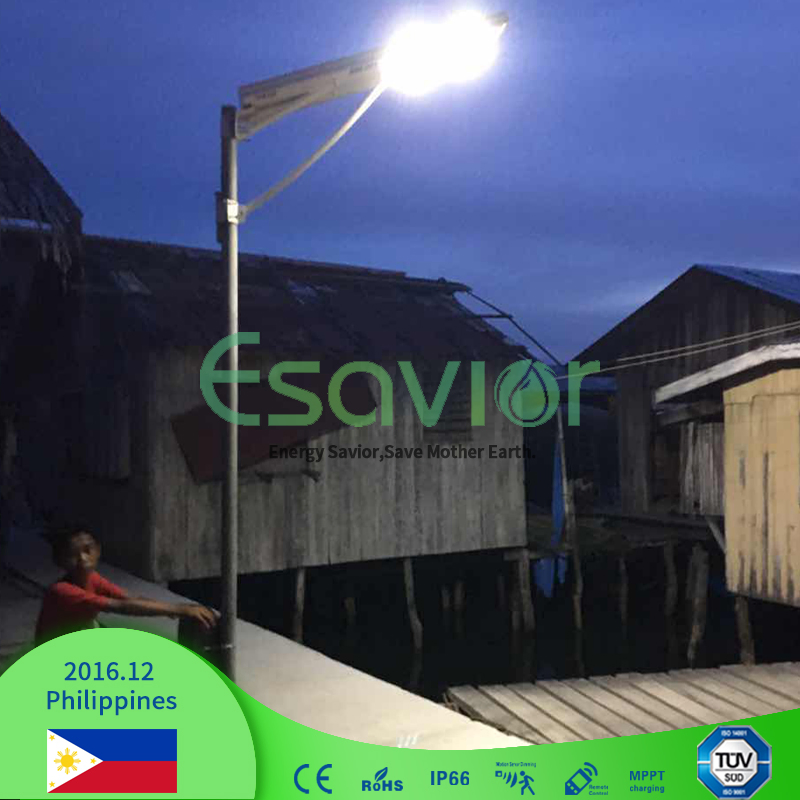

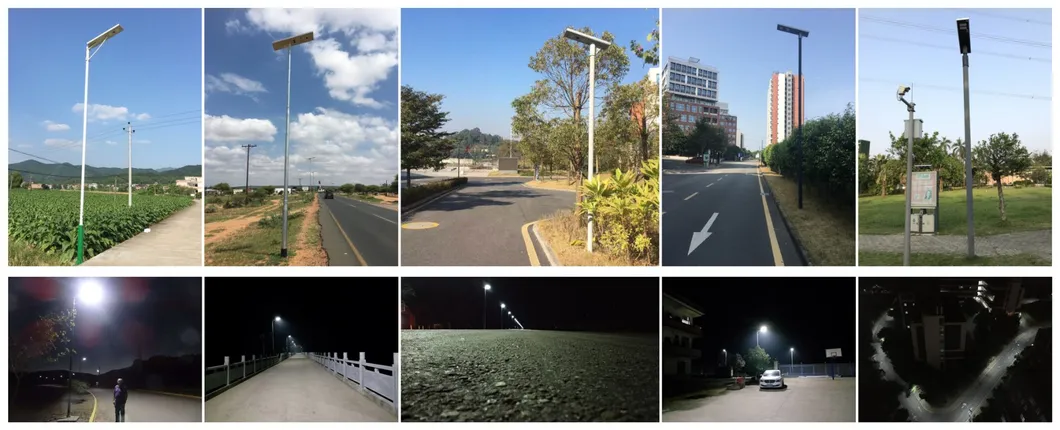

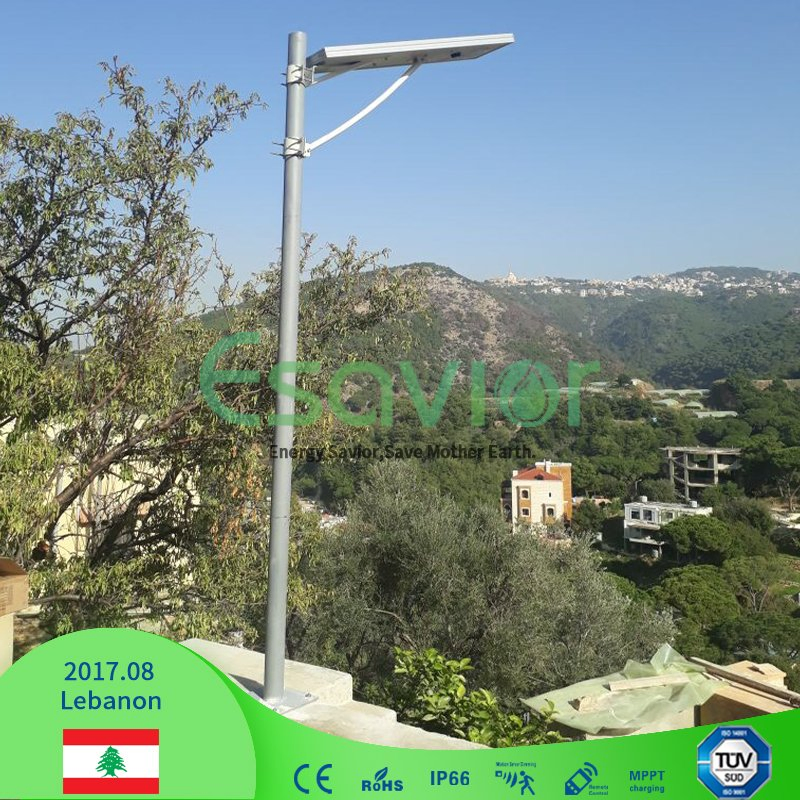

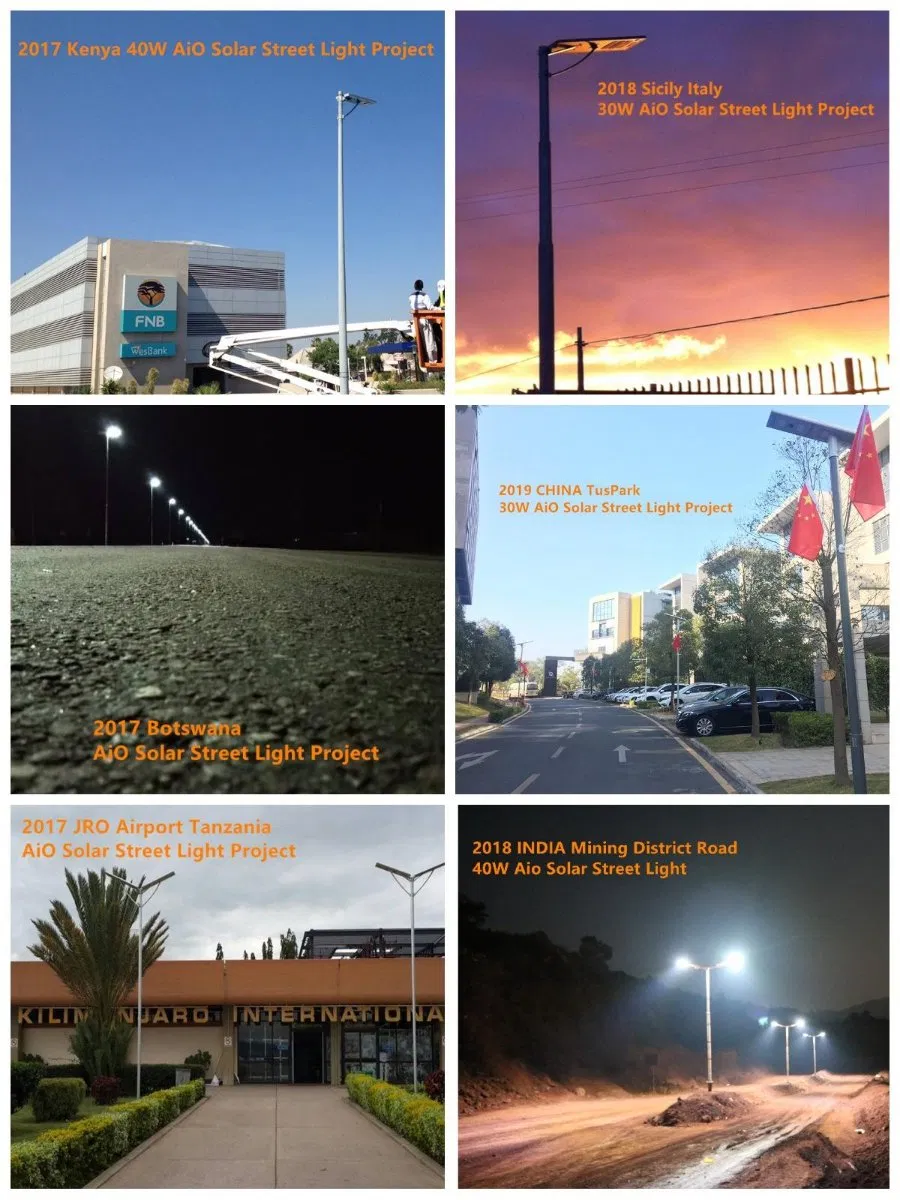

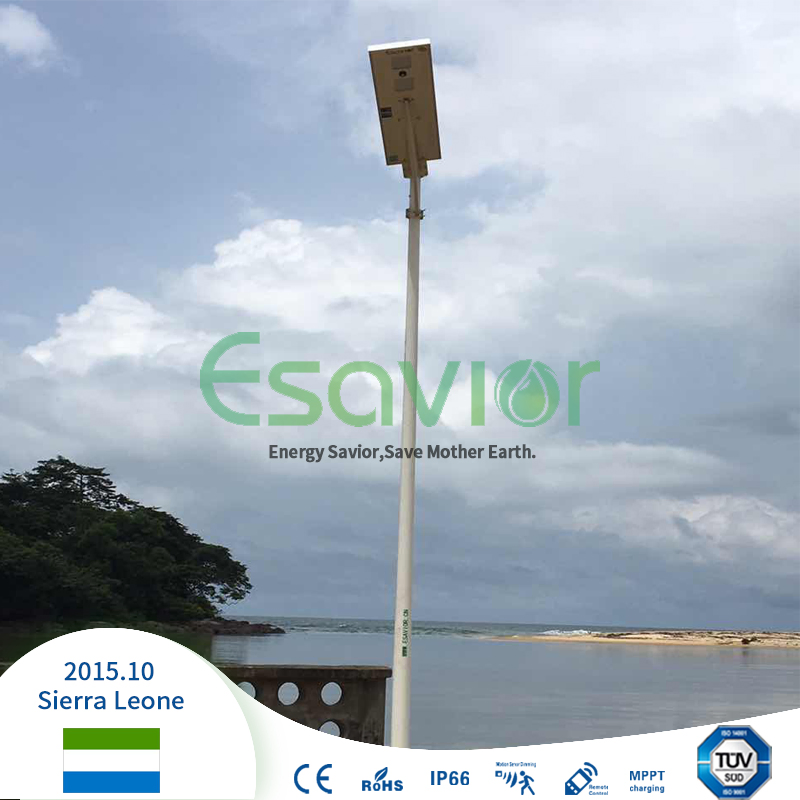

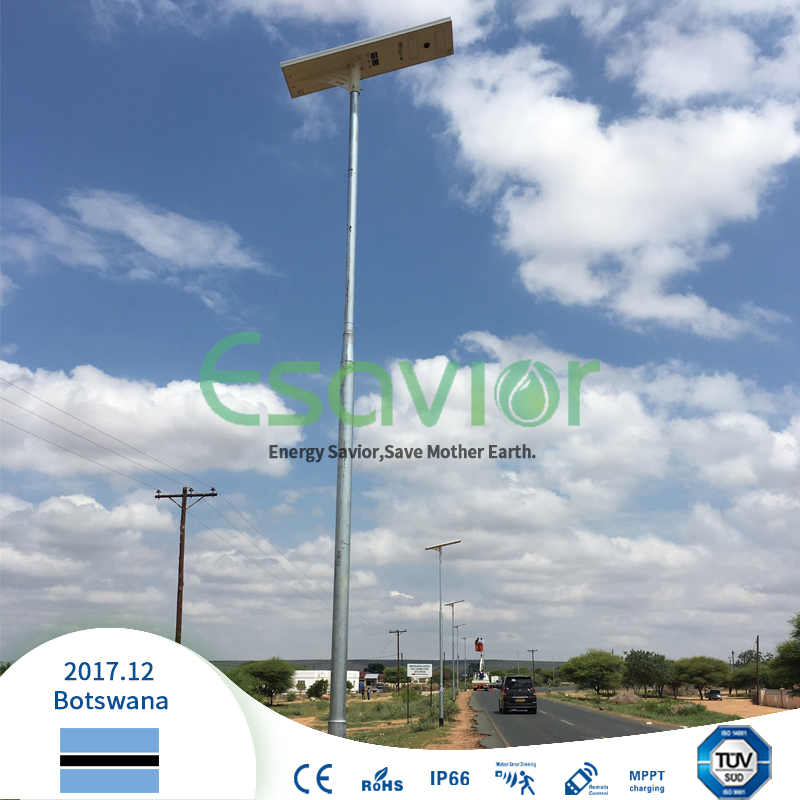

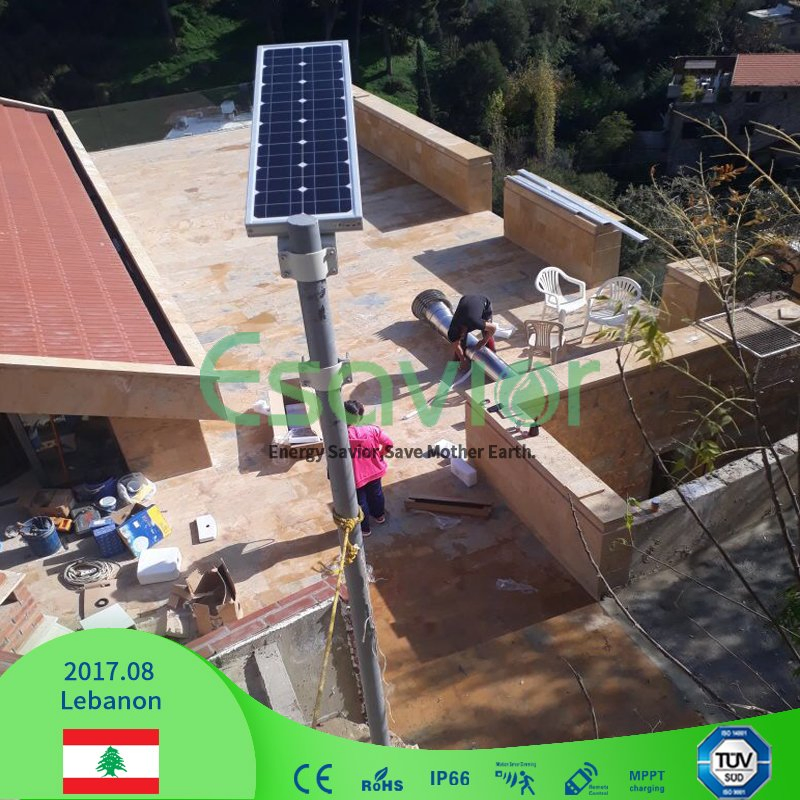

Project & Factory Show
Frequently Asked Questions
Does the lamp light on automatically?
Yes, it will light on automatically at darkness no matter which mode except "OFF".
Can I order samples for solar street light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
3 workdays for sample, 7-15 workdays for batch order (more than 100pcs).
Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products.
Can the lamp be used in strong wind environment?
Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti-rust corrosion.
What's the difference between Motion sensor and PIR sensor?
Motion sensor (radar) works by emitting high frequency electric waves and detecting movement up to 10 meters. PIR sensor detects temperature changes, usually within 3-5 meters. Motion sensors are more accurate and sensitive.
