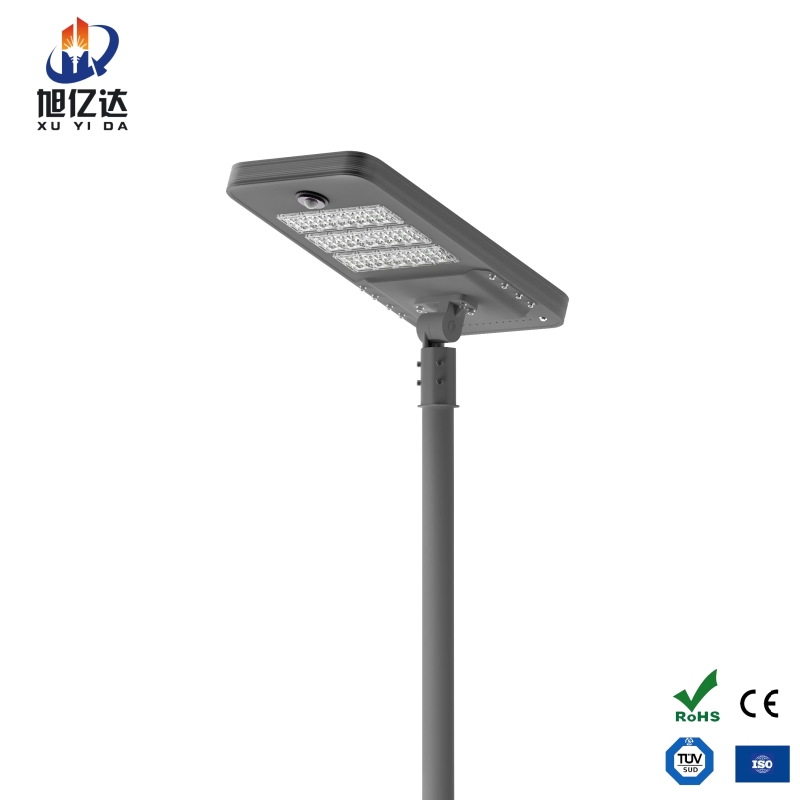

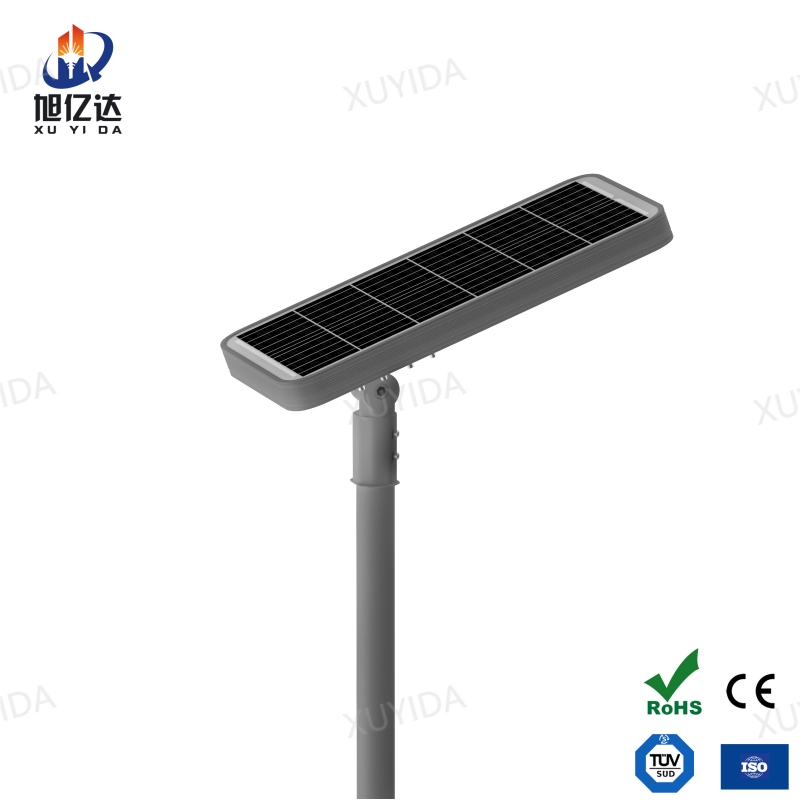

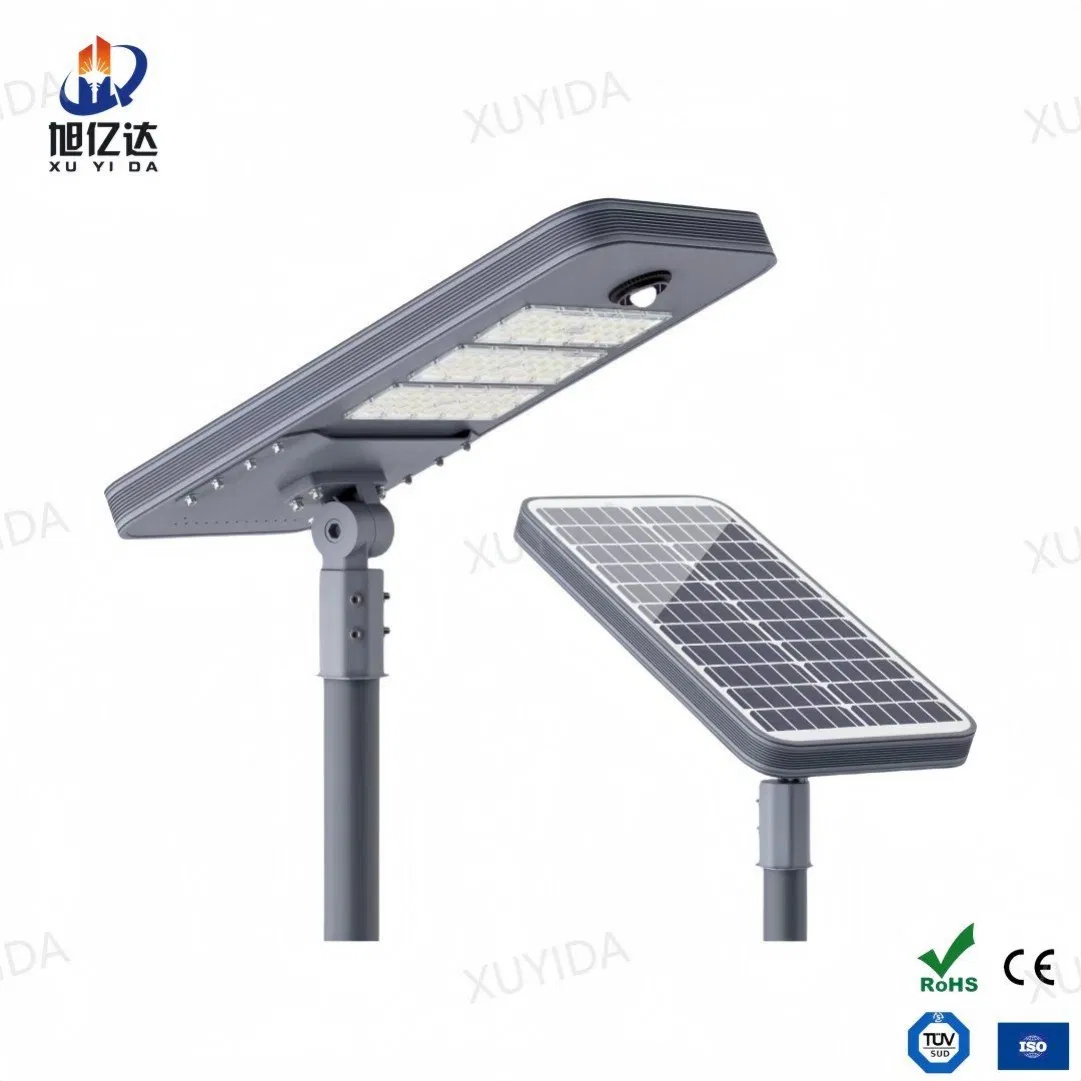

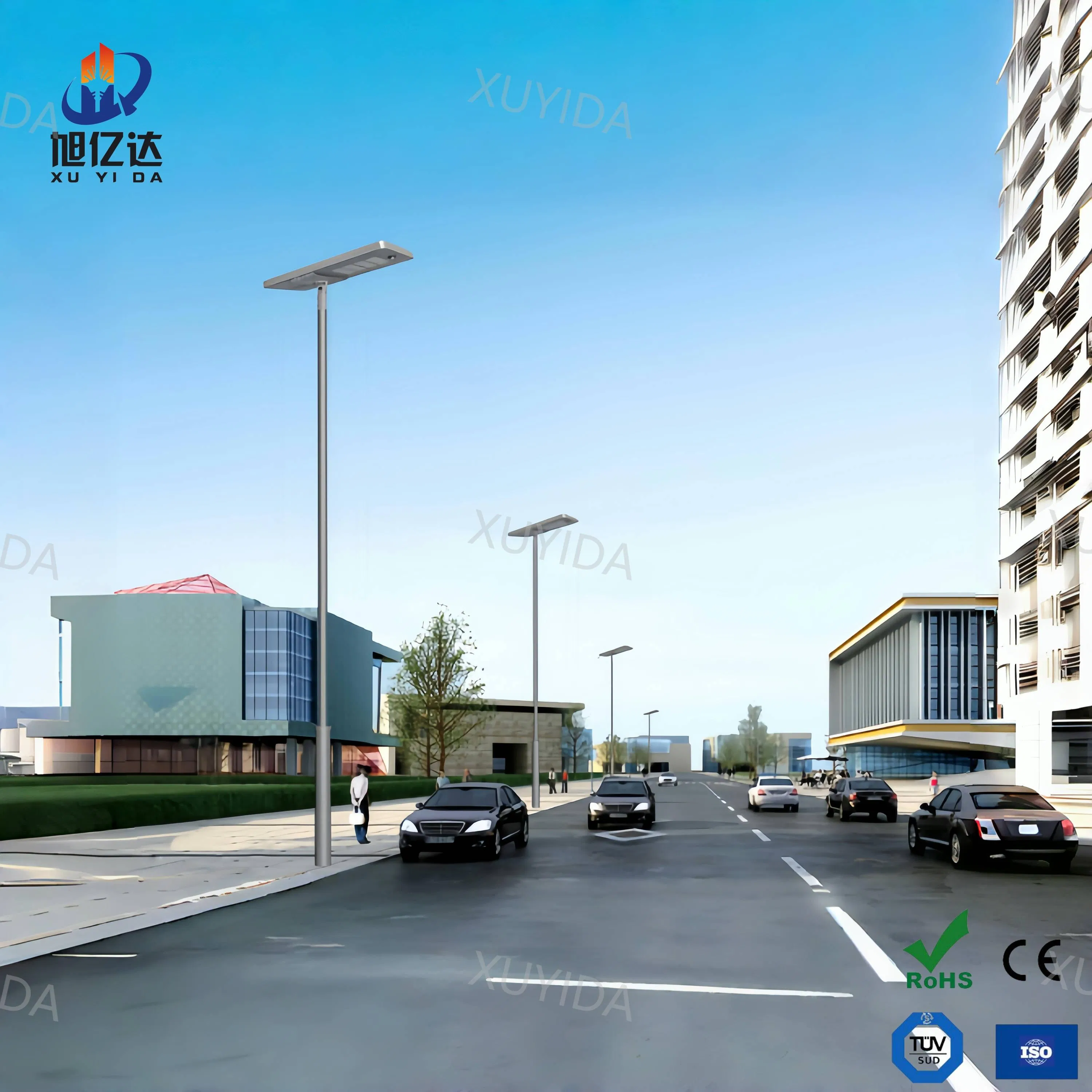

IP67 Outdoor Waterproof Lithium Battery Integrated 40W/60W/80W/100W/120W All-in-One with Camera LED Solar Street/Road Light

Customization: Available
Power Supply: Solar
Color Temperature: 2700K-6000K Customizable

Product Description

Basic Specifications
Model NO. XYD-0155
Lamp Body Material Aluminum Alloy
Power >200W
Application Square, Highway, Garden, Parking Lot
IP Rating IP67
Certification CCC, CE, CQC, RoHS, ISO, ISO9001 ISO14001 ISO45001
Input Voltage 220v
Light Efficiency 150-180lm/W
Warranty 5 Years
Battery Type Lithium Iron Phosphate Battery
Working Temp -30~+70°C
Product Overview

IP67 Outdoor Waterproof Lithium Battery Integrated All-in-One Solar Street Light with Camera (40W-120W)

Solar Street Light Overview

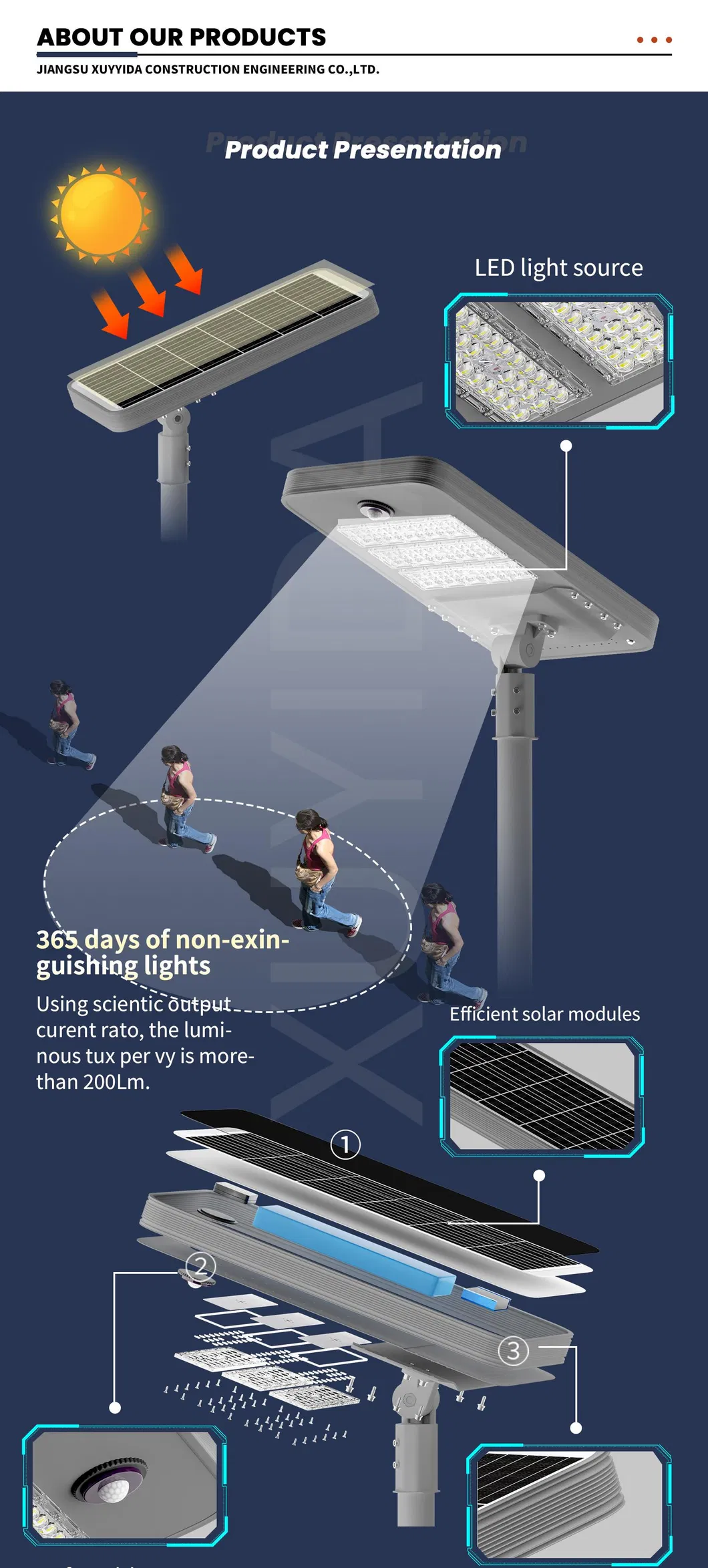

Solar Light Features

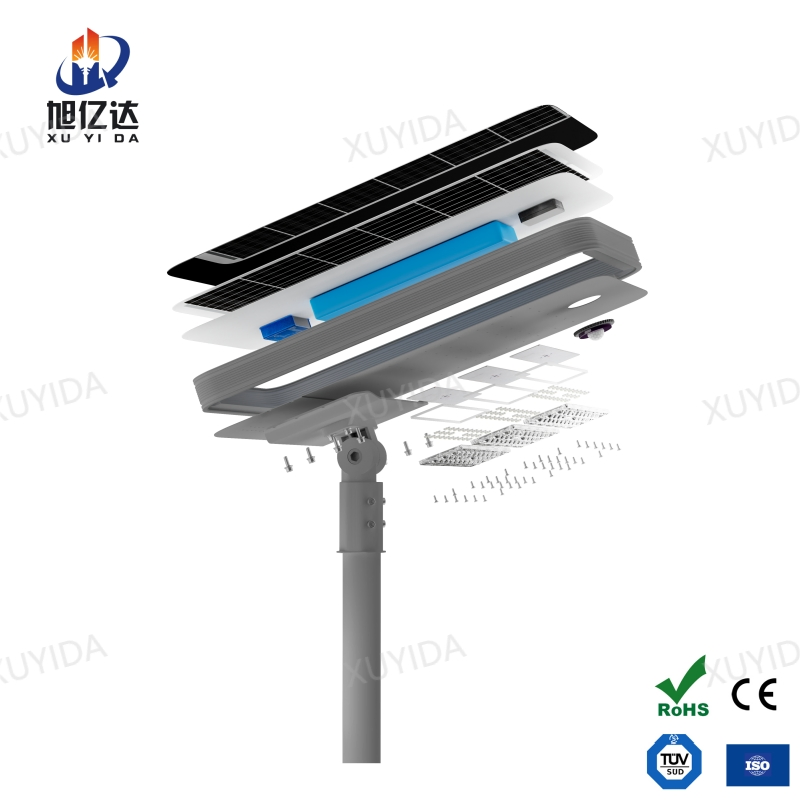

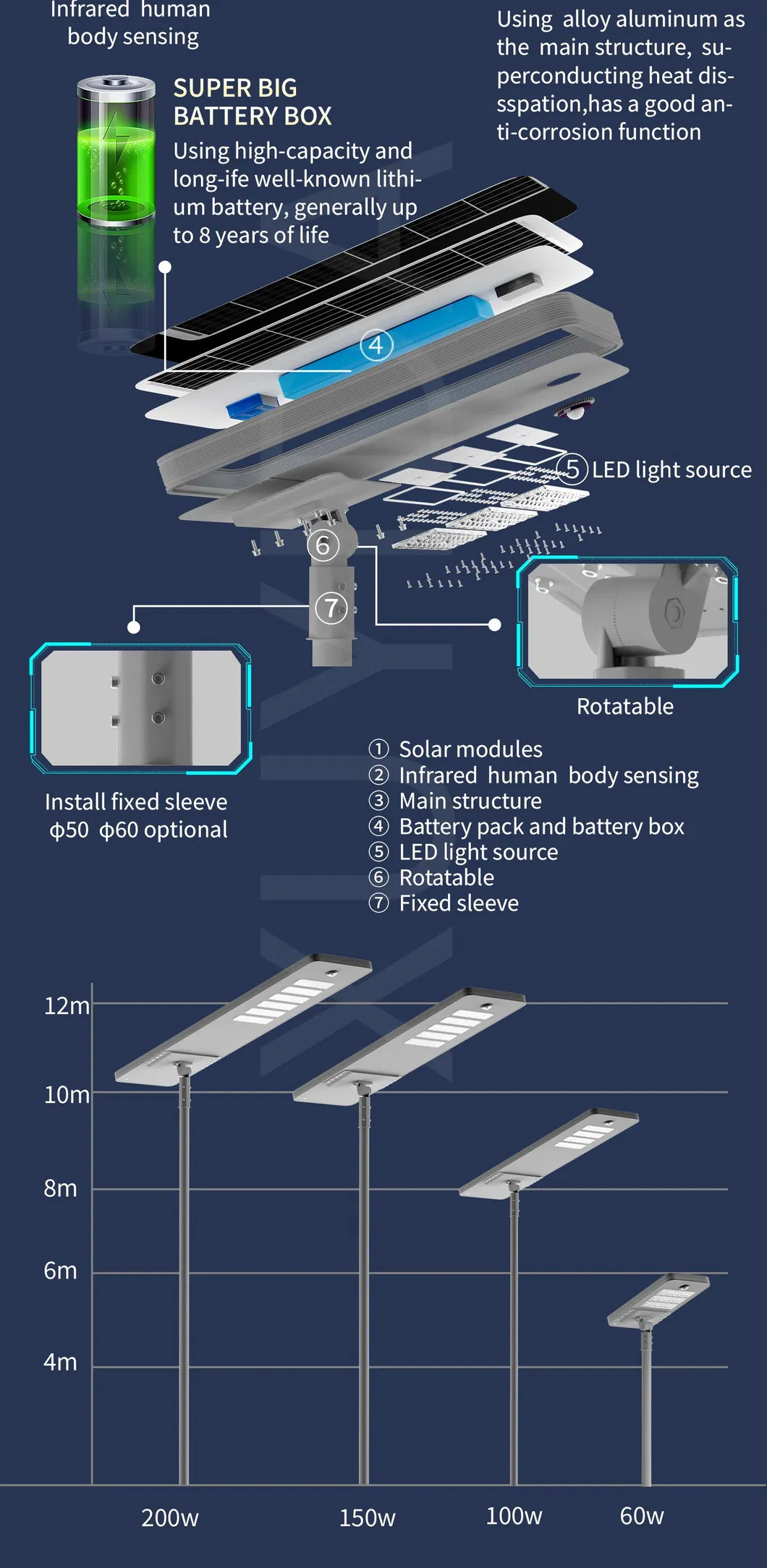

Technical Layout
Technical Parameters
LED Lamp High Power LED, High Brightness, High density LED Lens, Die-casting Aluminum
Power Range 30-300W
Light Efficiency 150-180lm/w
Lifetime >80,000 hours
Solar Panel Mono-crystalline silicon. A Quality High Efficiency 20.5%
Lifetime 25 years
Lithium Battery LifePO4 battery, Built-in LED lamp with charge controller, Fireproofing, Deep Cycle.
Capacity 12.8V 24Ah
Working Lifetime 5-10 years
Operation Work Time 8-10 hours per day, 3 days backup
Key Features & Working Principle
🔆
Energy Conversion: The integrated solar street lamp converts solar energy into electricity, charging the lithium battery during the day for night lighting.
🏃
PIR Intelligent Sensing: Equipped with human body infrared induction control. It automatically adjusts brightness based on human presence to maximize energy efficiency.
🛡️
Durable & Anti-Corrosion: Main body structure made of high-quality alloy material for excellent anti-rust and anti-corrosion properties.
🔧
Simple Installation: Modular integrated design, no wiring required, lightweight and easy to maintain or repair.
Installation 1
Installation 2
Installation 3
Details 1
Details 2
Details 3

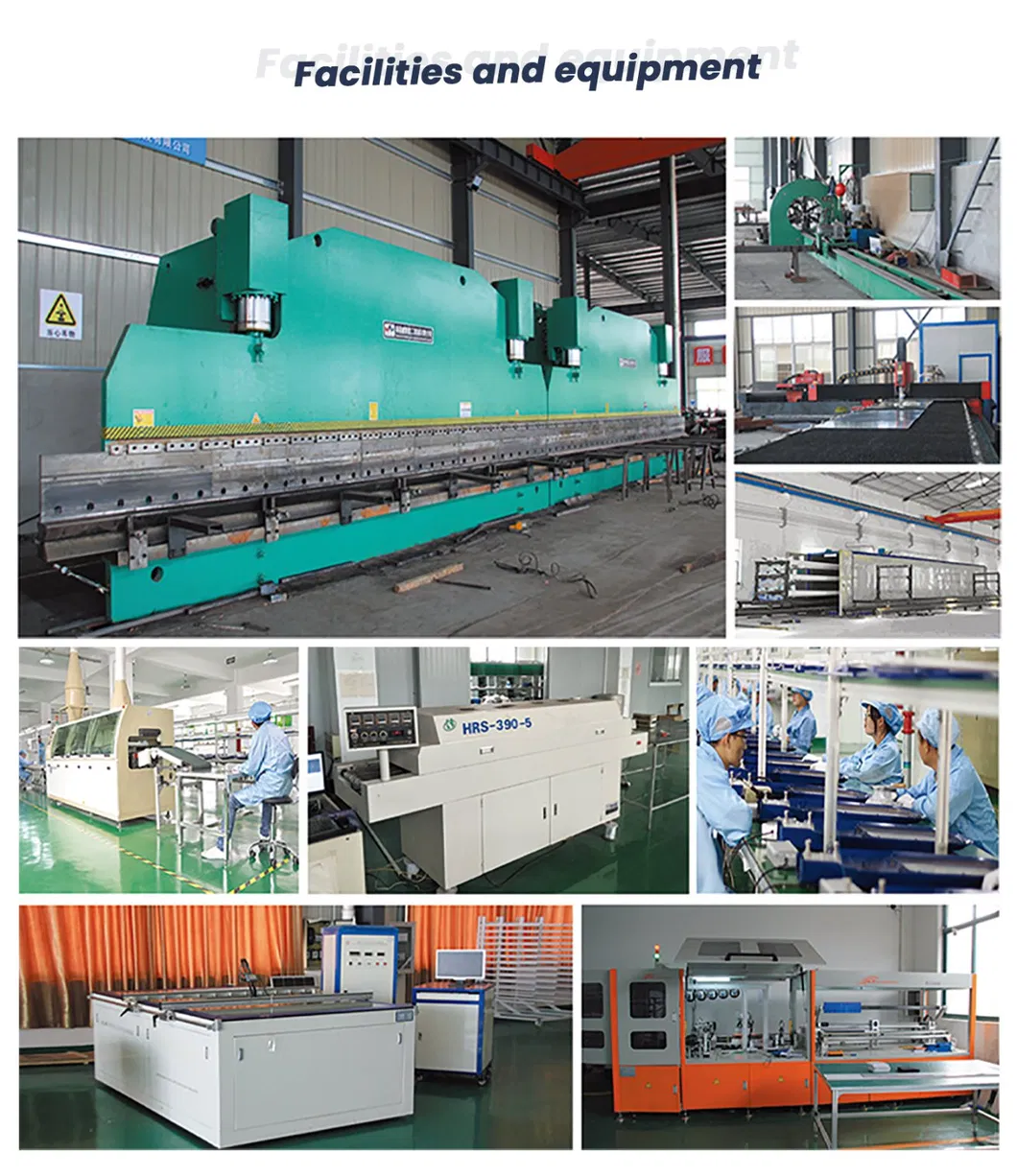

Production
Quality Control
Frequently Asked Questions
What is the IP rating for this solar street light?
The light is rated IP67, which means it is fully waterproof and dust-resistant, making it perfect for harsh outdoor environments.
How long is the warranty period?
We provide a 5-year warranty for the product, ensuring long-term reliability and support.
What type of battery is used and what is its lifespan?
The system uses a high-capacity Lithium Iron Phosphate (LiFePO4) battery with a lifespan ranging from 5 to 10 years.
Does the light work during rainy or cloudy days?
Yes, the system is designed with a backup capacity that allows for up to 3 days of operation even without direct sunlight.
Is professional wiring required for installation?
No, the integrated "All-in-One" design means no external wiring is required, allowing for quick and simple installation on poles or walls.
How does the PIR sensor work?
The PIR sensor detects movement. When someone is nearby, the light increases to full brightness; it dims when no one is present to conserve energy.
