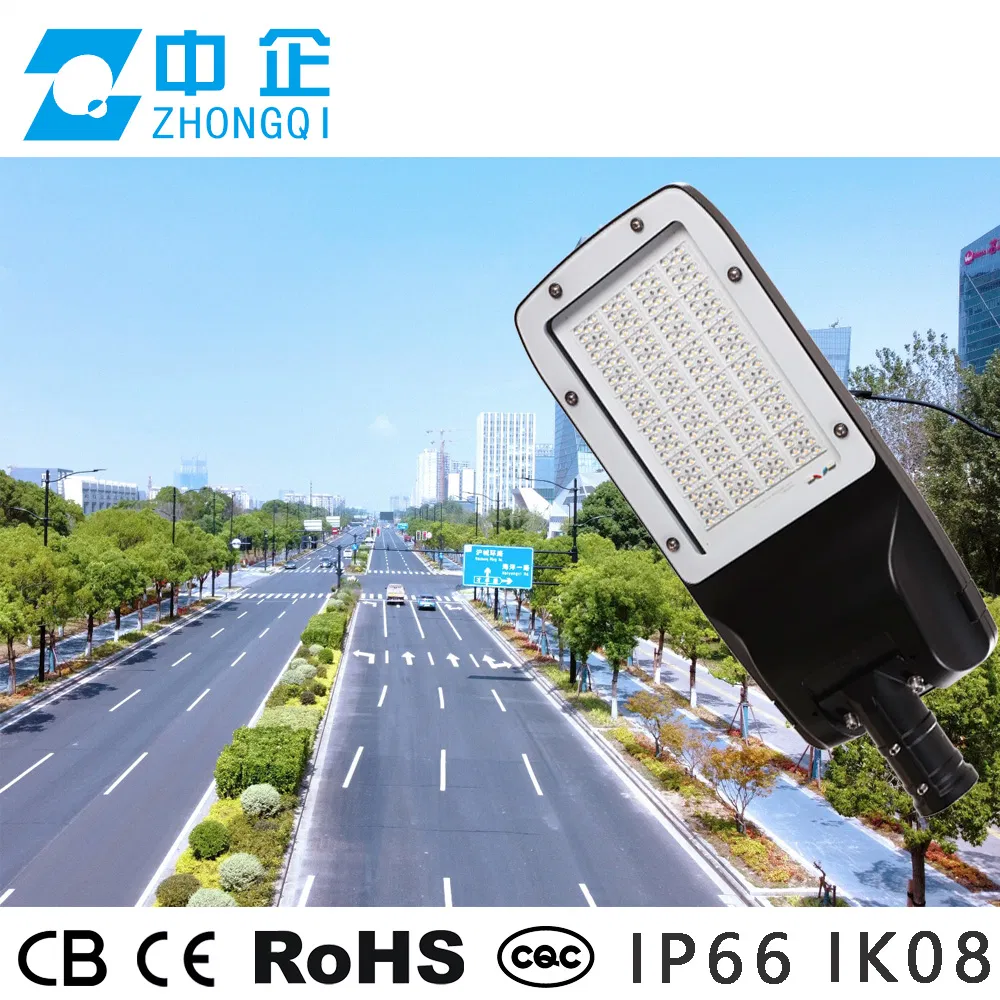

Die Casting Luminaire Roadway Lamp Hot Sale LED Outdoor Light IoT Solar Street Light with Smart LED Driver Motion Sensor 5050 LED Chip CE RoHS Lighting Poles

Basic Information

Model NO.:ZQL-L508A-M

Material:Die-Casting Aluminum

Power:70-300W (Up to 500W available)

Application:Highway, Square, Garden, Parking Lot, Airport

IP Rating:IP66

Input Voltage:90-305V

LED Chips:Osram / 5050 / 3030

Surface:Anti-Corrosion Powder Coating

Efficiency:120lm/W - 200lm/W

Beam Angle:Type II, III, IV, V

Protection:10kv / 20kv SPD

Certification:CE, RoHS, CB, DLC, ETL, FCC, SAA

L508 series designed for urban and street lighting with high architectural value.

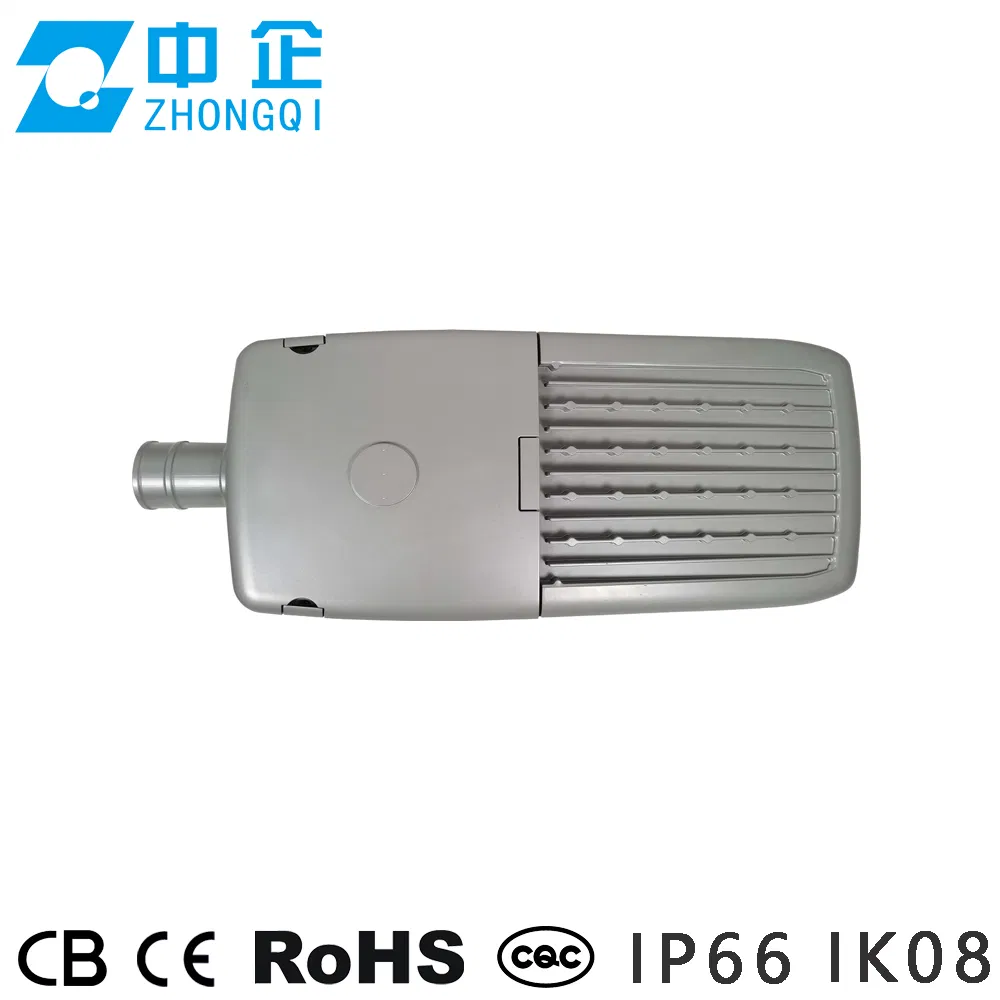

High-pressure die-casting housing provides superior impact and corrosion resistance.
3G vibration test approved under American standard ANSI C136.31.
Maximum luminous flux up to 180 lumens per watt; various CCT options available.
High light transmittance lens with multiple optical distributions (Type II, III, IV, V).
Tempered glass protection for PC lens against UV, moisture, and dust.

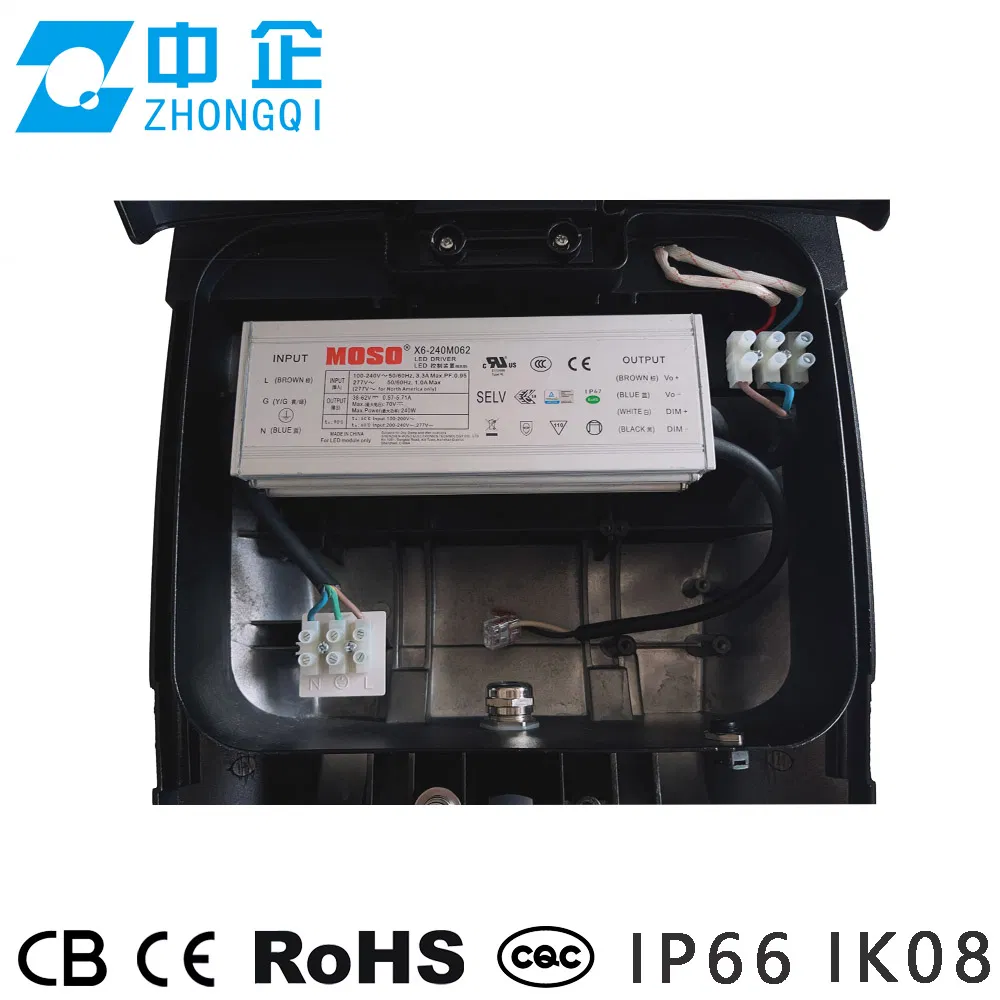

IP66 driver chamber, compatible with IOT Smart System for modern Smart Cities.

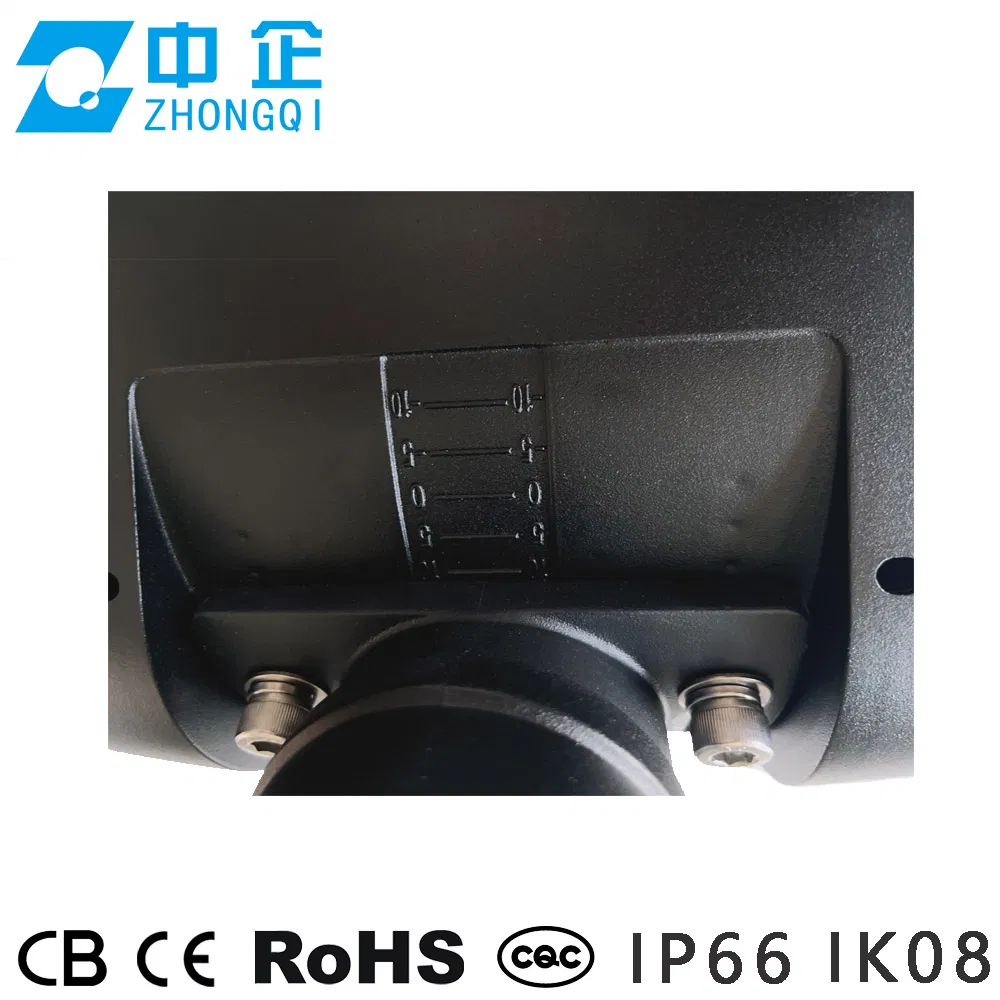

Dual mounting options: supports both horizontal and vertical installation.
Toolless design allows for extremely easy installation and maintenance.

Input Voltage	Frequency	Power Factor	CRI	CCT	Lifetime	IP Grade	Pole Diameter
AC90-305V	50/60Hz	0.95	>70	2700-6500K	>50000H	IP66	48-60mm

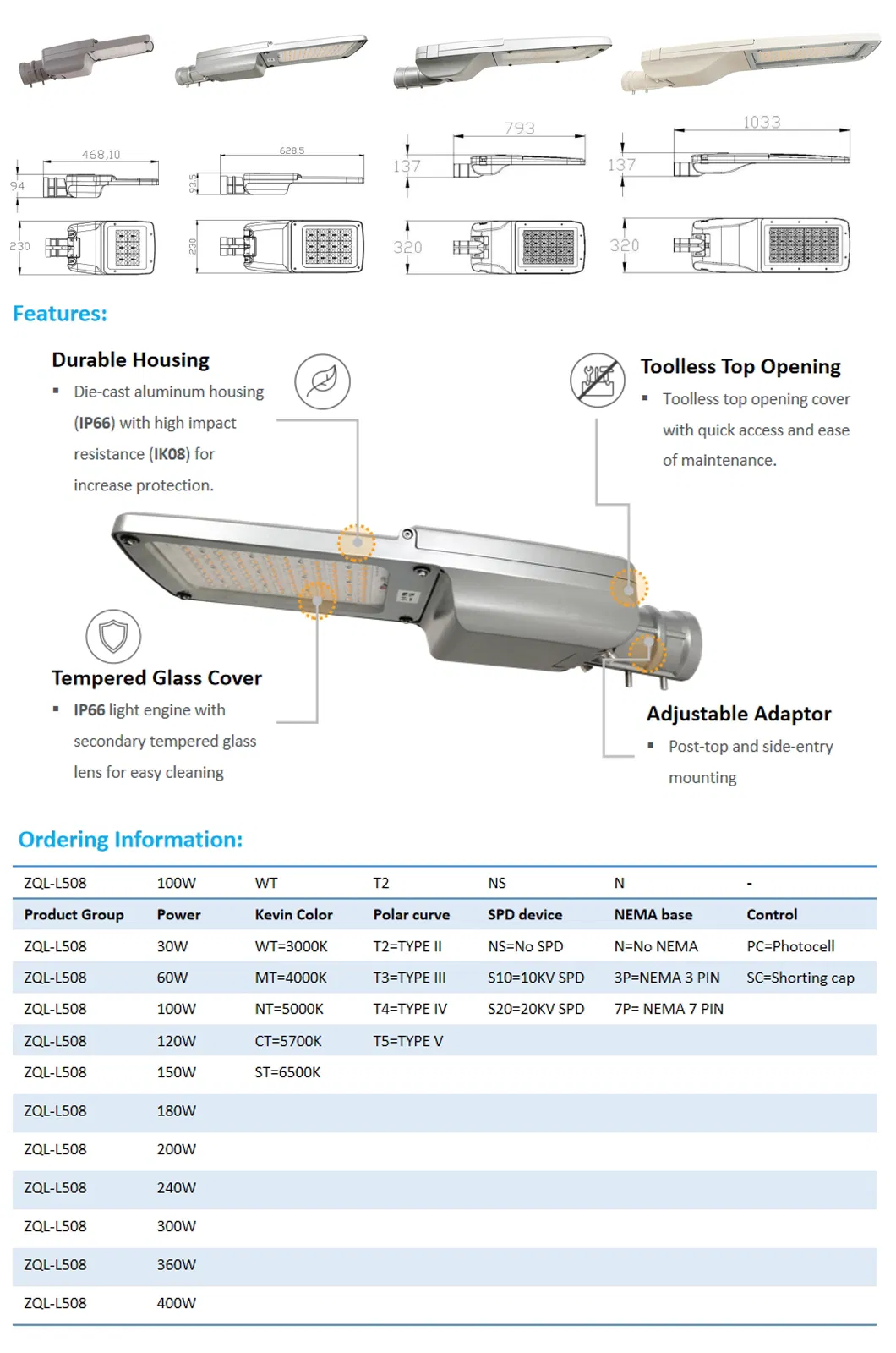

Product Model	Power(W)	Premium LPW	Standard LPW	Product Size(mm)	Packaging Size(mm)
ZQL-L508	30W / 50W	150 lm/W	130 lm/W	46923094	500175140
ZQL-L508	100W / 150W / 200W	150 lm/W	130 lm/W	62823094	690230140
ZQL-L508	250W / 300W	150 lm/W	130 lm/W	795320140	840380180
ZQL-L508	400W / 500W	150 lm/W	130 lm/W	1035320140	1080380180
