We provide Engineering Work for specific projects. According to your brightness requirements and calculations, we can help in designing the location and orientation of the solar light poles to achieve optimal performance.

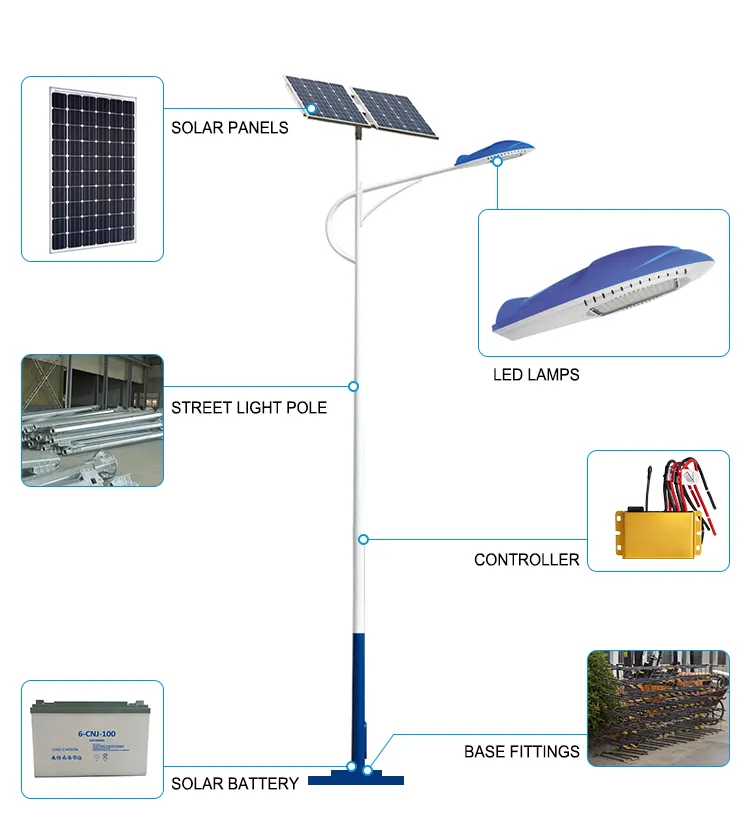

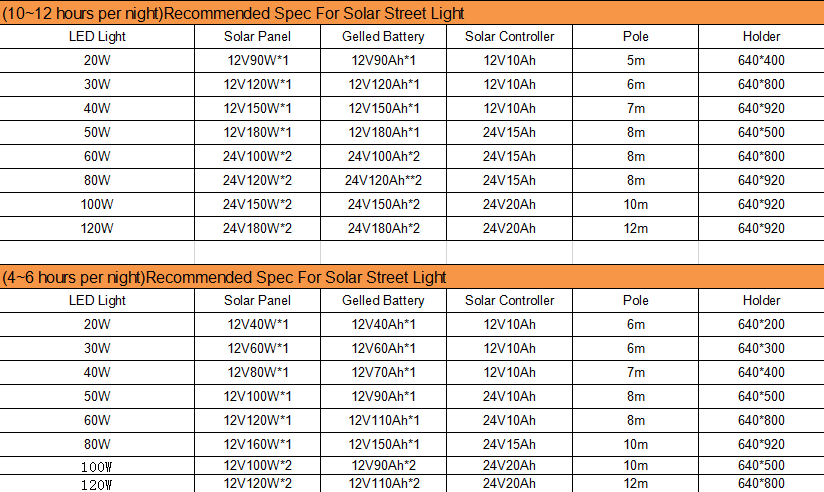

| Component |
Technical Specifications |
| Solar Panel | 100W/18V, Mono or Poly, Conversion Efficiency: 17% - 18.5% |
| Light Source | 30W/12V, Bridgelux LEDs, 3600lm |
| Pole | 6M, Q235 steel, Hot dip galvanized and powder coated |
| Solar Controller | 12/24V/10A, IP68, Multi-stage output (100%, 75%, 50%, 25%) |
| Battery | 12V/100AH, Gel cell deep cycle or Lithium available |
| Wind Resistance | 130km/h |

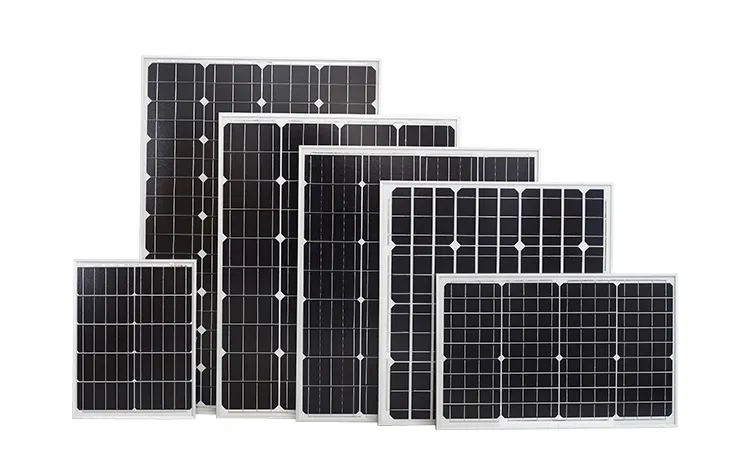

Solar Panel: A GRADE high efficiency solar panels with hydrophobic layer for minimal surface dust. 20 years power generation capacity.
Advanced Battery: Free maintenance Gel deep recycle or high-temp resistant Lithium batteries. Integrated safety designs.
Smart Controller: PWM & MPPT available with over-charging and reverse-connection protection. Lifespan 5-10 years.
LED Source: High power LED 20W-120W, IP65 rated, Die-casting aluminum material for superior heat dissipation.
?
Frequently Asked Questions
How long is the lifespan of this solar street light?
The LED light source has a lifespan of approximately 50,000 hours, and the solar panels come with a 20-year power generation capacity guarantee.
Can the light work during rainy or cloudy days?
Yes, the system is designed with battery backup capacity that allows for up to 3 days of continuous operation without sunshine.
What is the charging time required for a full charge?
Under standard sunlight conditions, the battery requires approximately 8 hours to reach a full charge.
Is the system waterproof for outdoor use?
Absolutely. The light is IP65 rated, and the solar controller is IP68 rated, ensuring full protection against rain and dust.
Do you offer customized solutions for specific lighting requirements?

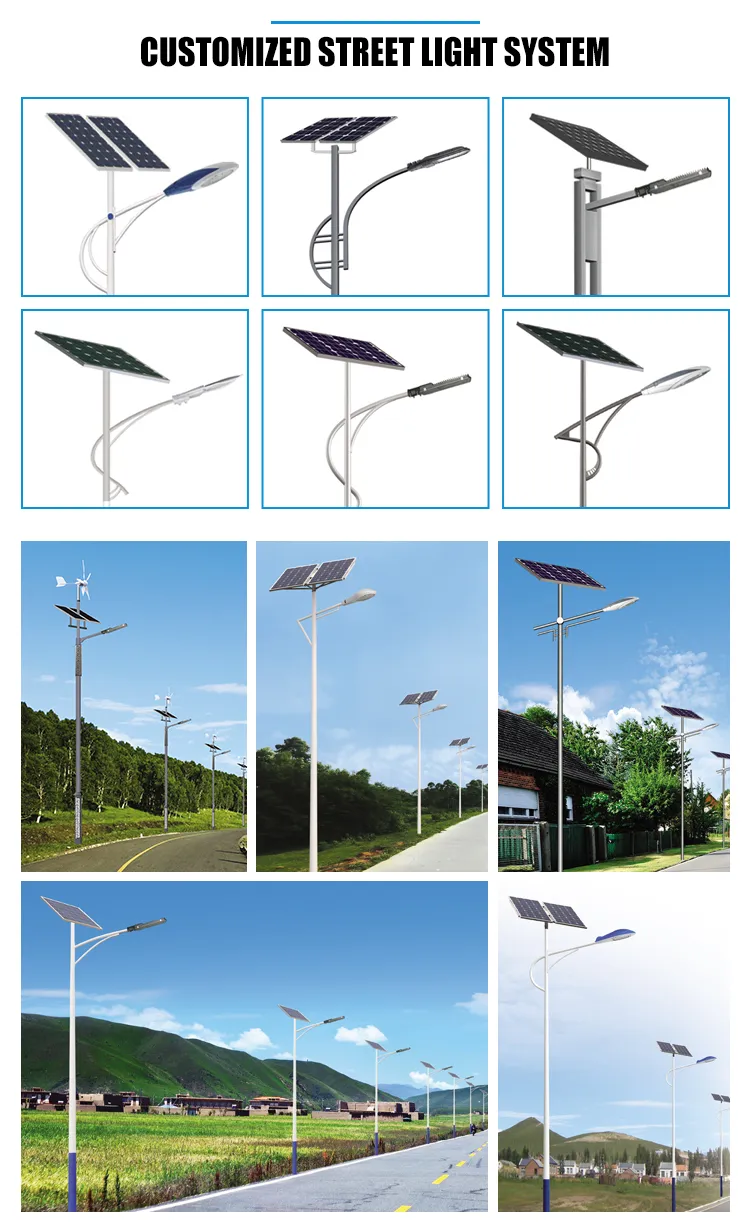

Yes, we provide engineering simulation and can adjust pole height, LED power (20W-120W), and battery capacity to suit your specific project needs.
What kind of maintenance is required?
The system uses maintenance-free Gel or Lithium batteries. Periodic cleaning of the solar panel surface from heavy dust is recommended for maximum efficiency.
