Material
Aluminum, Tempered Glass, PC Lens
Power Range
70-300W (System up to 500W)
LED Chips
Osram 5050 / 3030 / 3535 / 7070
Luminous Efficacy
120lm/W - 200lm/W
Beam Angle
Type II, Type III, Type IV, Type V
Surge Protection
10kv / 20kv SPD
Certification
CB, DLC, CE, RoHS, SAA, ETL, FCC

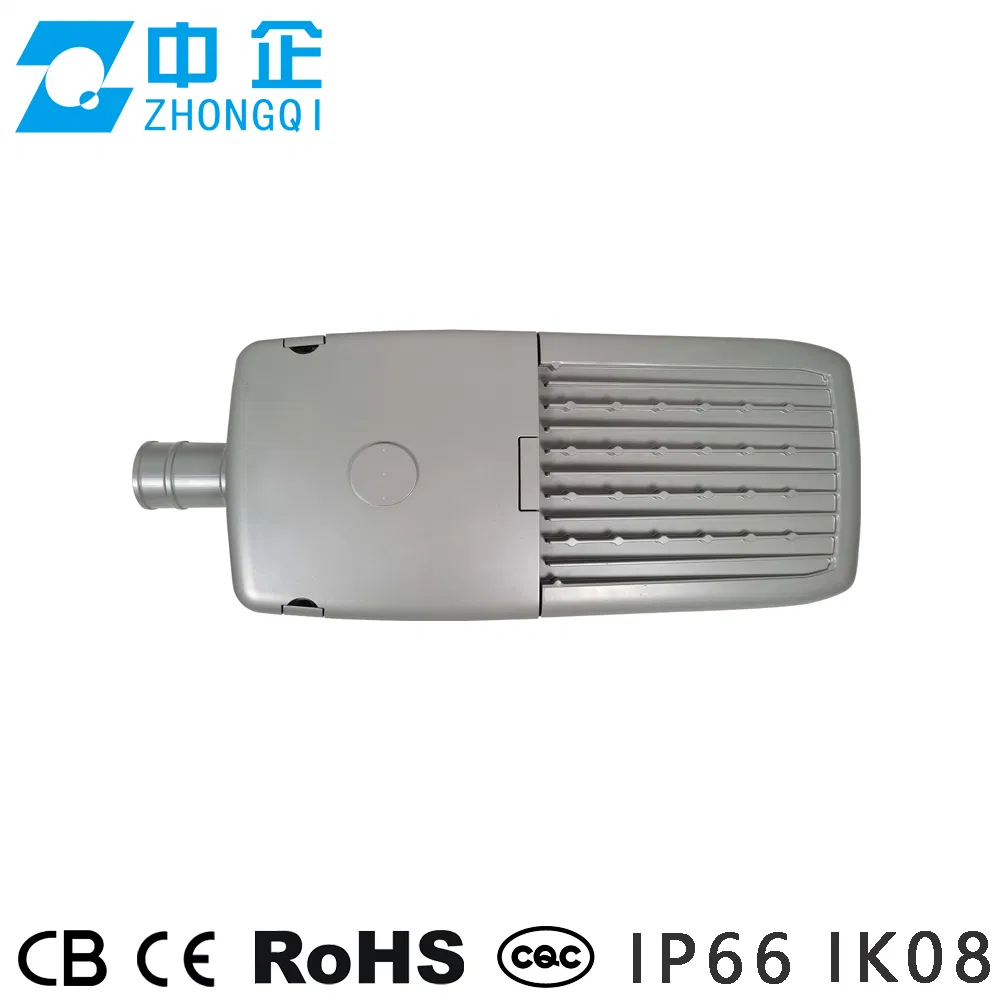

- ✔ High pressure die casting housing for superior impact and corrosion resistance.
- ✔ 3G vibration test approved under American standard ANSI C136.31.
- ✔ Maximum luminous flux up to 180-200 lumen per watt.

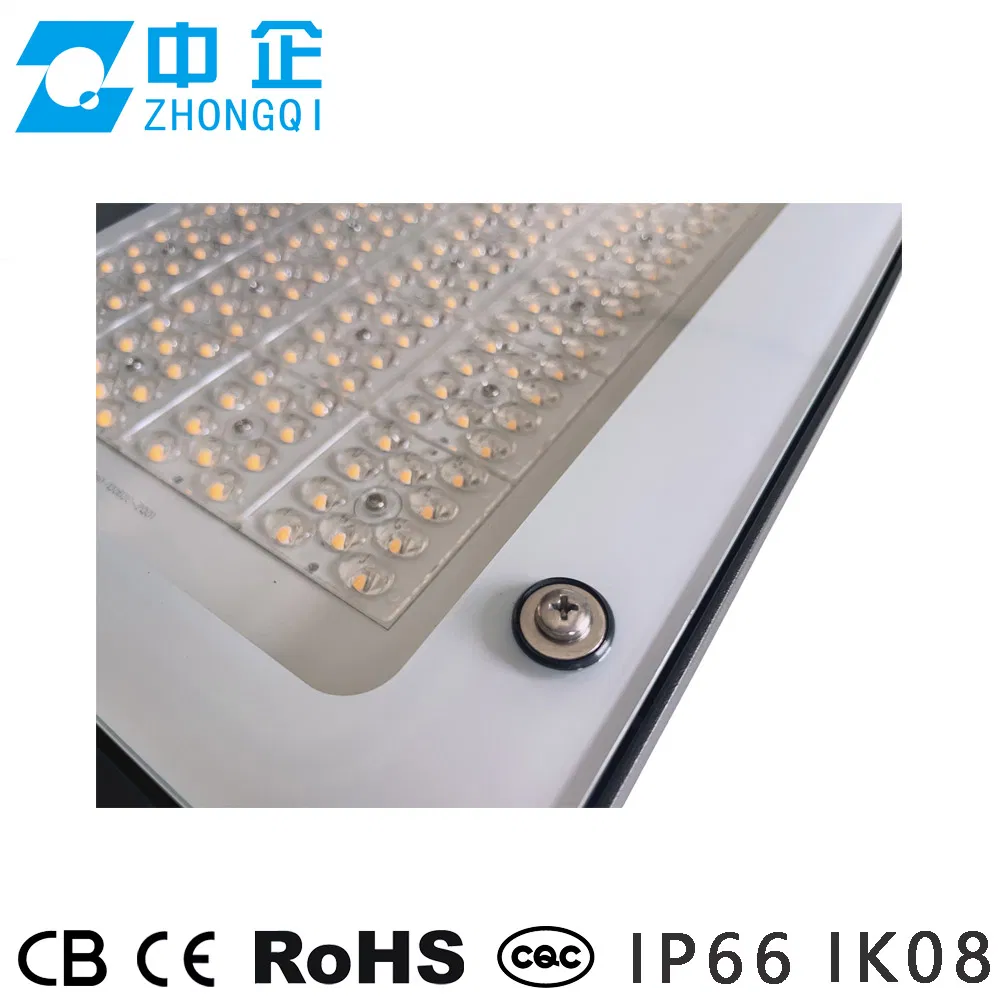

- ✔ Tempered glass protection for PC lens against UV, moisture, and dust.
- ✔ IP66 driver chamber compatible with IOT Smart City systems.
- ✔ Toolless operation design for easy installation and maintenance.

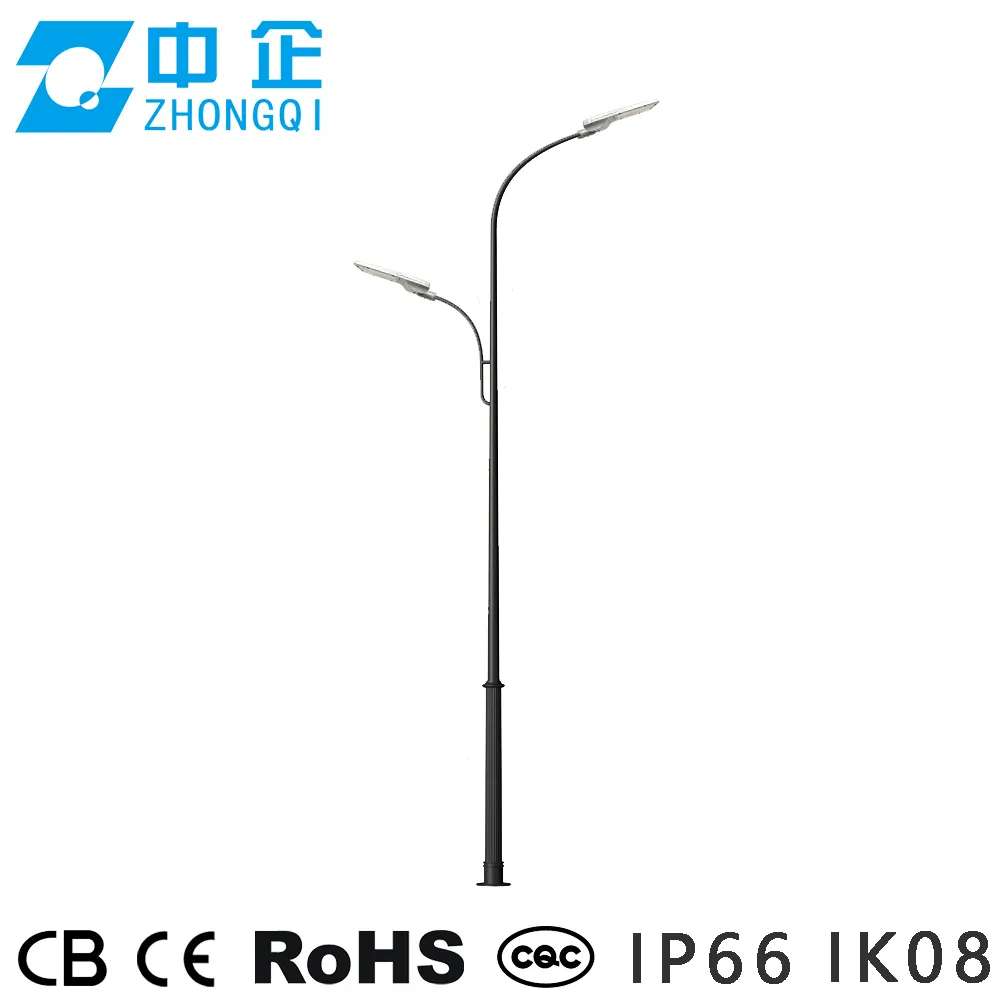

- ✔ Horizontal and vertical mounting options with adjustable pole diameter (48-60mm).

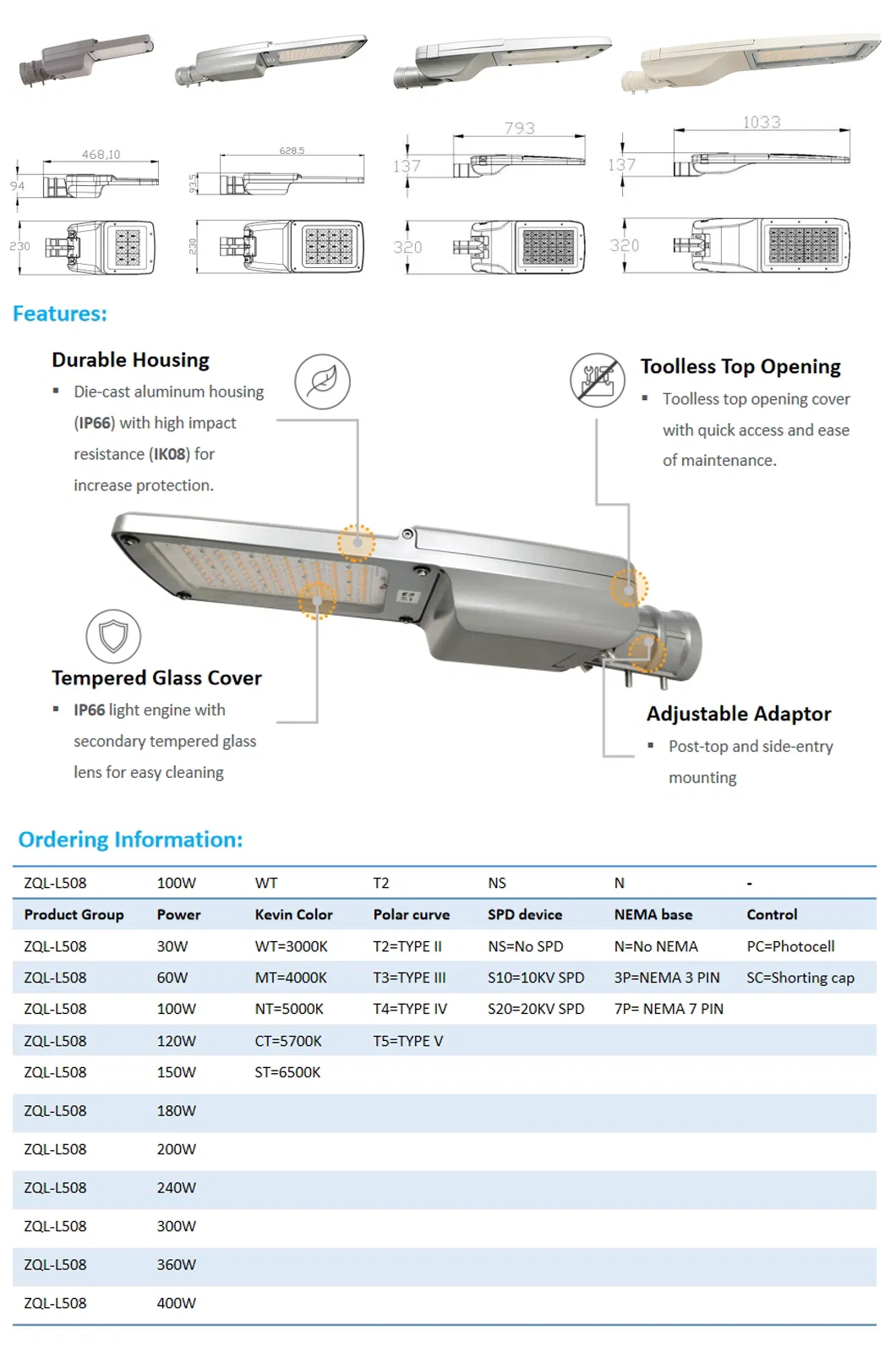

| Model |
Power(W) |
Premium LPW |
Standard LPW |
N.W.(kg) |
Product Size(mm) |
| ZQL-L508 | 30W | 150 lm/W | 130 lm/W | 3.40 | 469*230*94 |
| ZQL-L508 | 50W | 150 lm/W | 130 lm/W | 3.50 | 469*230*94 |
| ZQL-L508 | 100W | 150 lm/W | 130 lm/W | 4.50 | 628*230*94 |
| ZQL-L508 | 150W | 150 lm/W | 130 lm/W | 4.70 | 628*230*94 |
| ZQL-L508 | 200W | 150 lm/W | 130 lm/W | 4.90 | 628*230*94 |
| ZQL-L508 | 300W | 150 lm/W | 130 lm/W | 9.50 | 1035*320*140 |
| ZQL-L508 | 500W | 150 lm/W | 130 lm/W | 12.50 | 1035*320*140 |
Frequently Asked Questions
Can I have a sample before quantity orders?
Yes, we welcome sample orders for testing and quality approval.
What about the lead time for production?
Samples typically take 3-5 days, while quantity orders require 25-30 days depending on the volume.
Is ODM or OEM service accepted?
Yes, we offer professional ODM and OEM services to meet your specific requirements.
How long is the warranty for your products?
We offer a 2-5 year warranty on our products depending on the configuration chosen.
What are the accepted payment terms?
Standard terms are a 30% TT deposit, with the remaining 70% balance due before shipment.
Do you provide lighting simulation services?
Yes, we provide professional Dialux light simulation services to help you plan your lighting projects effectively.
