20W off-Grid Solar Lighting System for Home Use Solar Power System

1 / 5

20W off-Grid Solar Lighting System for Home Use Solar Power System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

AS-20W

Application

Home, Industrial, Commercial

Specification

Normal, 441*225*336mm

Output Voltage

AC 220V

Solar Panel

20W (18V)

Battery

DC 12V 12Ah

Bulbs

2PCS DC12V

Warranty

3 Years

Capacity

50,000 Pieces/Year

Package

Standard Export Carton

Product Description

AS 20W-12AH Solar Home Lighting Kits

The system allocates high capacity battery. Please refer to the lighting performance chart below for usage duration when fully charged.

Working Condition	Lighting Time (Fully Charged)
DC Output	100 Hours
AC Output	8 Hours (Including Electrical Fan, Notebook, or LVD TV)

System Charging Instructions

Place the Solar Panel in direct sunlight to receive the strongest exposure.
Plug the panel cable into the marked socket. A slow twinkling indicator light confirms normal charging.

Mobile Phone Charging

Plug the USB cable into the designated port.
Connect your mobile device through the appropriate connector.

Technical Specifications

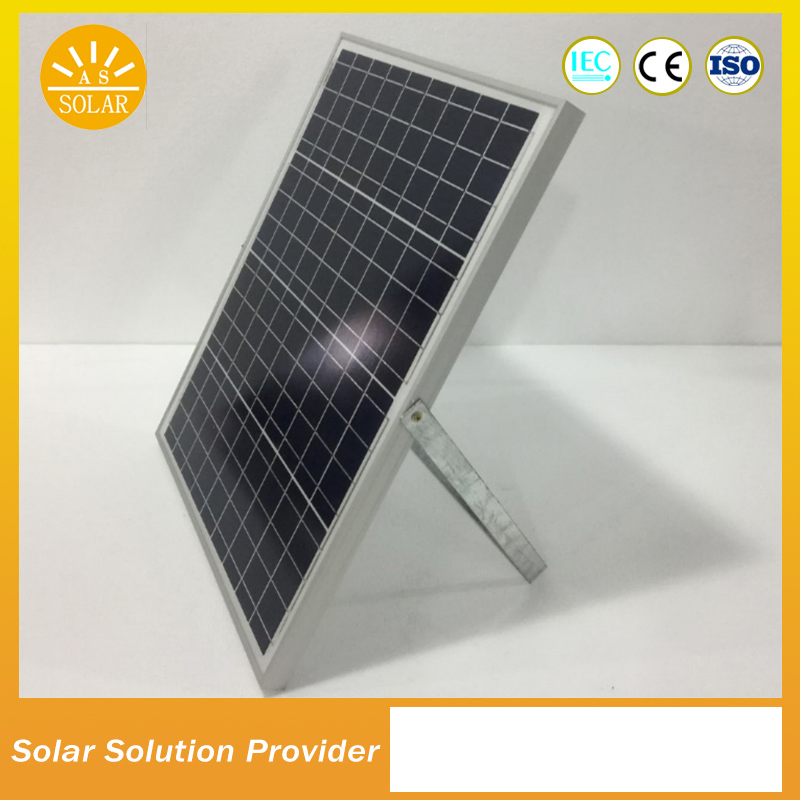

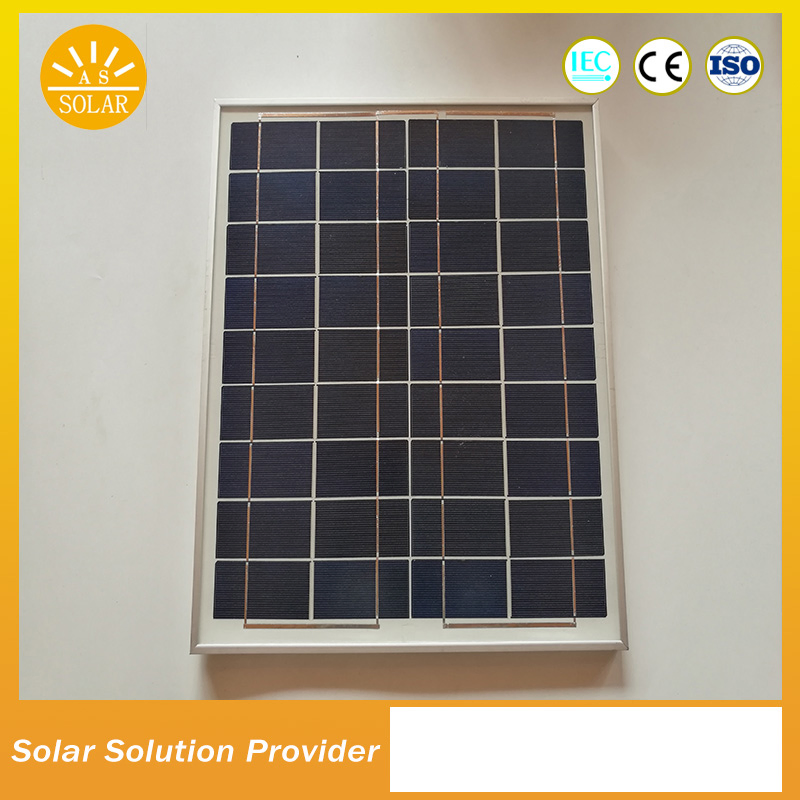

Solar Panel	20W/18V (Vmp: 17.8V; lmp:1.13A; Voc:21.6V; Isc:1.21A; Weight:2.2kg)
Panel Cable	5 Meters Length
Battery	12V/18AH Lead-acid Maintenance-Free
Bulbs	6 Pcs LED Bulbs
Bulb Cable	3*7 Meters Length
USB Output	5.2V / 1000mA
Carton Size	370210270mm
Weight	Net: 5.1kg / Gross: 6.5kg

Battery Maintenance & Tips

Do not keep the battery in an over-discharged status for extended periods.
Charge the battery at least once every 3 months, even if not in use.
When replacing, only use a 12V lead-acid battery under professional guidance.

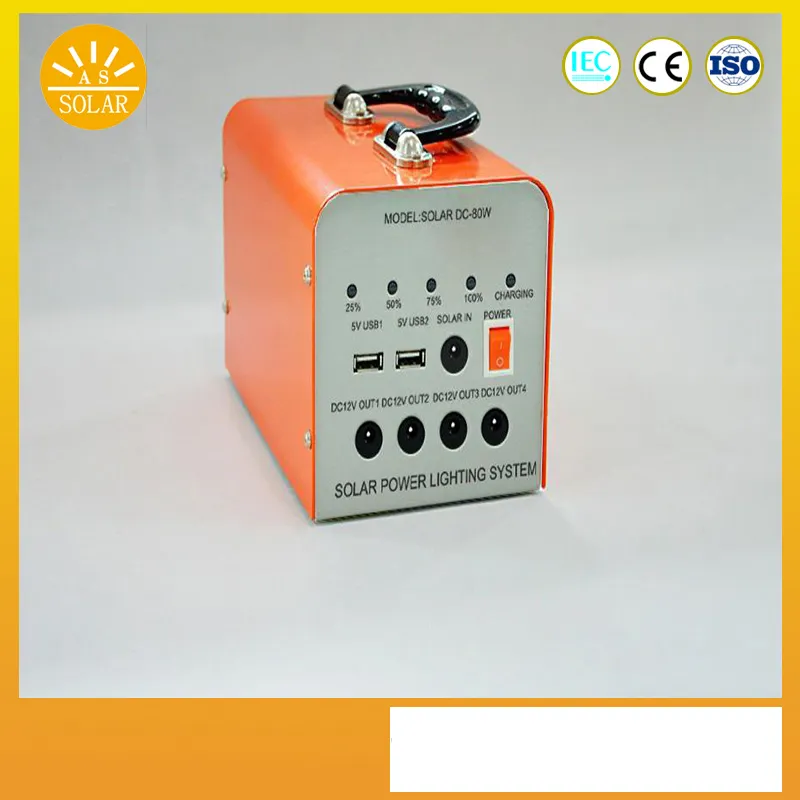

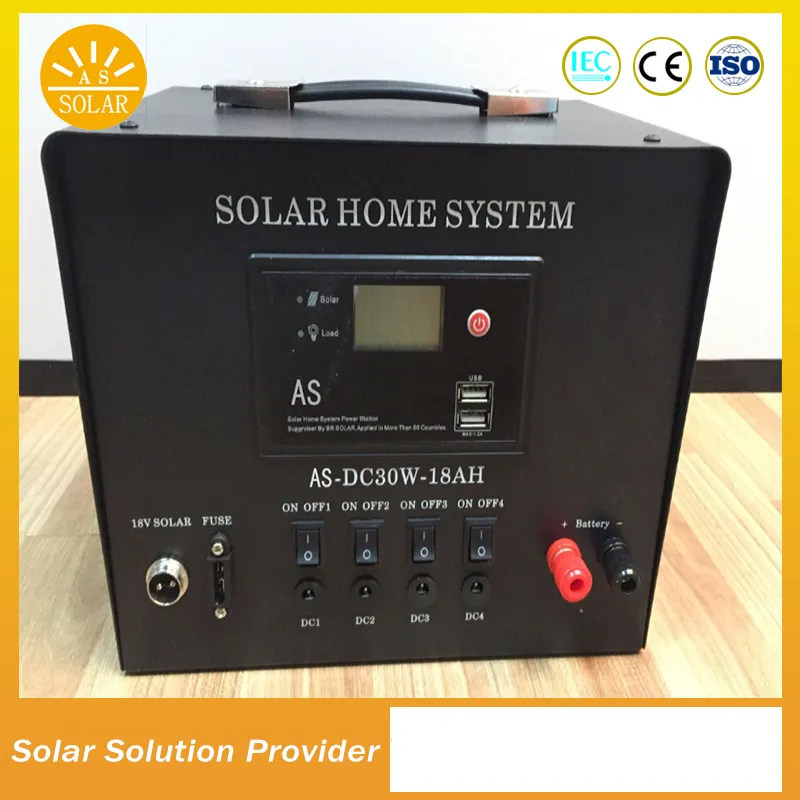

Main Components

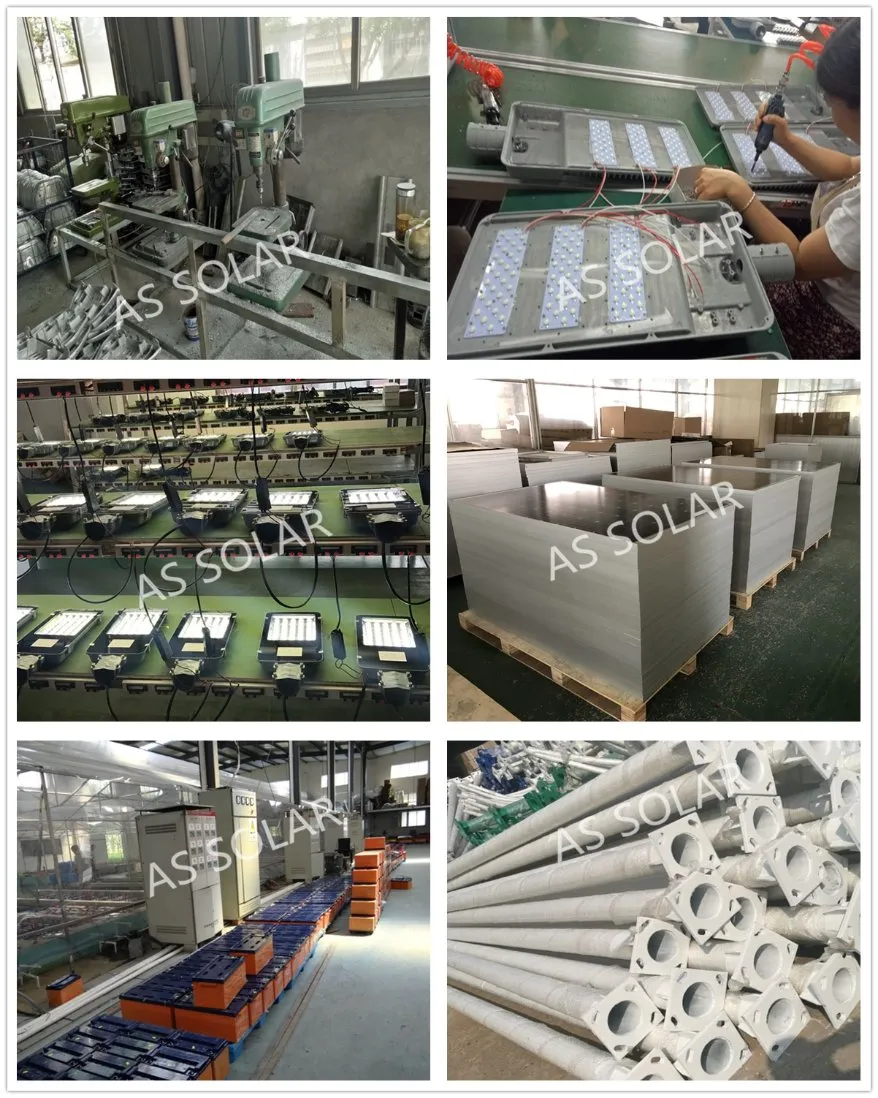

Production and Testing

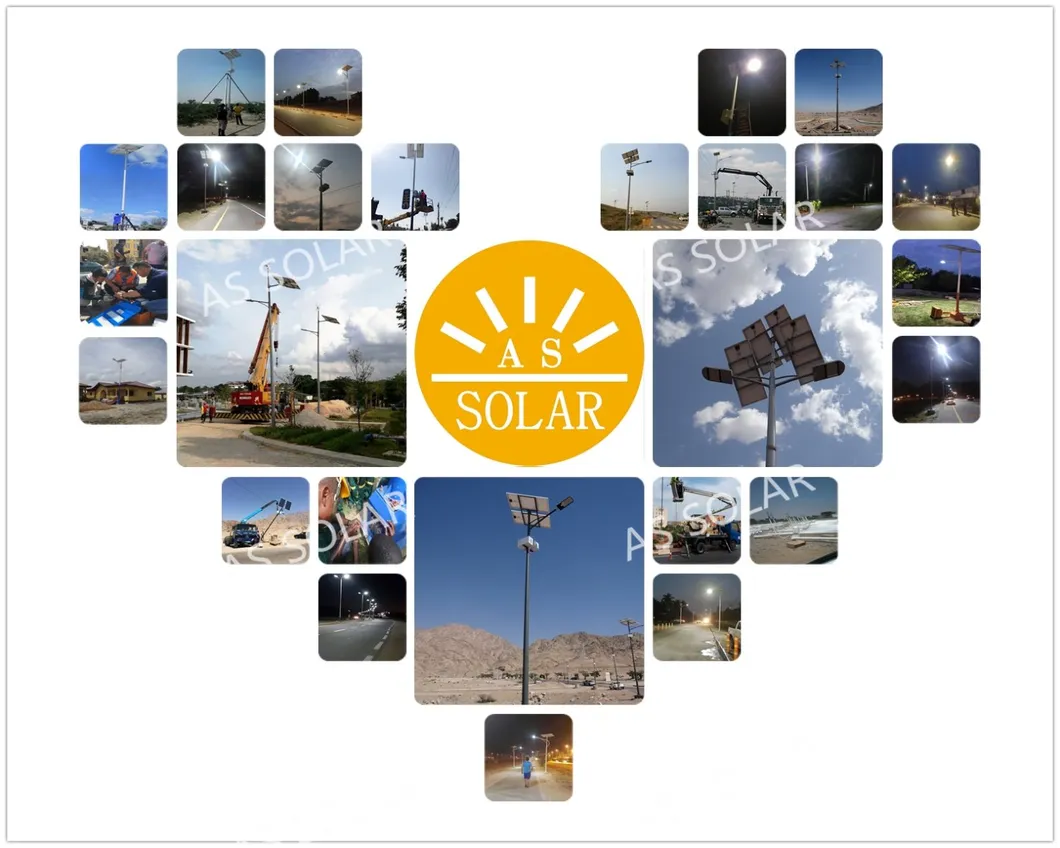

Global Projects

Our solar products have been successfully applied in more than 110 countries, including UN and NGO projects. Quality is our culture.

Quality Certificates

Our Product Range

Solar Street Lights & LED Street Lighting (15W-150W)
Solar Garden & Landscape Lights (5W-30W)
Solar Battery: 4.5Ah-250Ah/12V, 200Ah-3000Ah/2V
Solar Panels & Modules (5W-360W Poly & Mono)
Solar Controllers (5A-60A, IP65/IP68 Rating)
Solar Home Systems/Kits with Lighting, Fan, TV, Fridge, and USB Functions

Payment Terms and Delivery

Method	Terms	Condition
T/T	30% Advance, 70% before delivery (EXW/FOB) or against B/L (CFR/CIF)	Standard Order
L/C	At Sight	Total Amount Above USD 100,000
West Union / PayPal	100% Advance	Total Amount Less Than USD 1,000
Delivery Time	15-20 Working Days after receiving down payment

Frequently Asked Questions

Q: How long does the lighting last on a full charge? A: The system provides up to 100 hours of DC lighting or approximately 8 hours when using AC appliances like fans and notebooks.

Q: Can I use this system to charge my mobile phone? A: Yes, it features a 5.2V/1000mA USB output port specifically designed for charging mobile phones and other USB devices.

Q: What is the lifespan of the battery and how do I maintain it? A: The system uses a maintenance-free lead-acid battery. To maximize lifespan, charge it at least once every 3 months and avoid leaving it in a discharged state.

Q: Is the system suitable for outdoor use? A: The solar panel is designed for outdoor installation to catch sunlight, while the main controller unit should be kept in a dry environment for home or commercial use.

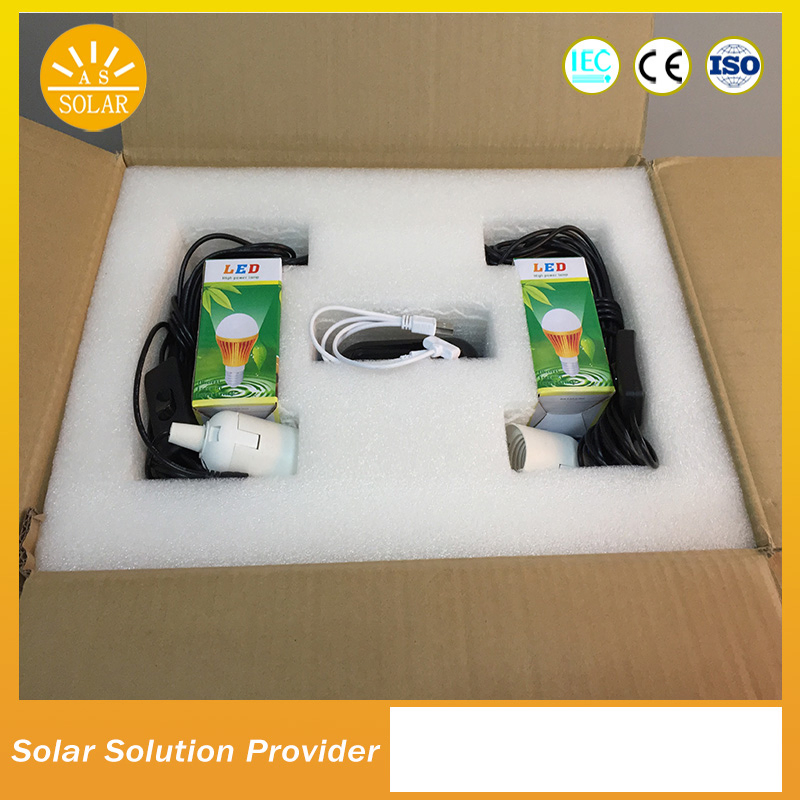

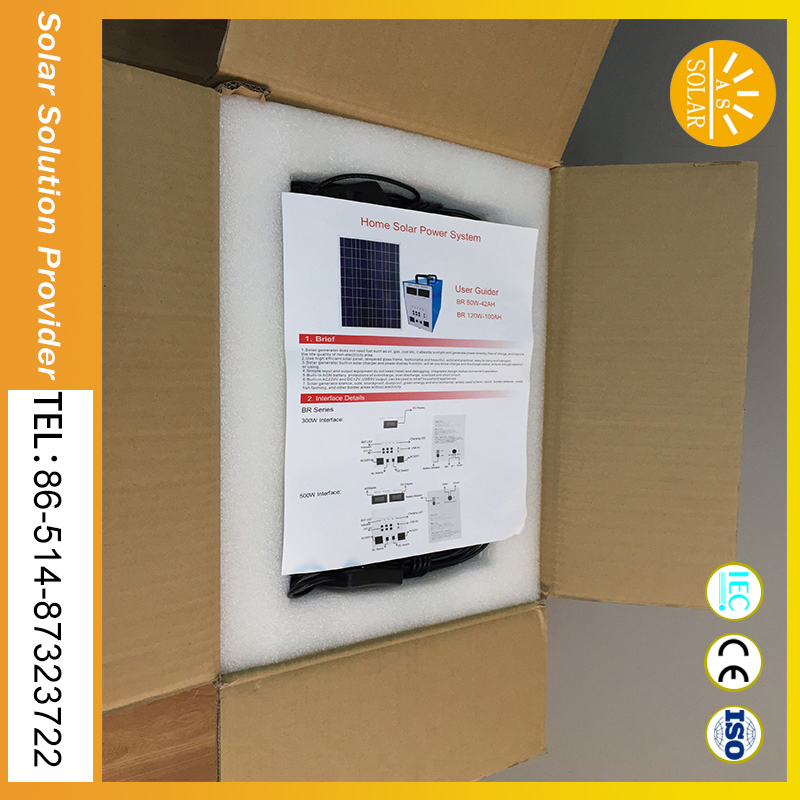

Q: What is included in the standard 20W kit? A: The kit includes a 20W solar panel with cable, a power box with a 12V battery, and LED bulbs with dedicated wiring.

Q: What kind of warranty do you provide? A: This solar home lighting system comes with a 3-year warranty covering manufacturing defects.
