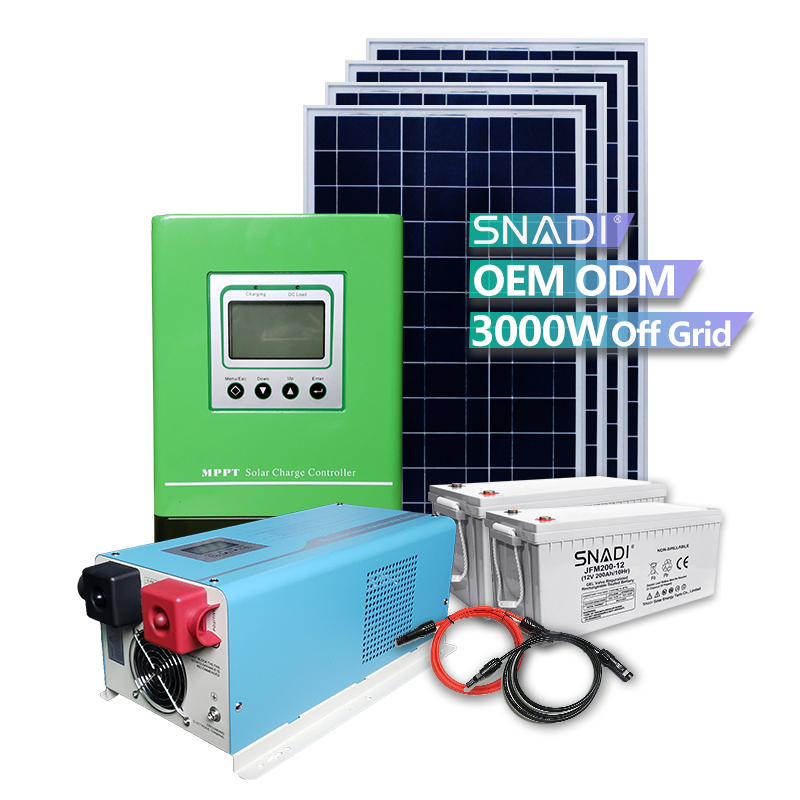

The solar power system consists of photovoltaic modules (including brackets), photovoltaic combiners, solar controllers, batteries (including battery cabinets), and inverter.

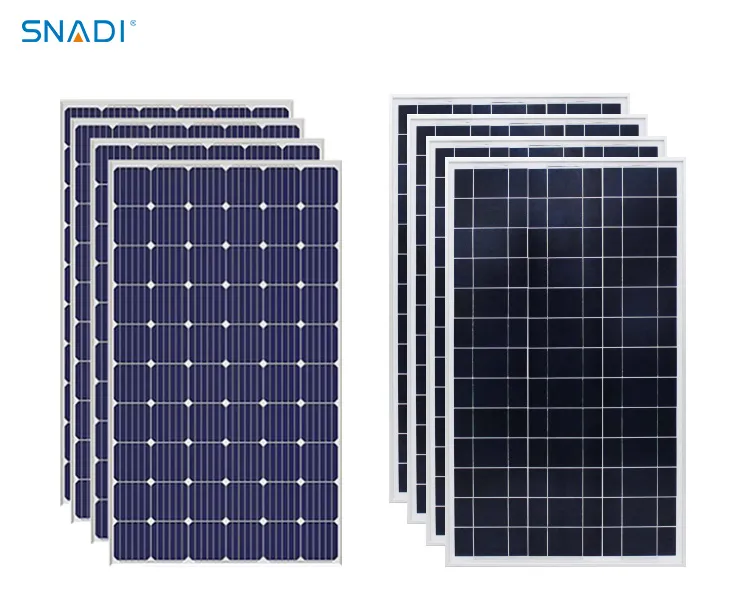

✓High efficiency A Grade mono cells, 300W
✓21% conversion efficiency
✓Anti-reflection tempered glass
✓Anodic aluminium-alloy frame
✓MC4 junction box

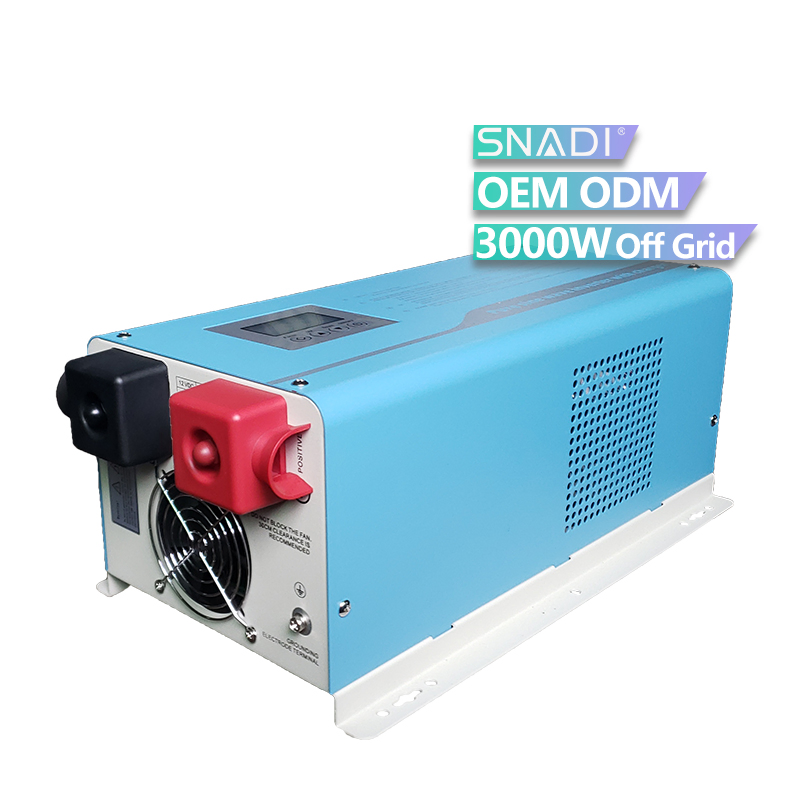

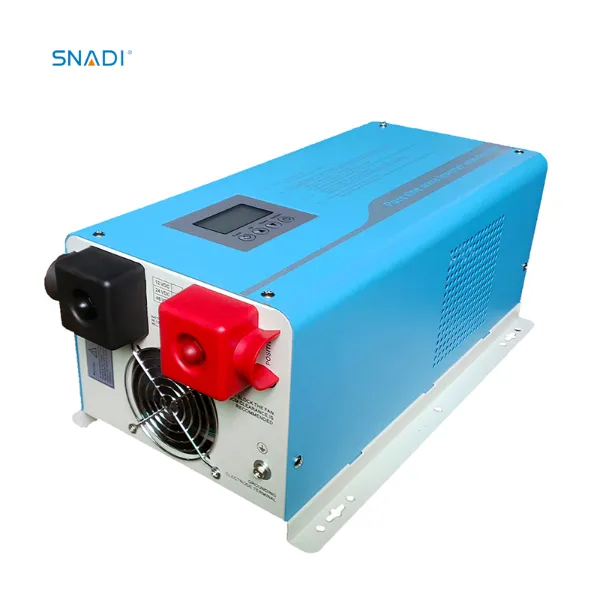

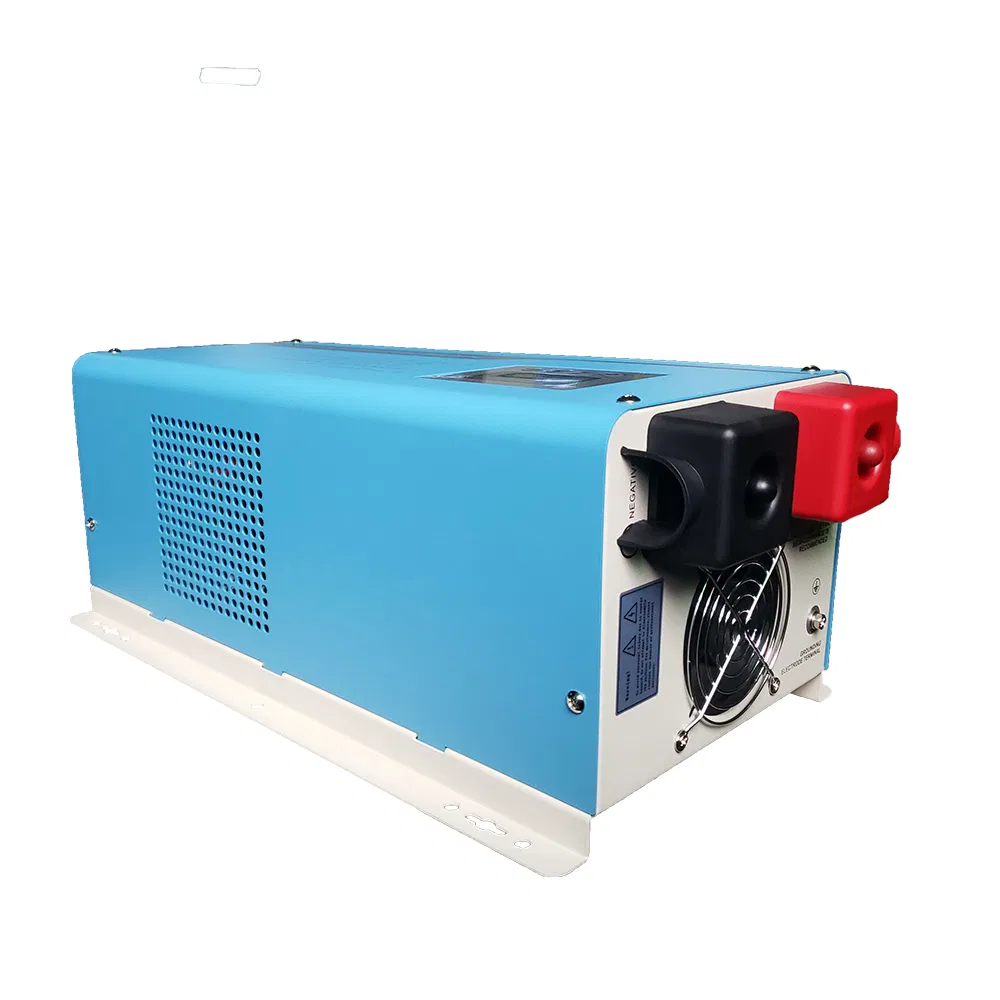

✓A wide range of input voltage
✓Settable the mains mode
✓Controlled by intelligent fan
✓Pure sine wave AC output
✓LCD display
✓Automatic protection

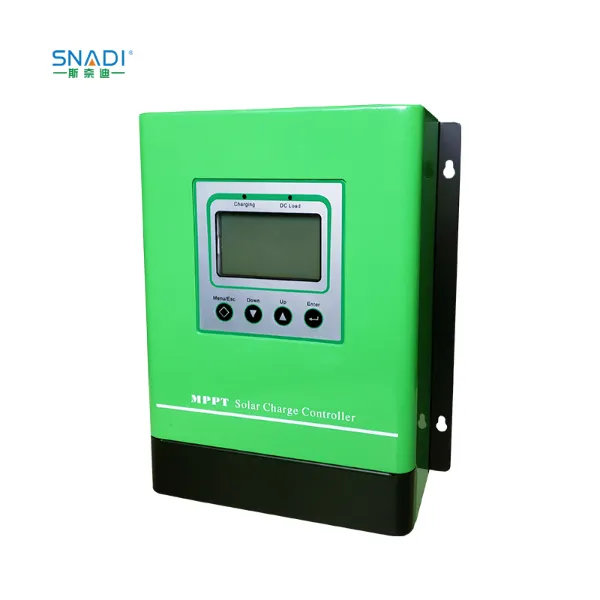

✓Intelligent maximum power tracking technology
✓LCD display
✓Kinds of battery protect data setting
✓Complete protect
✓RS485 remote communication and data transmission
✓Time display function

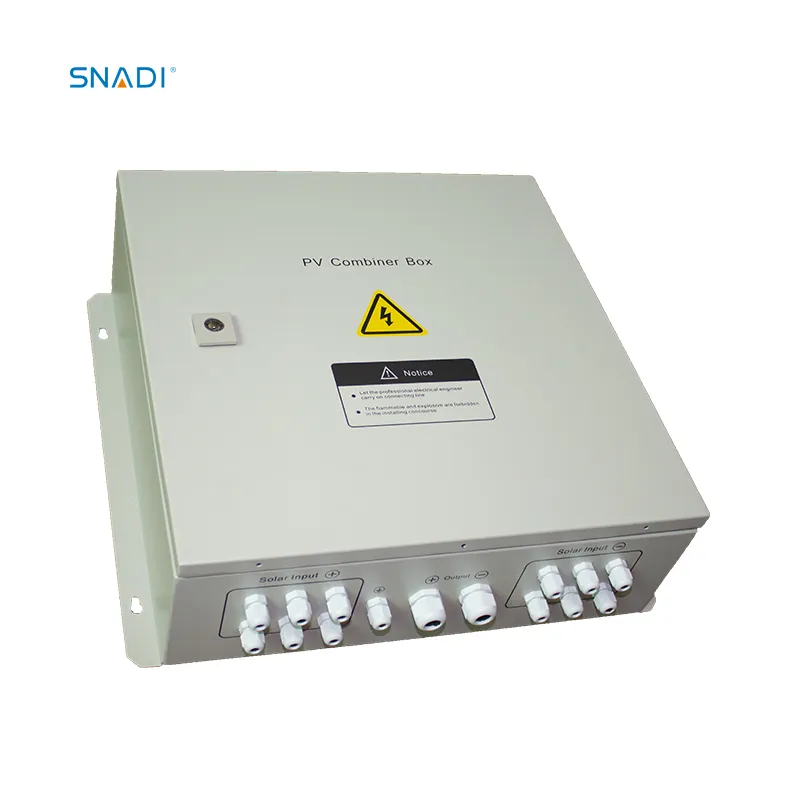

✓Applicable for outdoor PV systems
✓Number of PV input array: 6
✓Max input PV current each array: 16A
✓Max output current: 96A, 600Vdc
✓Lighting Protection, IP65

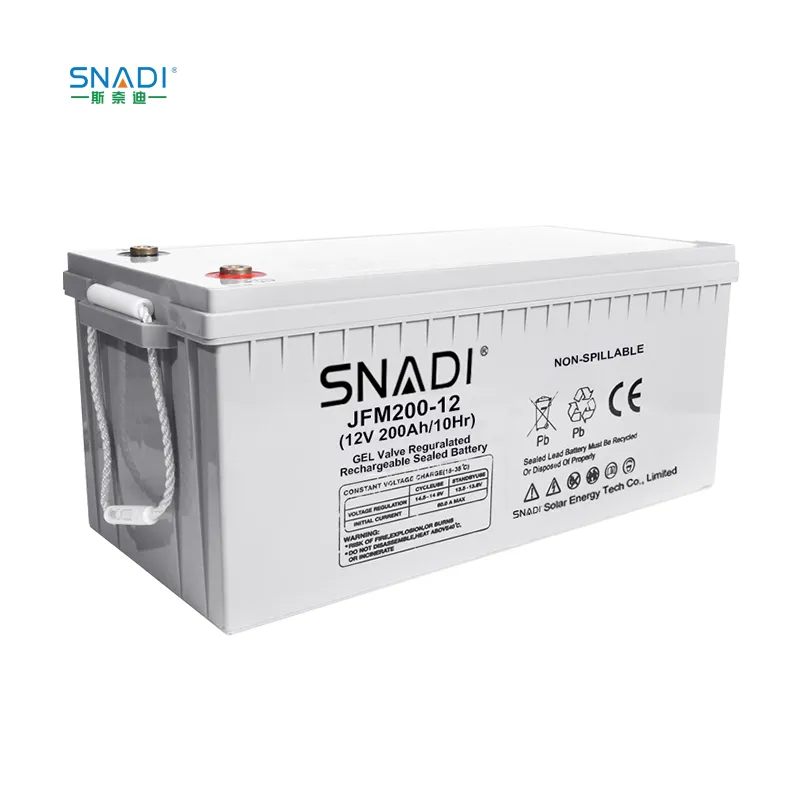

✓Maintenance-free Gel Battery
✓12V/200Ah, 54kg
✓Silver-coated copper terminals, brass insert

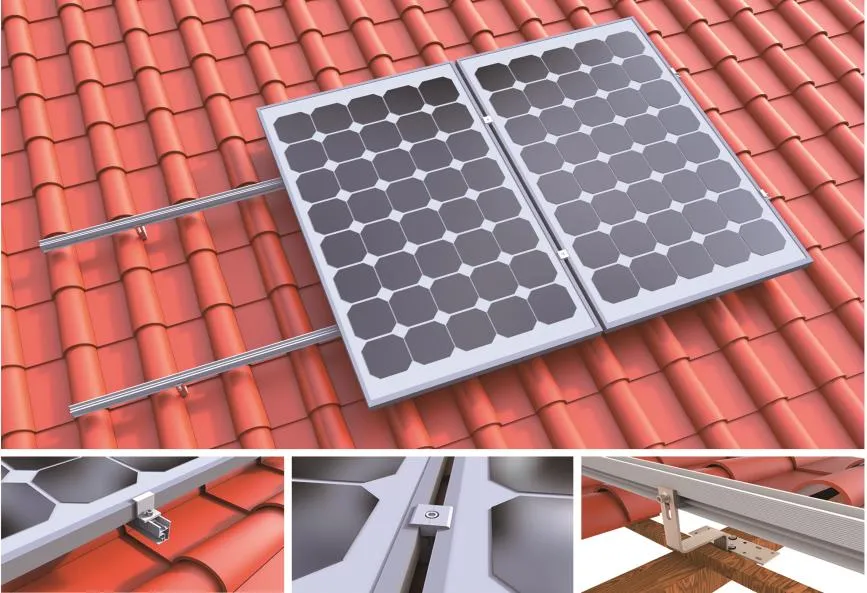

✓Pitched Roof, flat roof, tile roof, tin roof, ground, vertical wall
✓High Class Anodized Aluminum
✓Wind Load: up to 130mph (60m/s)
✓Snow Load: up to 30psf (1.4kN/m2)

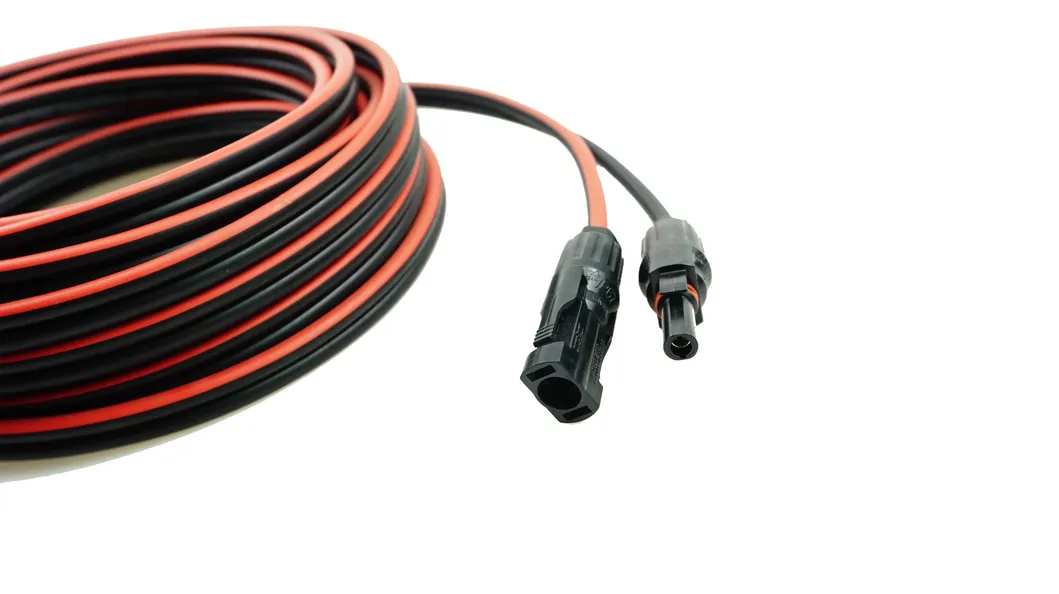

✓Solar panel cables 4mm2
✓Battery connection cables 10mm2
✓MC4 Solar connector
✓Battery cable connector
| Item | Model | Description | Quantity |
|---|---|---|---|
| 1 | Solar panel | Mono 300w solar panel | 4 PCS |
| 2 | FT solar inverter | 5KW 48VDC 220VAC 50HZ | 1 PC |
| 3 | Solar charge controller | MPPT 48VDC 60A | 1 PC |
| 4 | Pv combiner box | 4 solar arrays input, 1 arrays output | 1 PC |
| 5 | Battery | 12V/200AH Gel battery | 2 PCS |
| 6 | Solar bracket | Flat ground and roof optional: mount 4pcs panels | 1 SET |
| 7 | Solar cables | 4mm2 solar, 200mm2 battery, 16mm2 electric | 50 Meters |
| 8 | Solar connector | MC4 solar connector, rated voltage: 1000v | 4 SETS |
