We are a professional manufacturer of LED display with excellent R&D department and independent design ability. Our product range includes single color displays, indoor/outdoor full color screens, and wireless car-use screens. These solutions are widely applied in shopping malls, banking, transportation hubs, schools, and creative flexible screen projects.

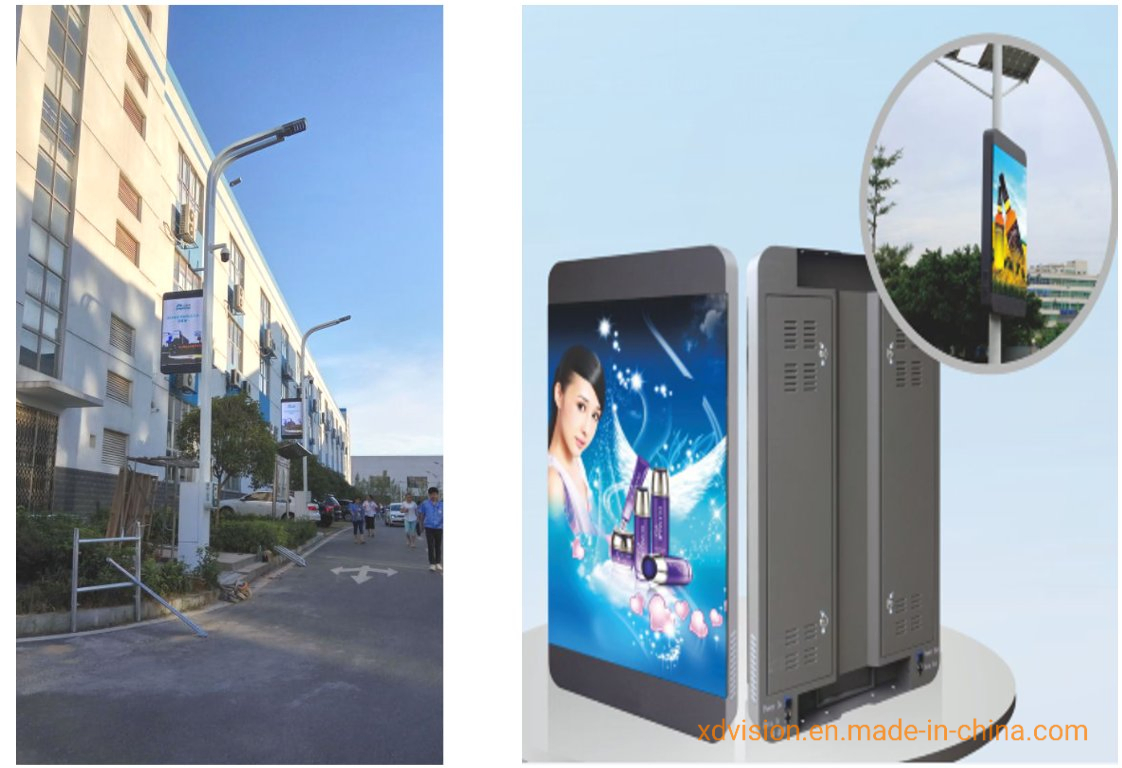

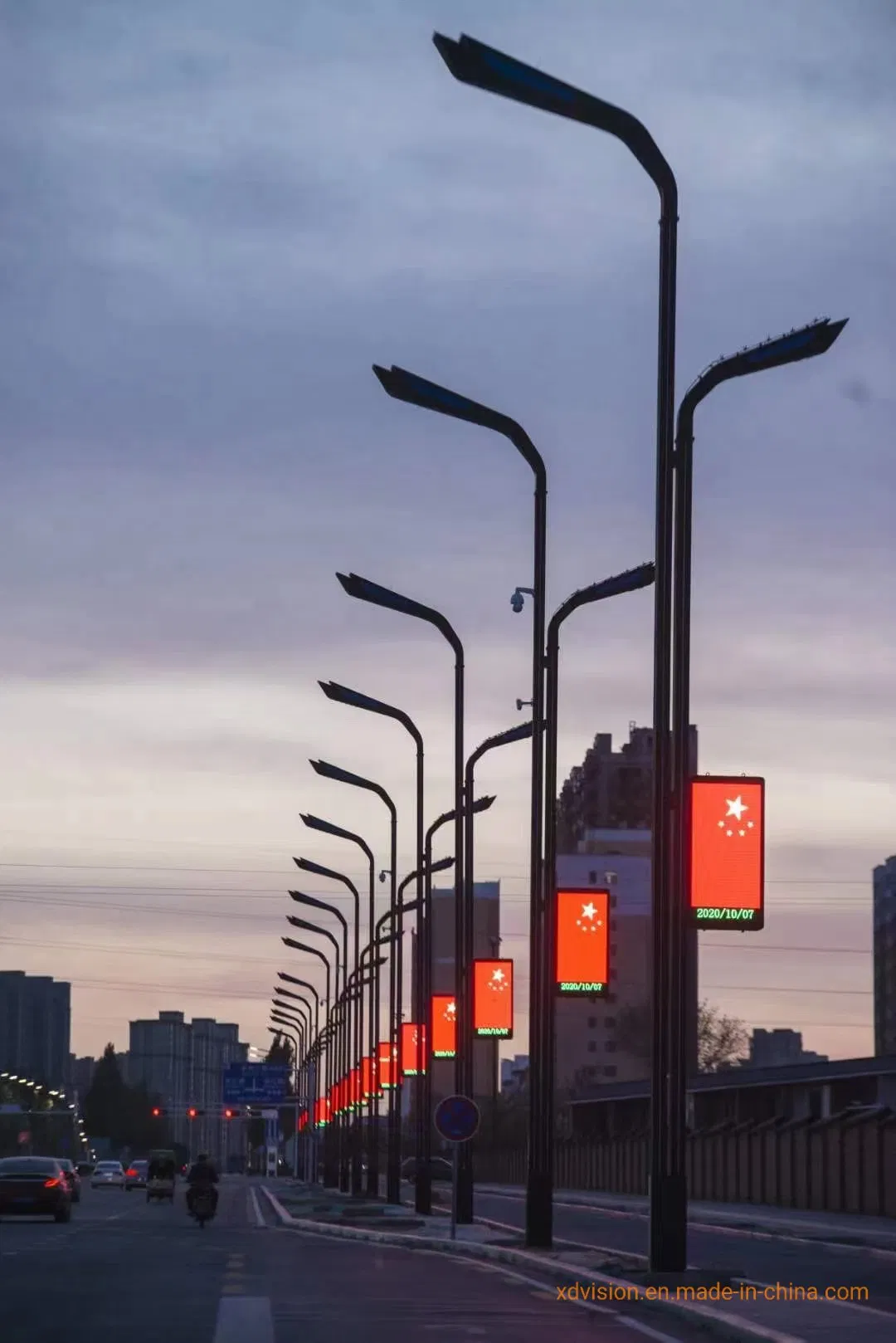

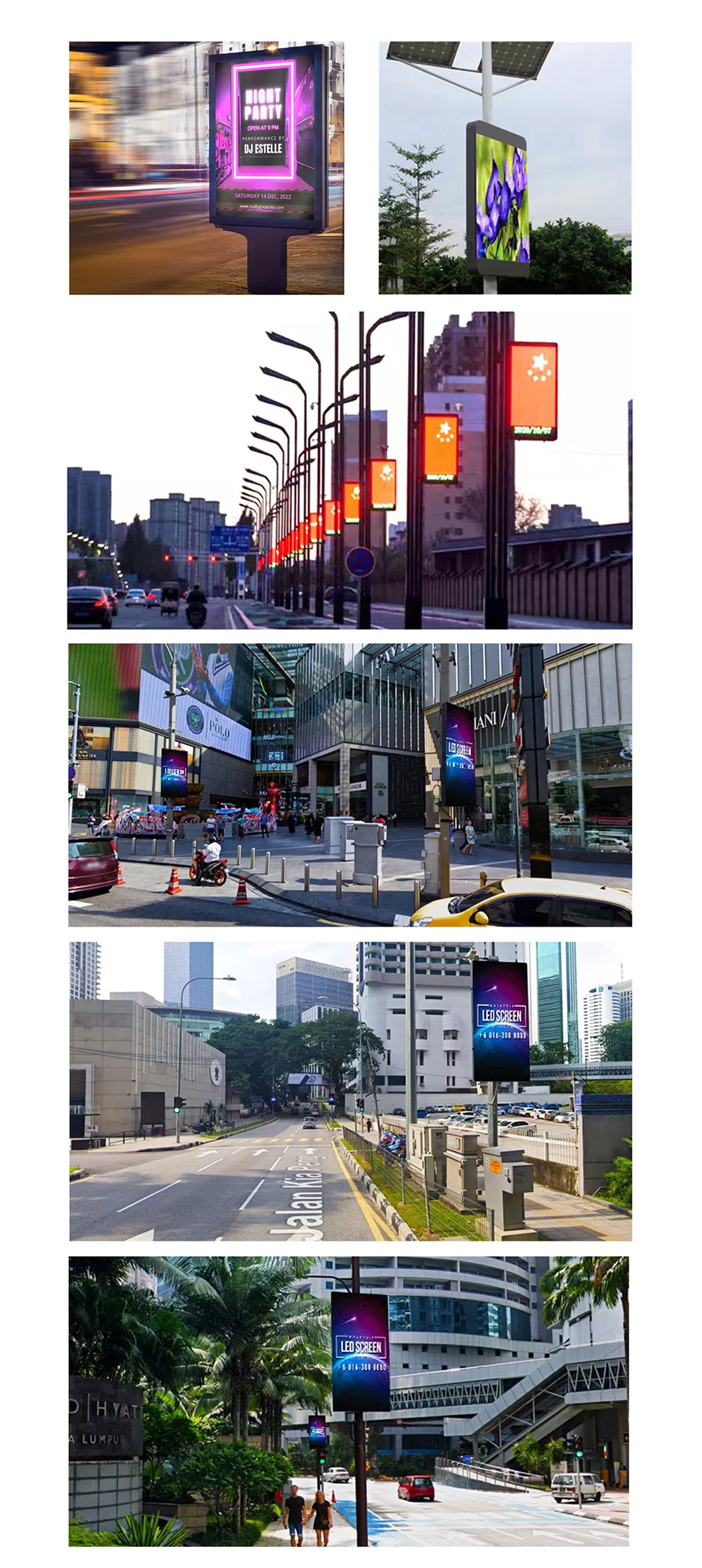

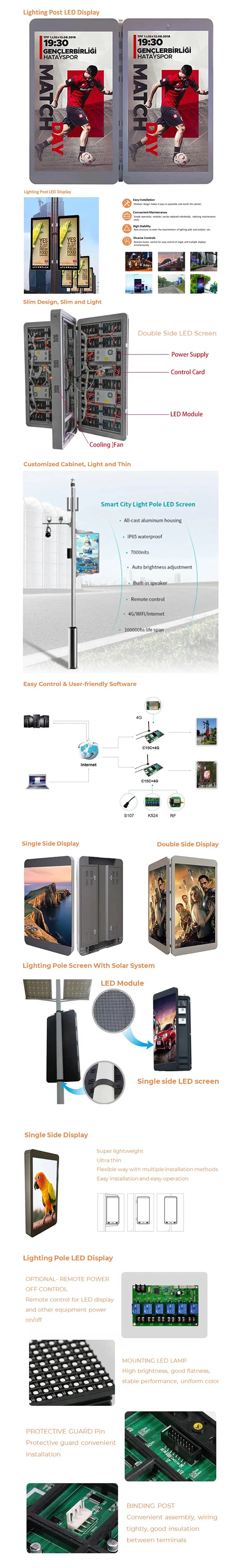

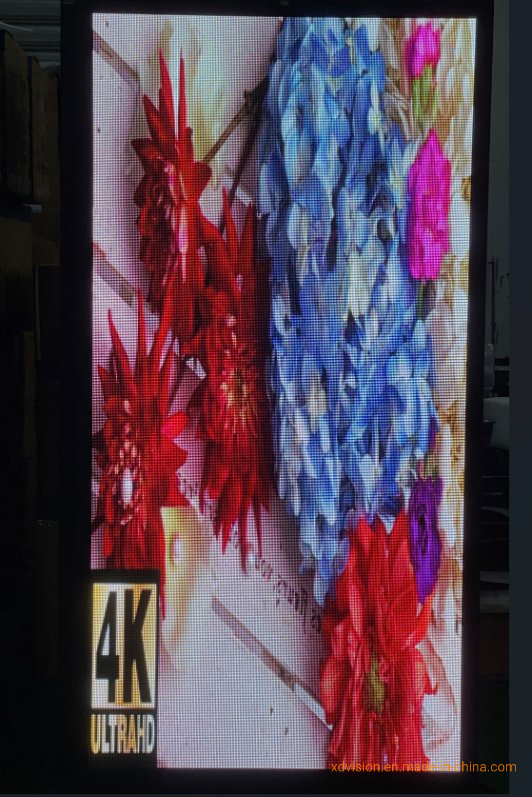

This LED pole display is specifically designed for communities, walking streets, hospitals, roadsides, parks, supermarkets, and various public transit stations.
Integrated LAN, WiFi, and 3G modules for smart remote advertisement management.
Change content anytime and anywhere once the system is installed.
IP65/IP54 rated protection for reliable outdoor performance in any weather.

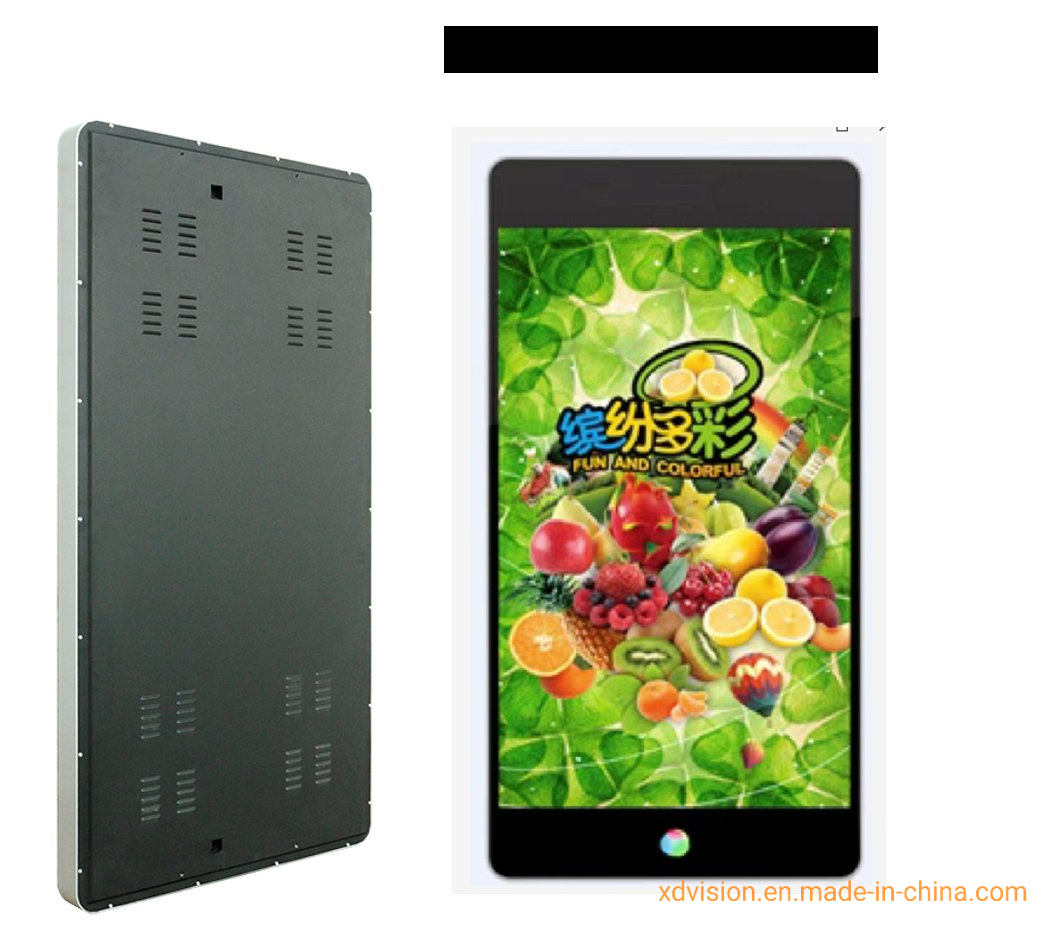

Flexible installation with both front and rear maintenance access available.
| Part Number | XD-LD3 | XD-LD4 | XD-LD5 | XD-LD6 |
| Pixel Pitch | 3mm | 4mm | 5mm | 6mm |
| LED Configuration | SMD1921 | SMD1921 | SMD2727 | SMD3535 |
| Pixel Density | 111111dot/m2 | 62500dot/m2 | 40000dot/m2 | 27777dot/m2 |
| Module size | 192X192mm | 256X128mm | 160X160mm | 192X96mm |
| Cabinet Size | 820X1600X80mm | 820X1600X80mm | 800X1600X115mm | 768X1604X127mm |
| Brightness | ≥5000CD/m2 | ≥5000CD/m2 | ≥5000CD/m2 | ≥5000CD/m2 |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Refresh Frequency | ≥2880HZ | ≥2880HZ | ≥2880HZ | ≥2880HZ |
| Control Mode | Cloud service cluster management, Asynchronous control | |||
