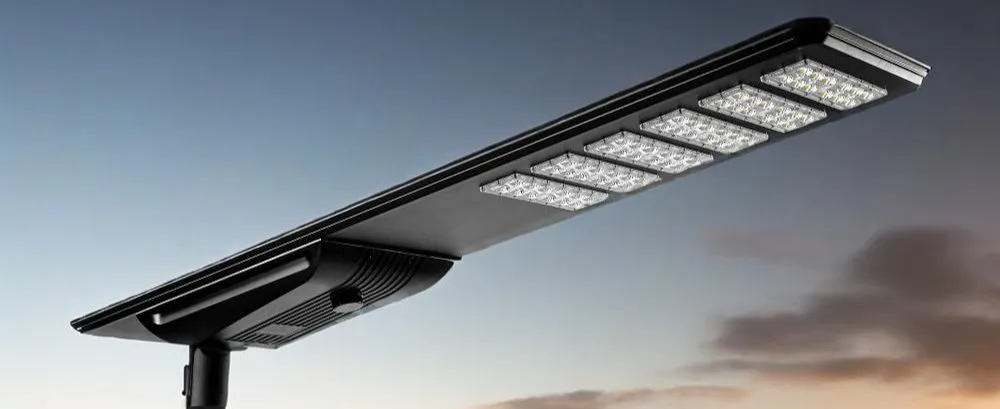

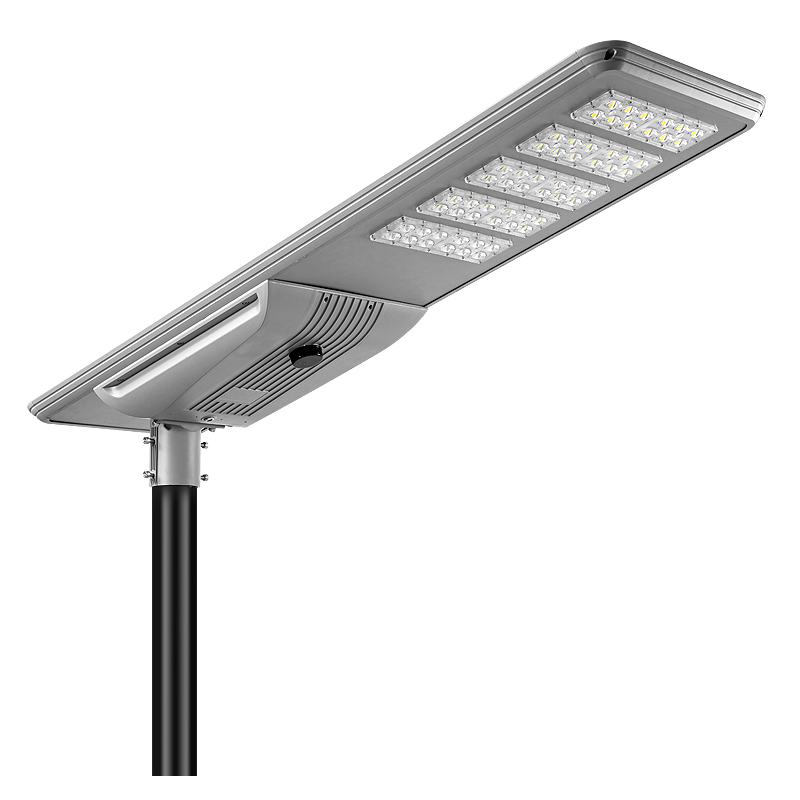

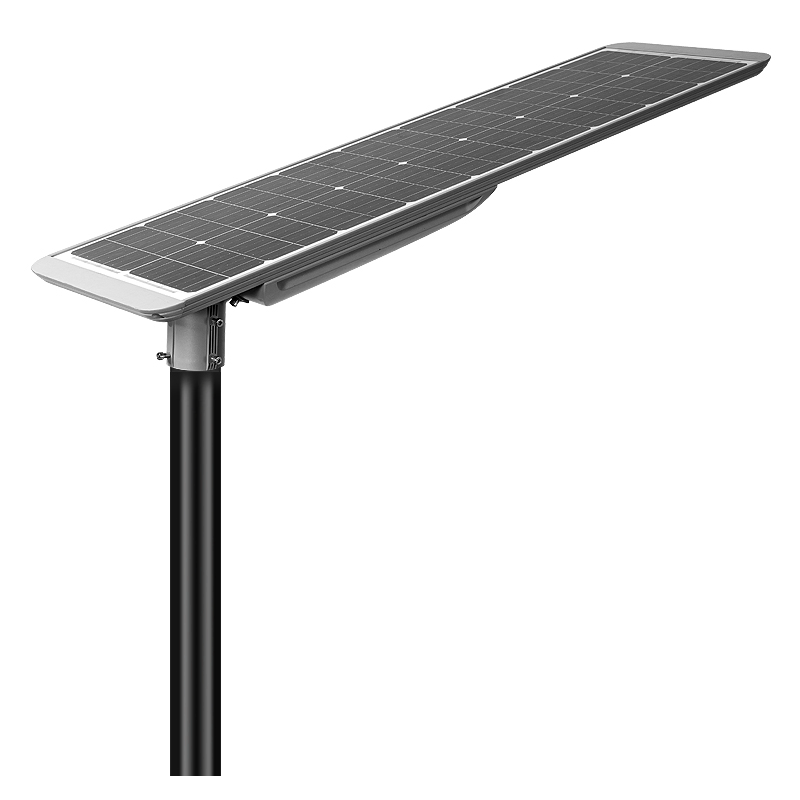

This model solar street light features of high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP66 and has passed CE certification. It is suitable for urban and suburban lighting, roads, parks, roadsides, factories, squares, etc. It has a warranty period of 3 to 5 years.

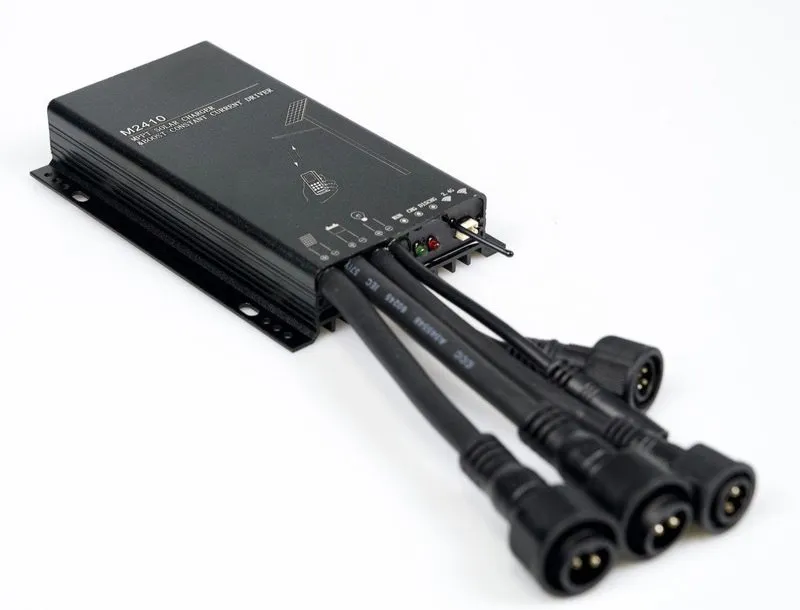

MPPT (Maximum Power Point Tracking) technology. Boasting a tracking efficiency of over 99% and a remarkable 97% charging conversion efficiency, it ensures optimal power utilization from solar panels. This charge-discharge controller is compatible with 12V and 24V batteries, including lead-acid and lithium-ion types. Features include infrared and microwave sensing, adjustable delay times, and remote control settings.

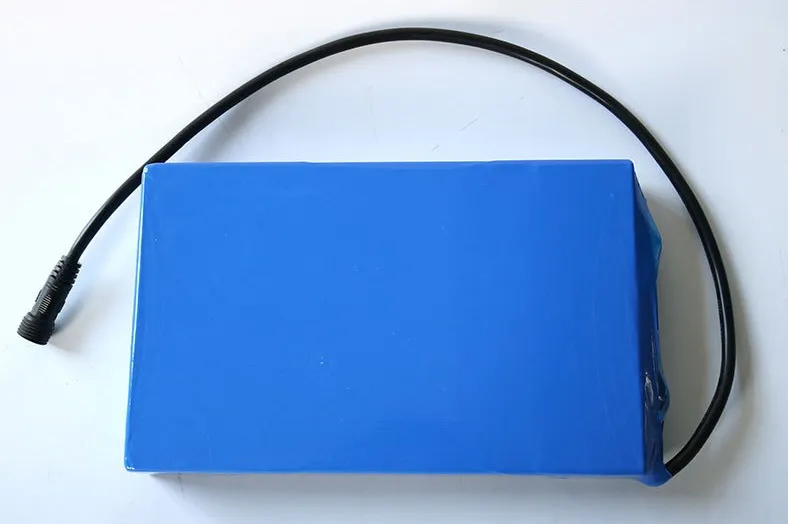

Utilizing advanced LiFePo4 technology, widely used in premium solar lighting. Multi-functions protection of the PCB ensures optimum performance.
• DOD cycles: More than 2500 times
• Lifespan: 10 years
• Voltage: 12V/24V
• Rating: IP67 waterproof

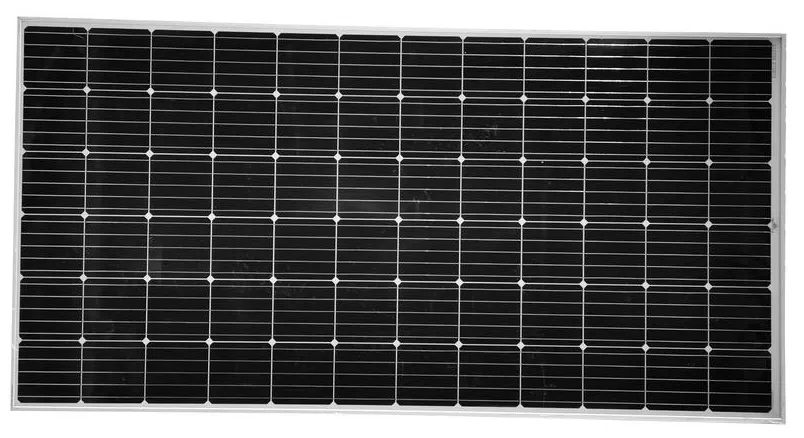

Mono-crystalline PV panel reaching 25% conversion efficiency. New half-cell technology (182mm) provides higher power.
• Working life: More than 25 years.
• Voltage: 18V, 36V or tailored.
• Working range: -40℃ to 85℃.

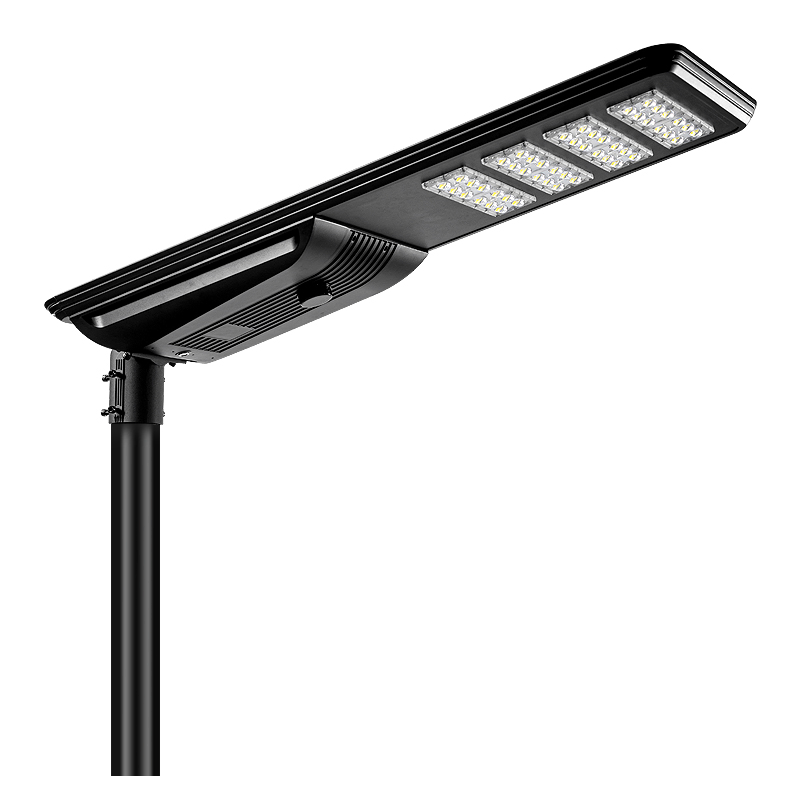

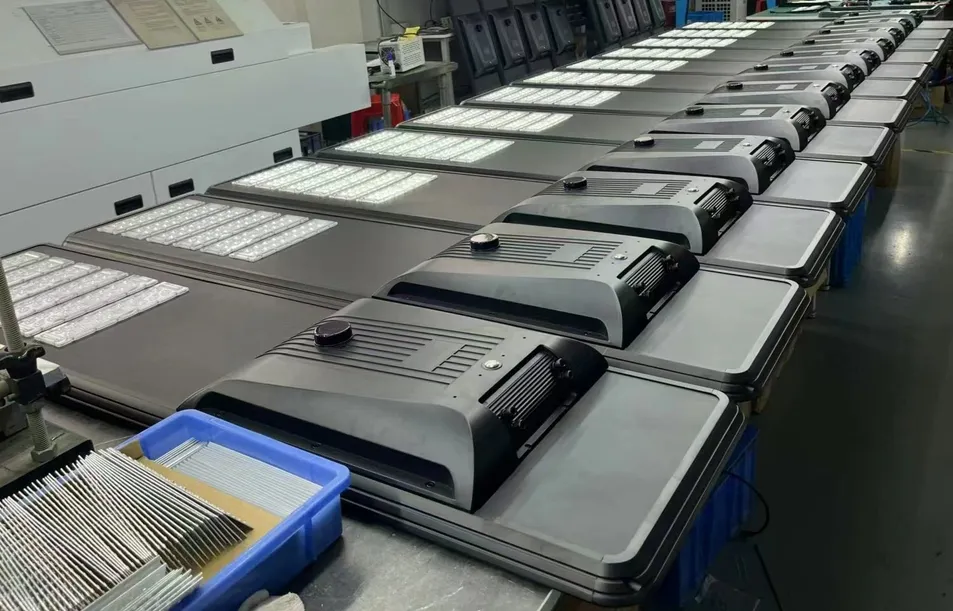

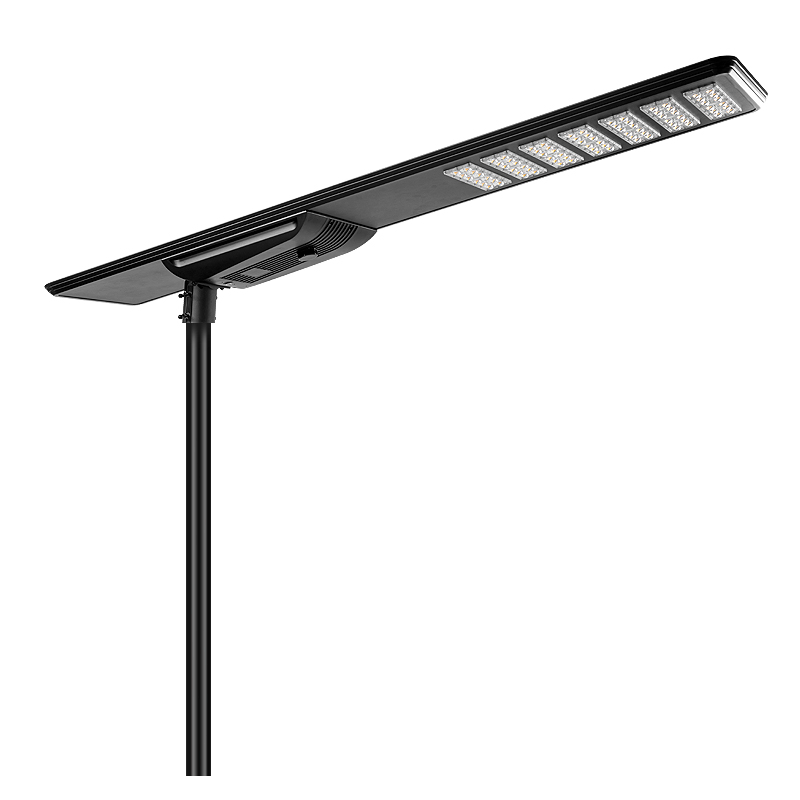

BLACK COLOR RAL 9004: Adjustable mounting angle, suitable for poles 4m to 14m.

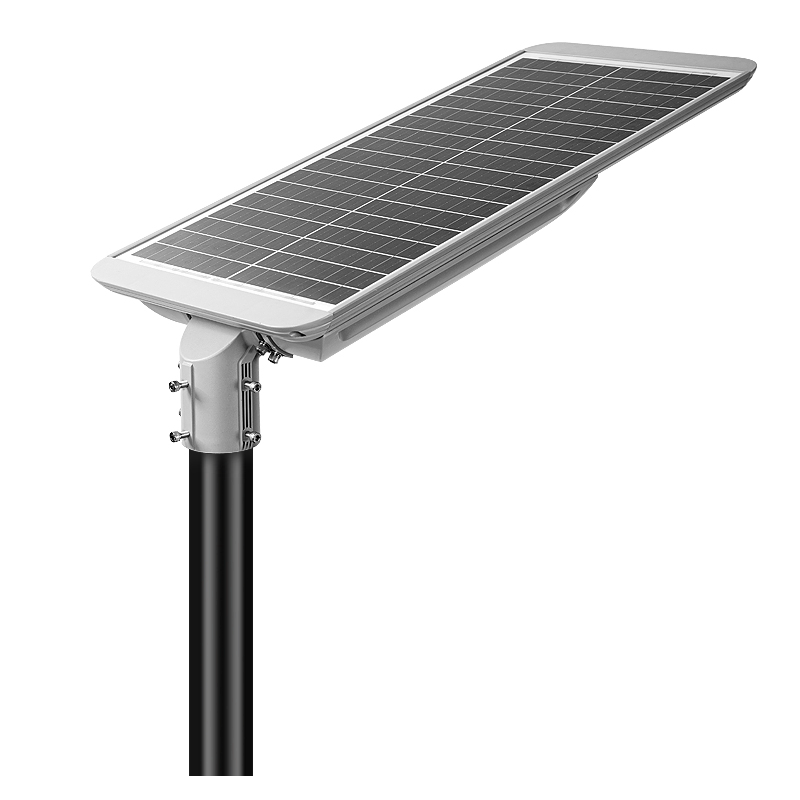

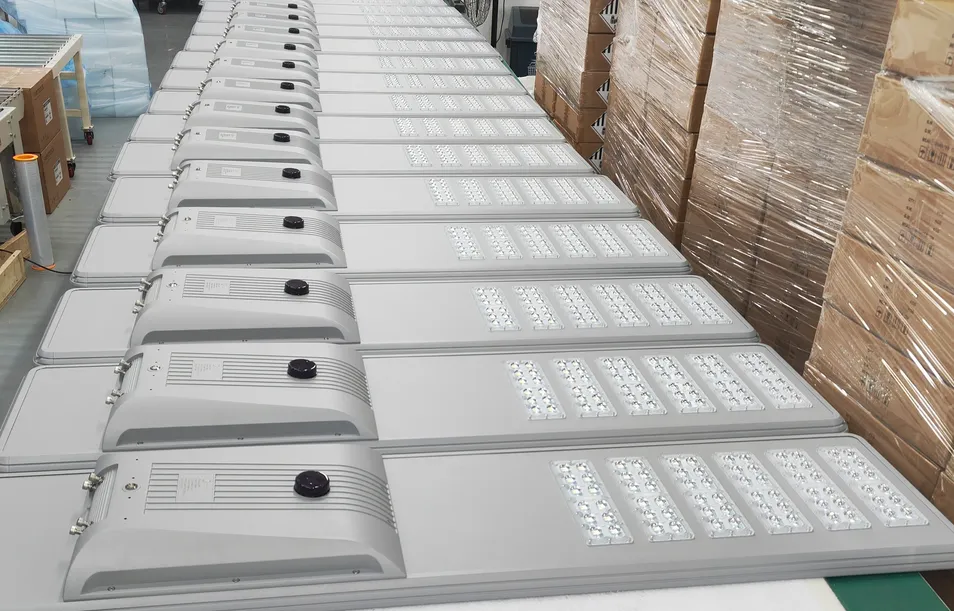

GREY COLOR RAL 9022: Simplified design for area lighting, features 82mm spigot.

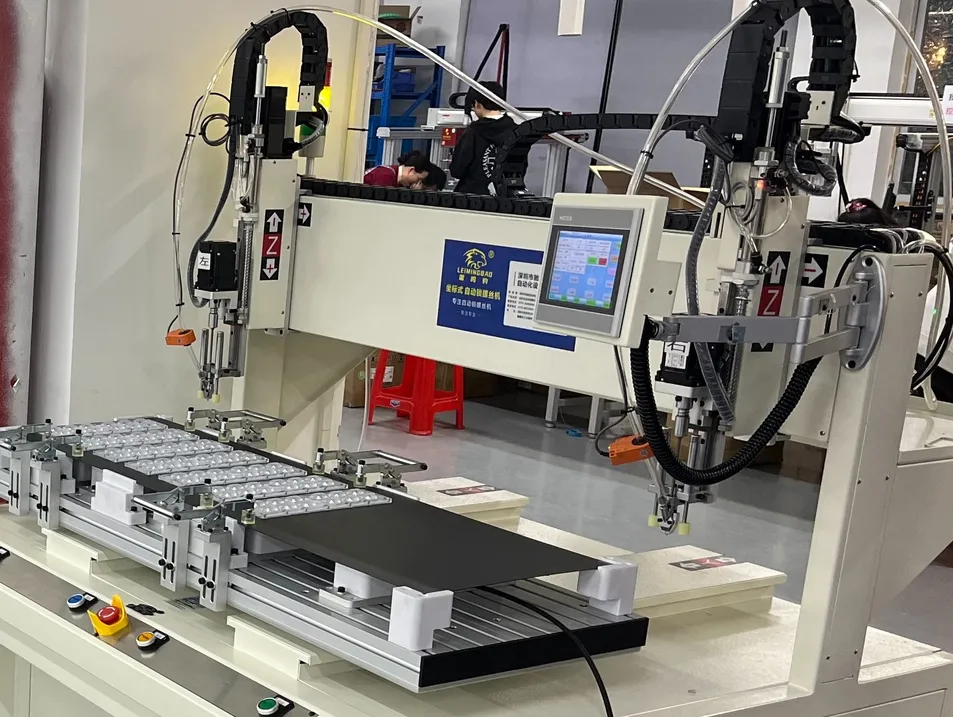

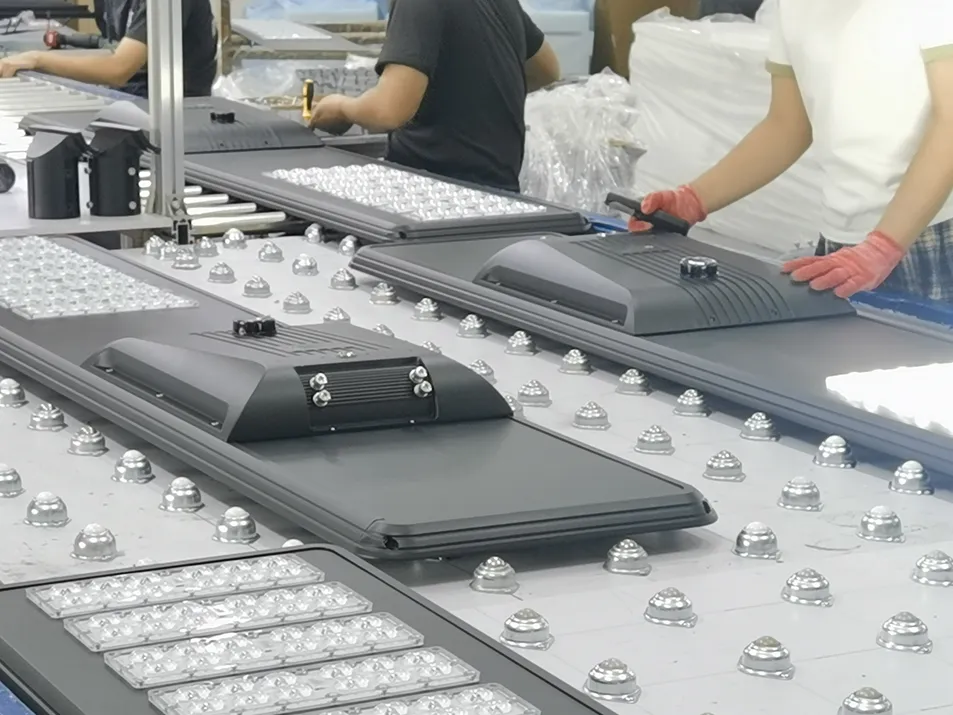

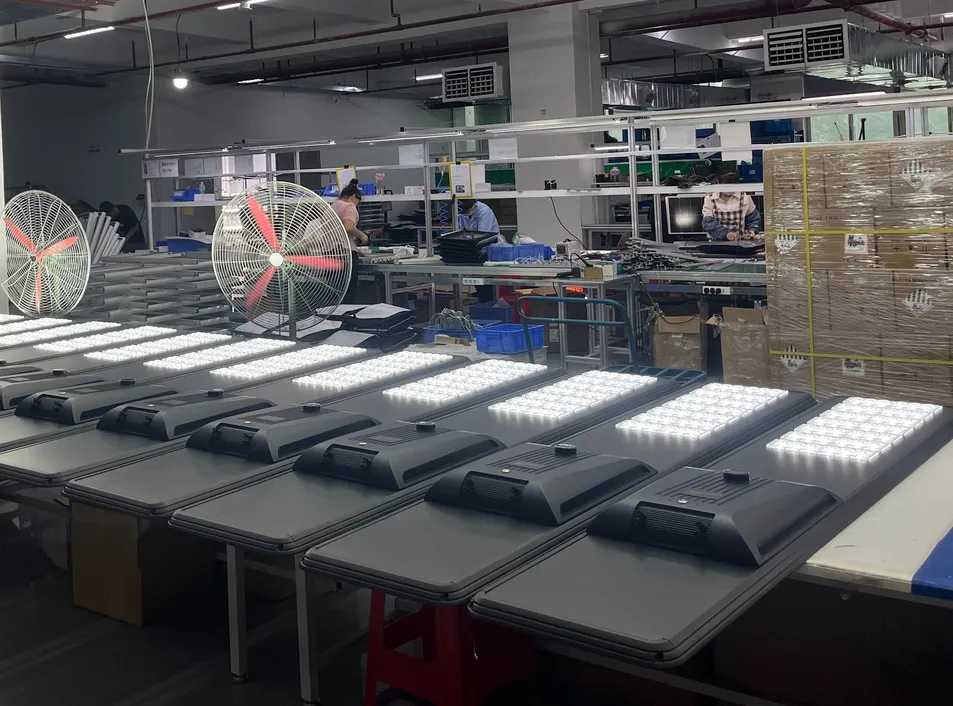

Every unit undergoes strict quality inspection, including CCT, programming, and function checks. 100% inspection ensures optimization. Products are aged through charge/discharge cycles and packaged in EPE tailored frames to prevent transport damage.

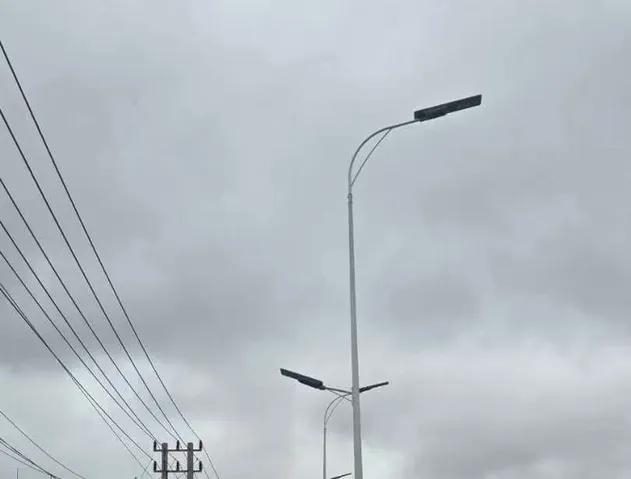

Asia: Replacing traditional lights with high-efficiency solar LEDs.

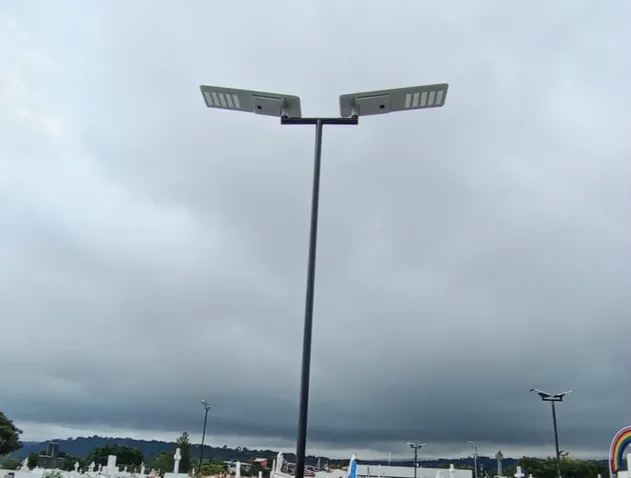

Central America: Proven durability in tough weather conditions.

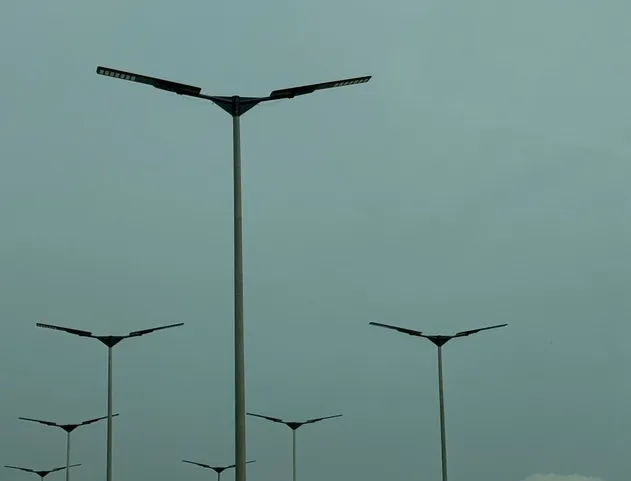

Africa: High endurance under strong solar radiation.
Customization of tech specs is accepted for different solar radiation zones.
| MODEL | M25-30-AIO | M25-60-AIO | M25-80-AIO | M25-100-AIO | M25-120-AIO |
|---|---|---|---|---|---|
| POWER | 30W | 60W | 80W | 100W | 120W |
| LUMINOUS FLUX | 5400LM | 10800LM | 14400LM | 18000LM | 21600LM |
| PV PANEL | 60WP/MONO | 90WP/MONO | 110WP/MONO | 140WP/MONO | 160WP MONO |
| LFP BATTERY | 320WH 3.2V | 384WH 12.8V | 576WH 12.8V | 768WH 12.8V | 960WH 12.8V |
| CONTROLLER | MPPT | MPPT | MPPT | MPPT | MPPT |
| CHARGE TIME | 5 HRS | 5 HRS | 5 HRS | 6 HRS | 6 HRS |
| DISCHARGE TIME | 12 HRS | 12 HRS | 12 HRS | 12 HRS | 12 HRS |
