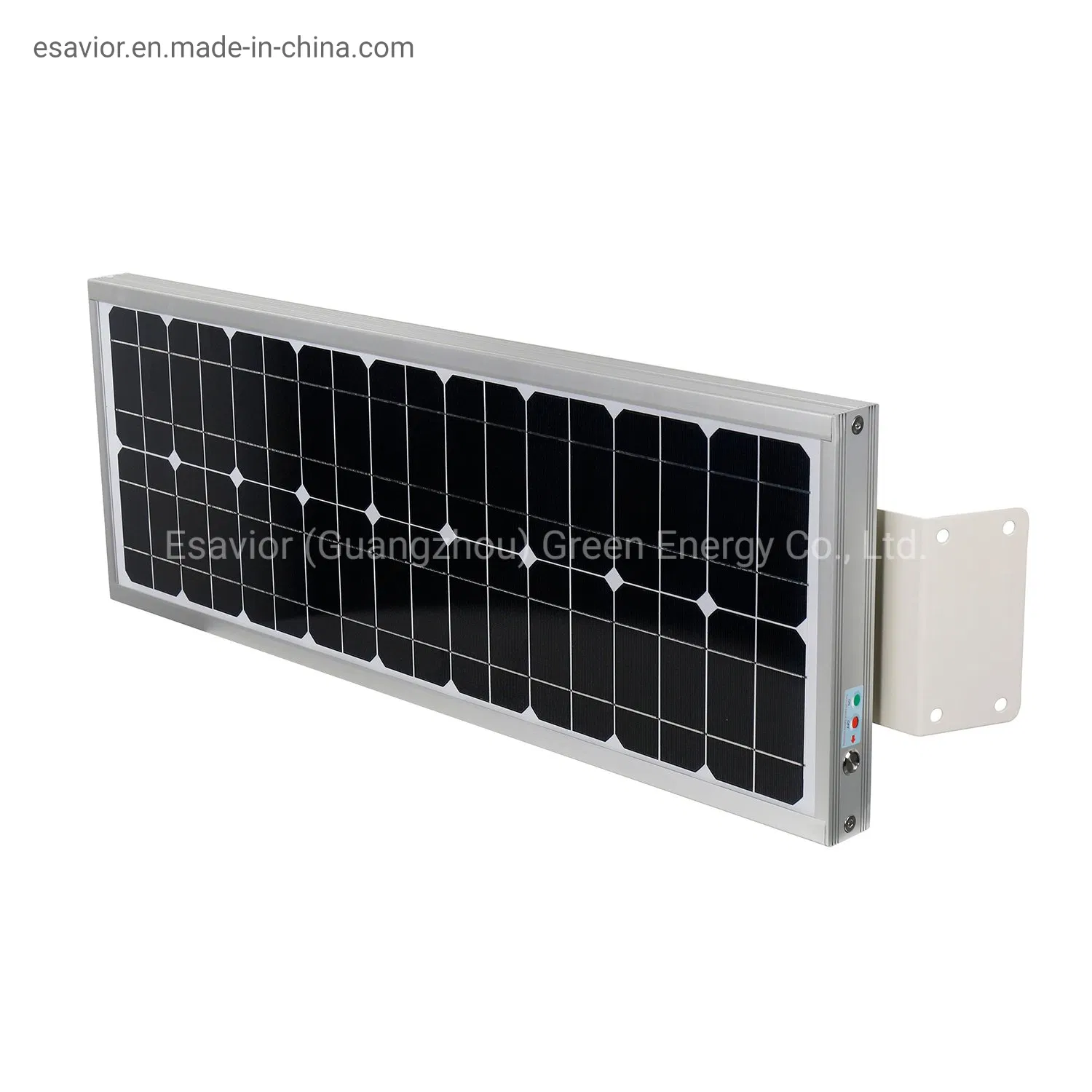

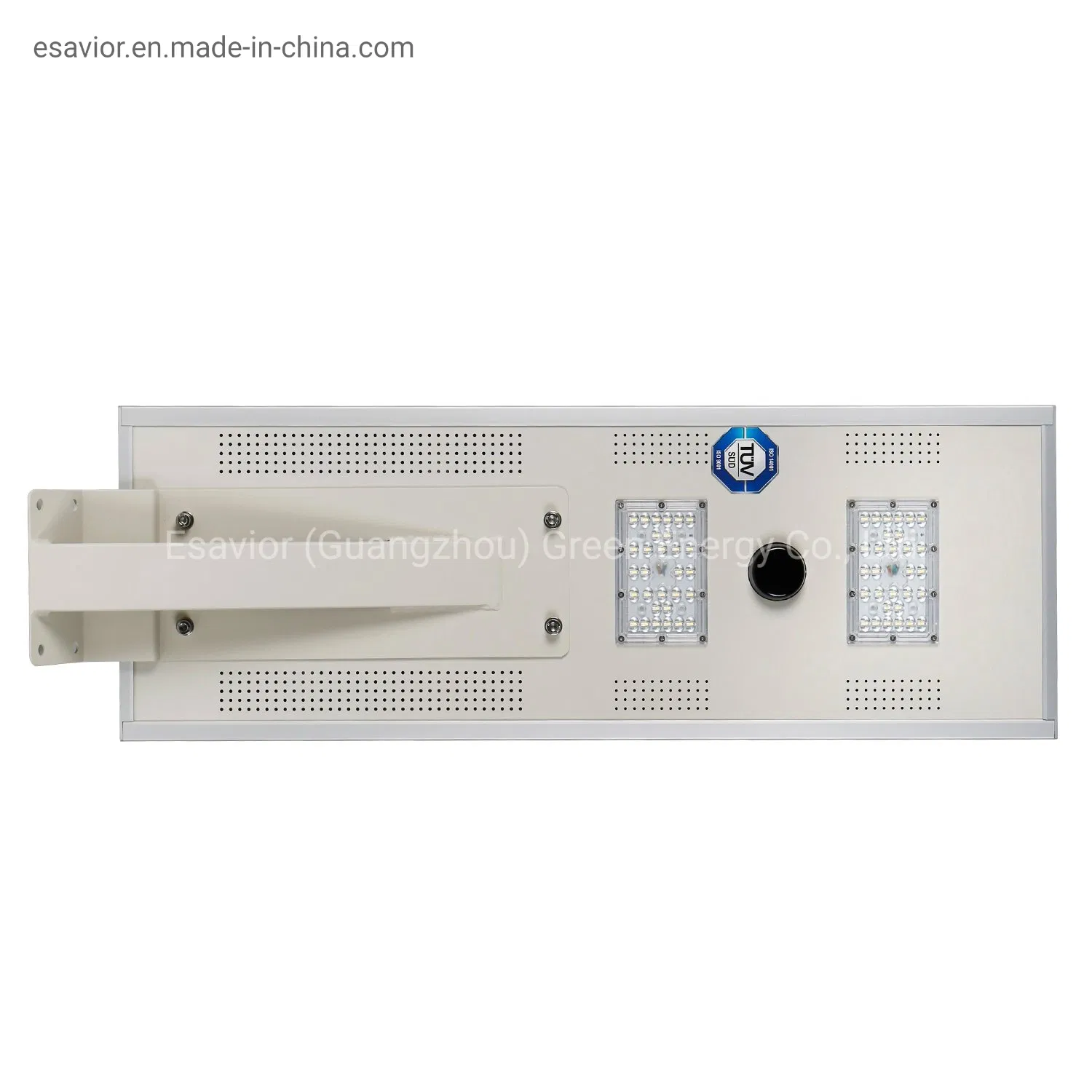

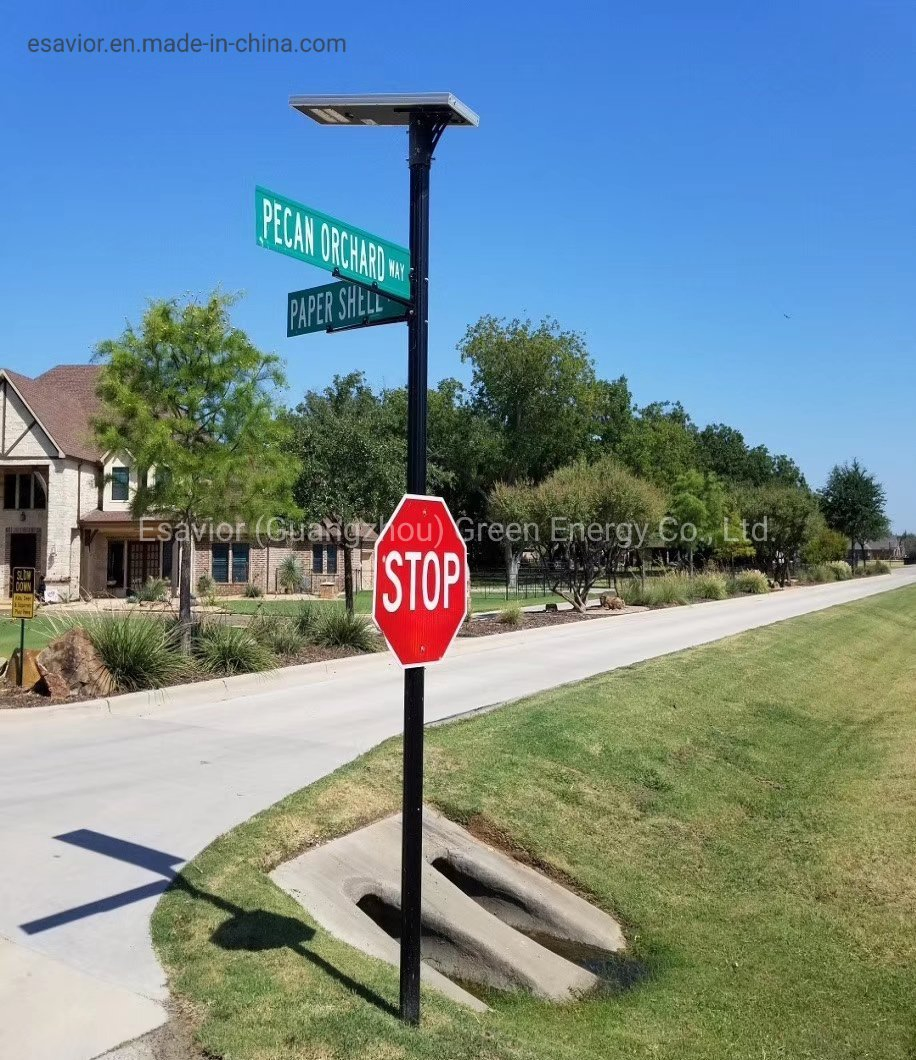

20W Smart Iot All in One Solar LED Street Light

📊

Basic Information

Model NO.

ISSL-SPR-020C

Light Type

Solar

Color Temperature

Cool White

Power

16W-20W

Illumination Time

>11 Hours

Cell Type

LiFePO4 Lithium

Charging Time

6 Hours

IP Rating

IP66

Voltage

12/24V

Warranty

3 or 5 Years

Controller

MPPT IP68

Body Material

Aluminum Alloy

💡

Product Description

20W All in One LED Solar Street Garden Light Outdoor Lamp with Motion Sensor

Professional solar lighting manufacturer supplying solar LED street lights, garden lights, flood lights, and off-grid solar systems. This integrated solution combines high-efficiency components for superior outdoor illumination.

📋

Technical Specifications

SUPERIOR (SILVER) Series		Model No. ISSL-SPR-020C
Solar Panel System
Power	18V/40Wp (Monocrystalline PV)	Life-span	25 years
Battery Storage
Capacity/Type	12.8V/18AH (230.40WH) / LiFePO4	Life-span	8+ years (3,000 cycles)
LED Light Source
Rated Power	12V/ 20W (30LEDs x 2 modules)	Lumens	2000-2400lm
LED Brand	3030 (195lm/W)	Viewing Angle	140°
Performance & Control
Controller Type	MPPT / IP68	Sensor	Microwave Radar
Full Charge Time	6 hours	Working Temp.	-30ºC ~ +80ºC
Dim Mode Time	> 80 hours	Bright Mode Time	> 16 hours

🚀

Core Advantages

Wireless Application Integrated solar panel, LED, lithium battery, and micro-controller into one stylish system.

Micro-Computer Controlled Combines light and time control systems perfectly for maximum energy efficiency.

Easy Installation No power or cables required; complete installation in just 5 minutes.

Superior Heat Dissipation Aluminum shell with scientific cooling holes and built-in aluminum blocks.

Extreme Light Efficiency Light efficiency reaches 195 lm/w, providing a brighter and more uniform lighting area.

LiFePO4 Lithium Battery Advanced battery technology with over 8 years of lifespan, far exceeding traditional options.

🖼️

Product Showcase

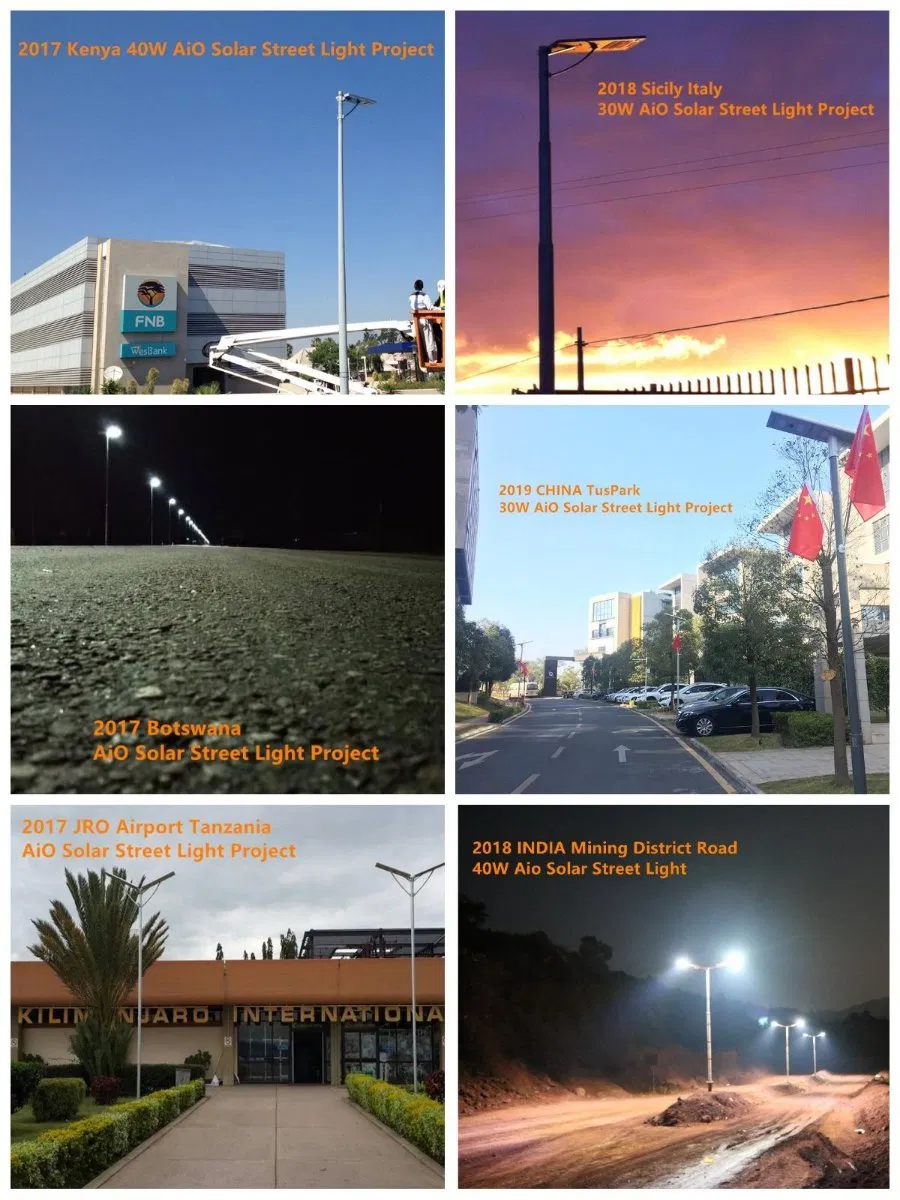

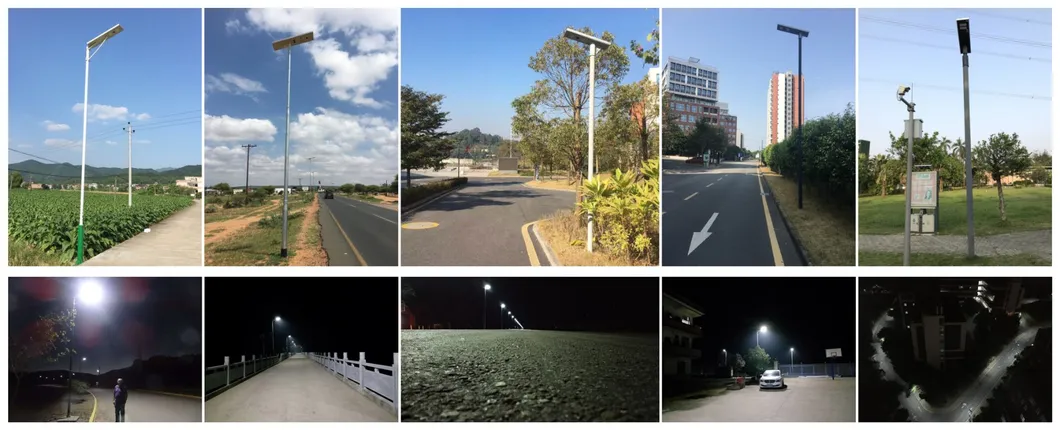

PROJECTS DISPLAY

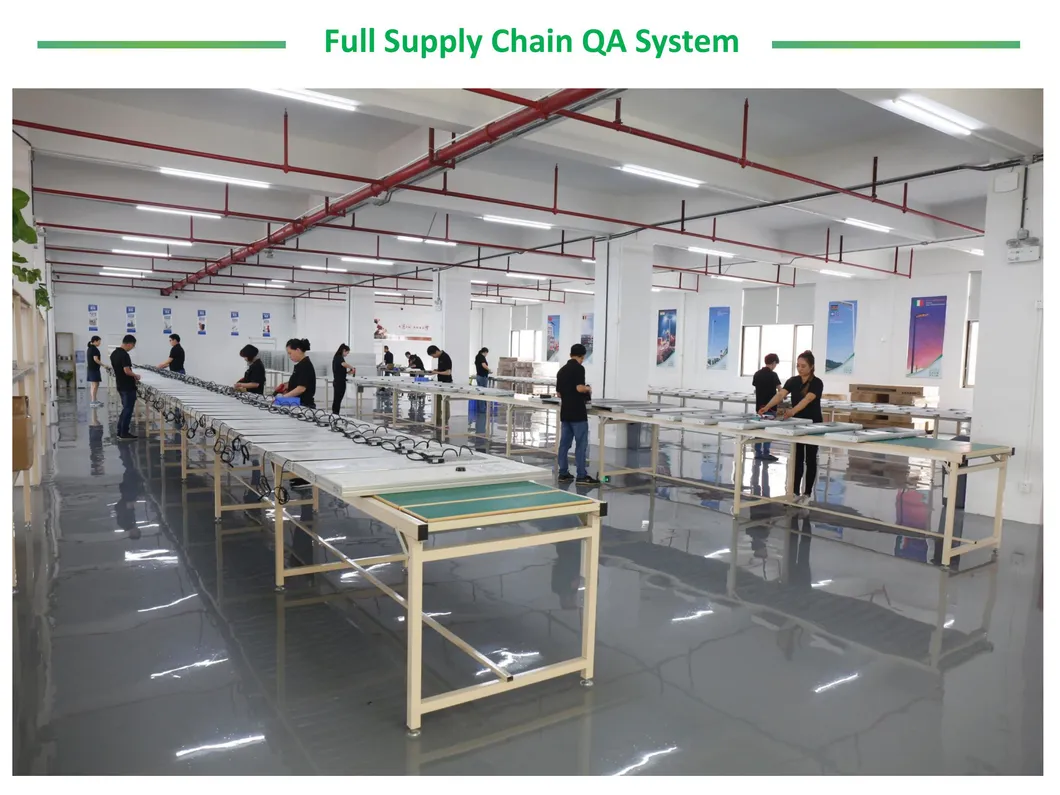

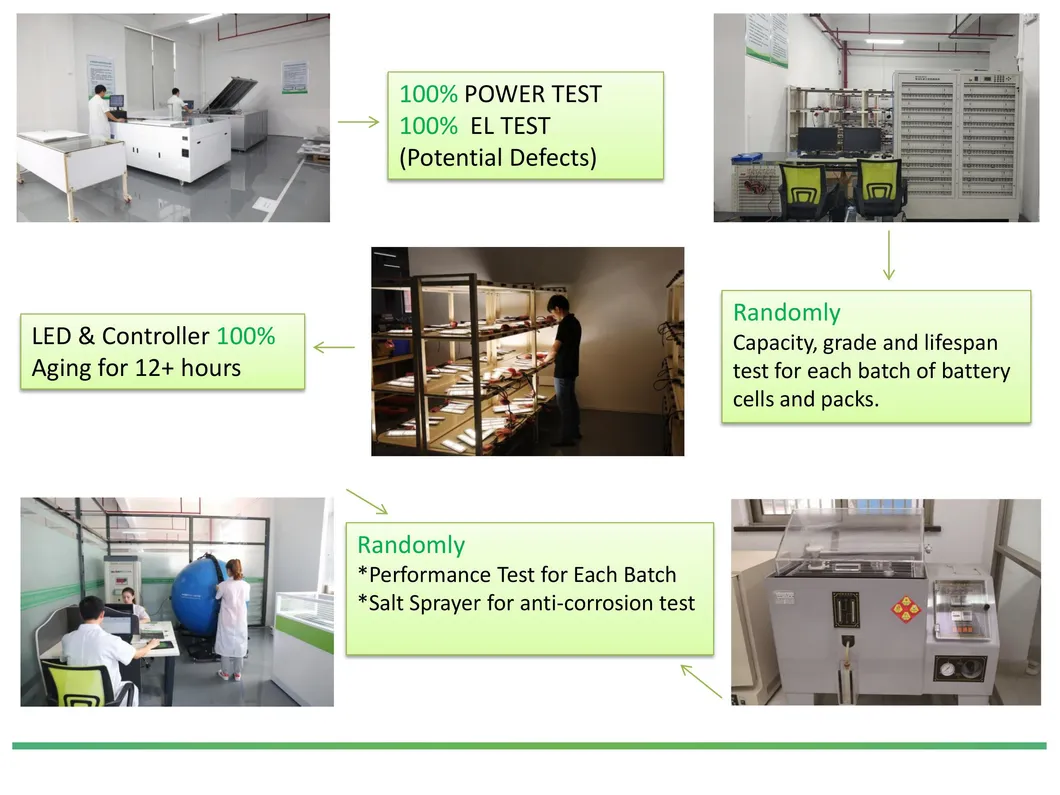

CERTIFICATIONS & QUALITY

GLOBAL EXHIBITIONS

❓

Frequently Asked Questions

Does the lamp light on automatically?

Yes, it will light on automatically at darkness in all modes except "OFF".

Can I order samples for solar street light?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

What is the lead time for orders?

Typically 3 workdays for samples and 7-15 workdays for batch orders (over 100PCS).

Do you offer a guarantee for the products?

Yes, we offer a 3-5 year warranty on our products.

Can the lamp be used in strong wind environments?

Yes, the lamp features an Aluminum-alloy holder that is solid, firm, zinc-plated, and anti-rust/corrosion.

What is the difference between Motion sensor and PIR sensor?

Motion (radar) sensors emit high-frequency waves to detect movement up to 10 meters accurately. PIR sensors detect temperature changes and usually have a shorter range of 3-5 meters.
