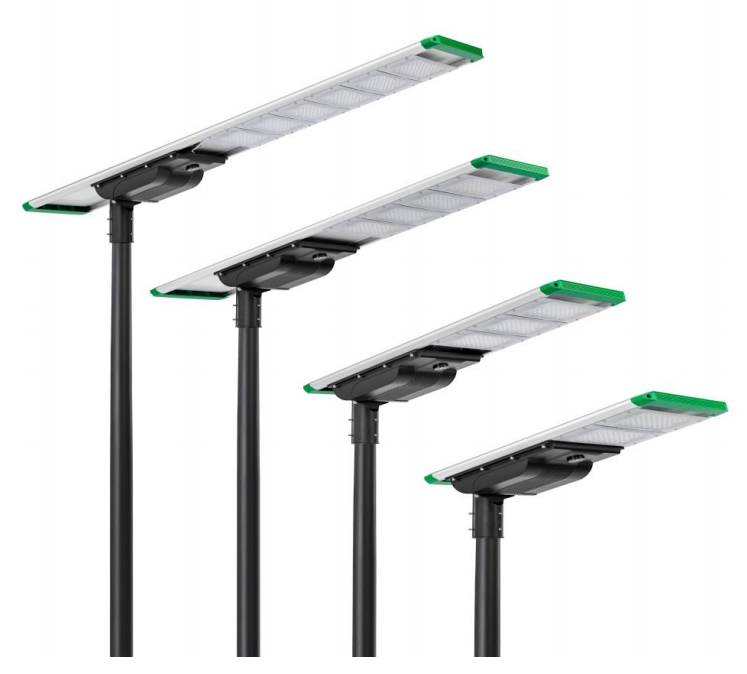

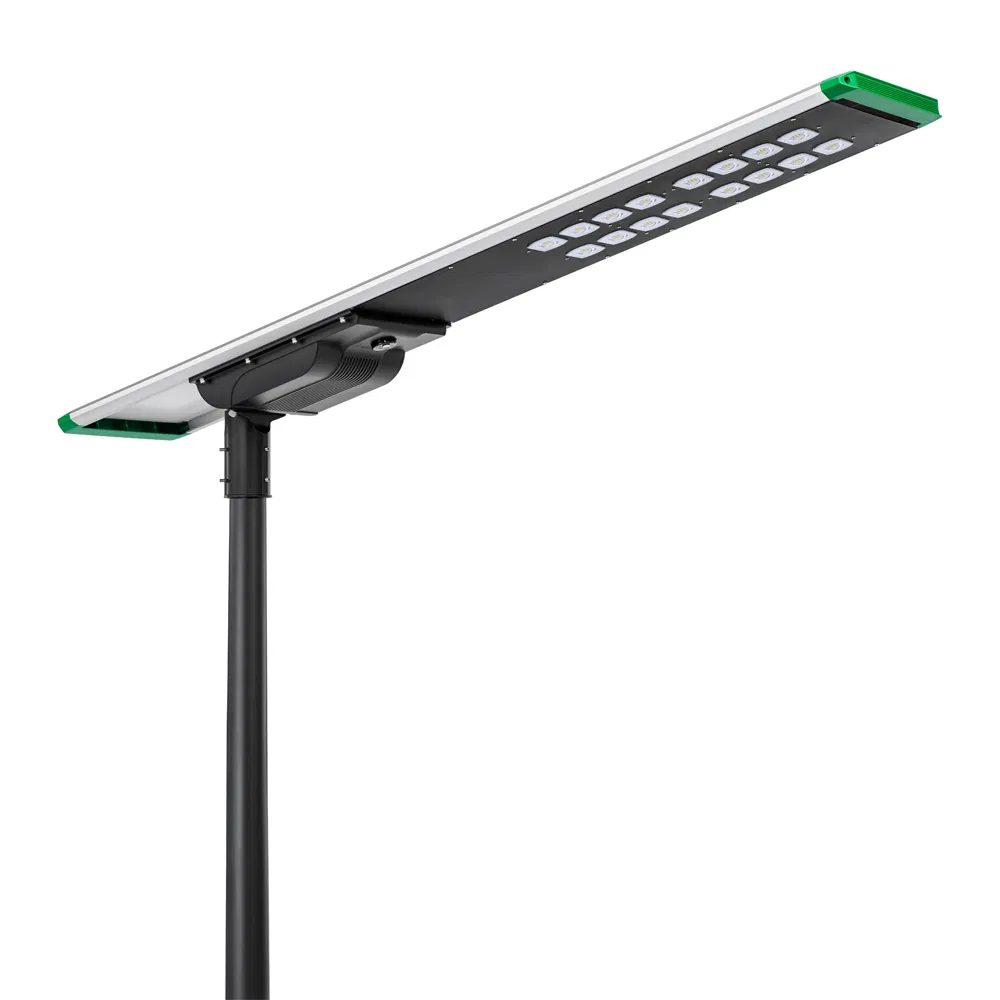

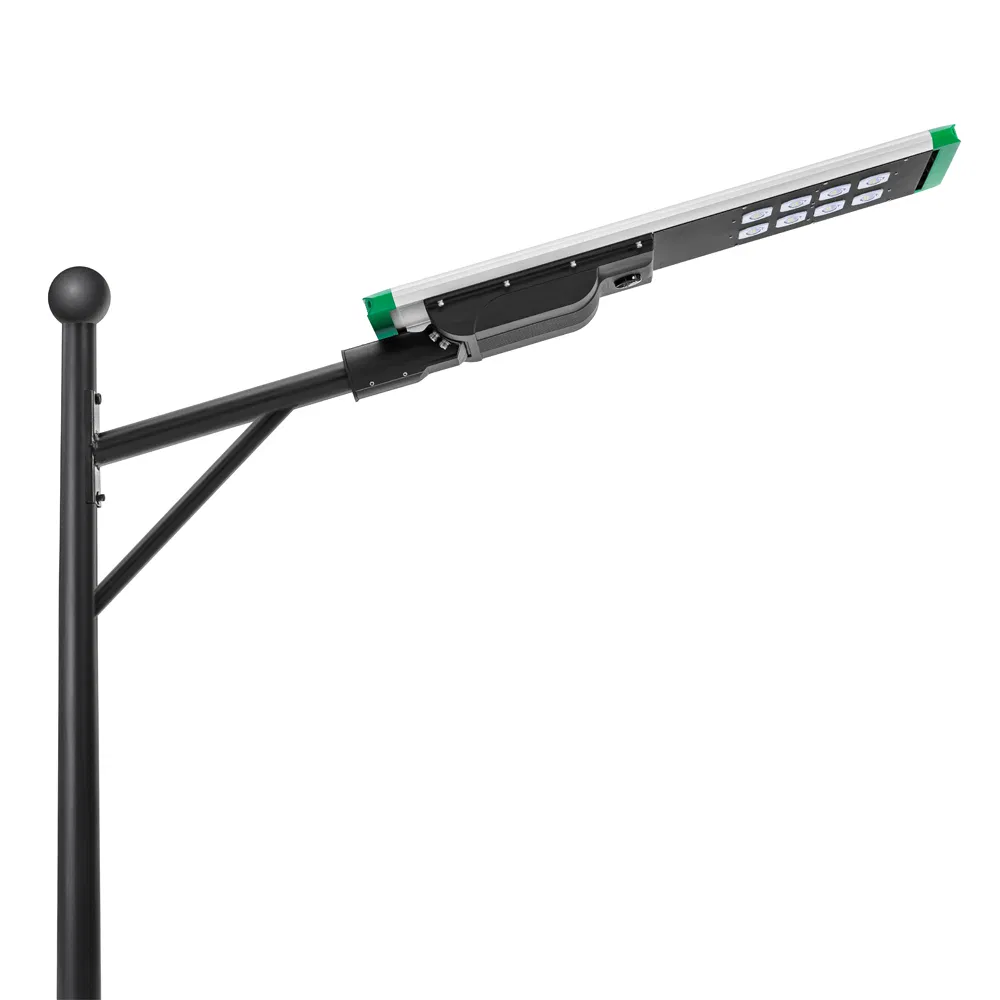

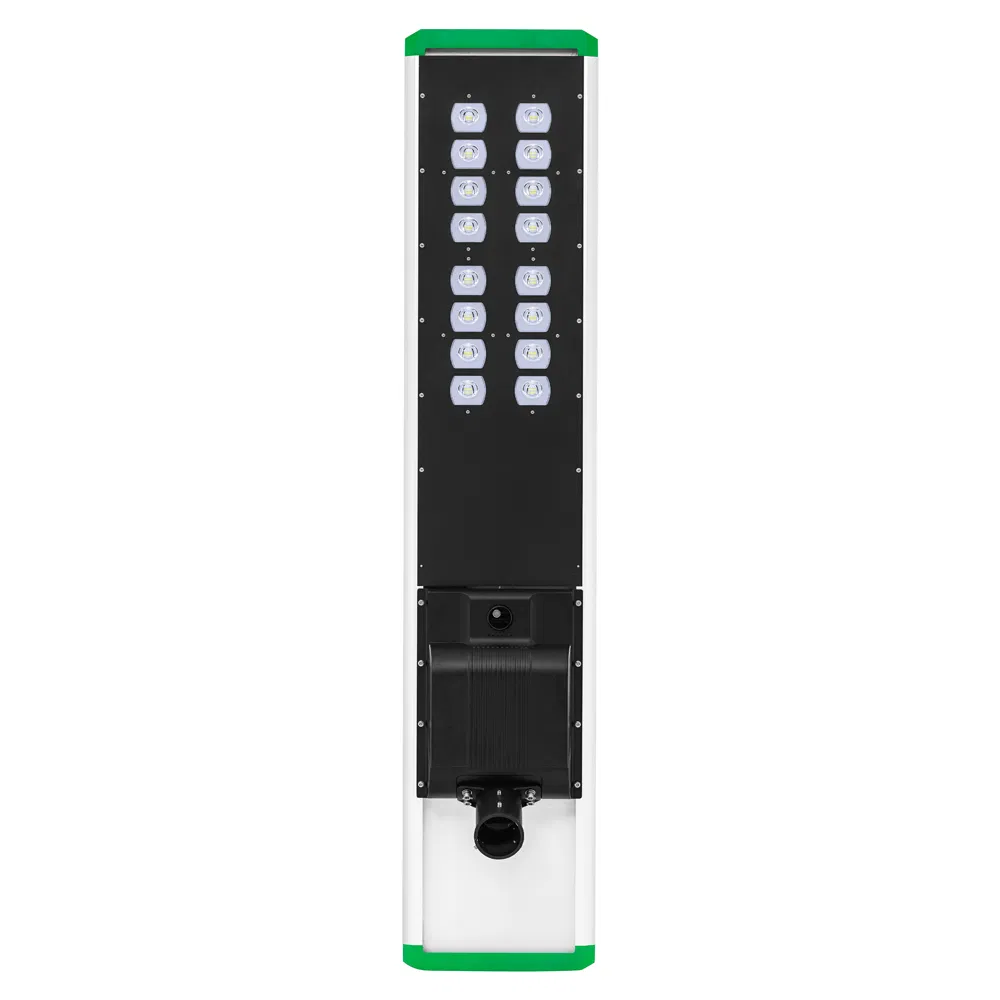

Smart Integrated Solar Street Light with IoT Zhaga Motion Sensor

Basic Specifications

Model NO.

JKC-FX-120W

Light Source

LED

Material

Aluminum Alloy

Power

120W

Illumination Time

12h

Cell Type

LiFePO4

IP Rating

IP66

Certification

CE, RoHS, Ik09/IEC/Ies

Warranty

3-Year

LED Brand

USA Bridgelux 3030

Controller

MPPT

Solar Panel

Mono

Product Advantages

💡

Professional Design

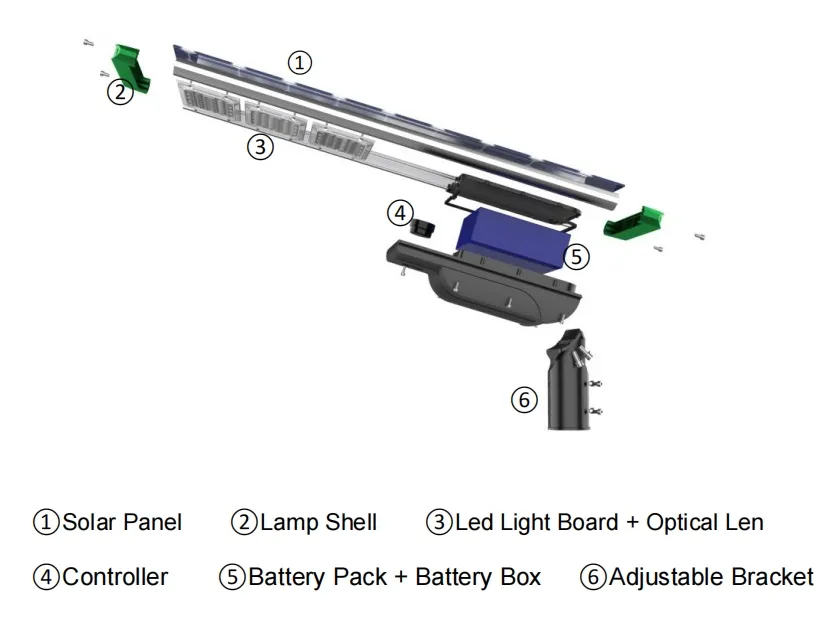

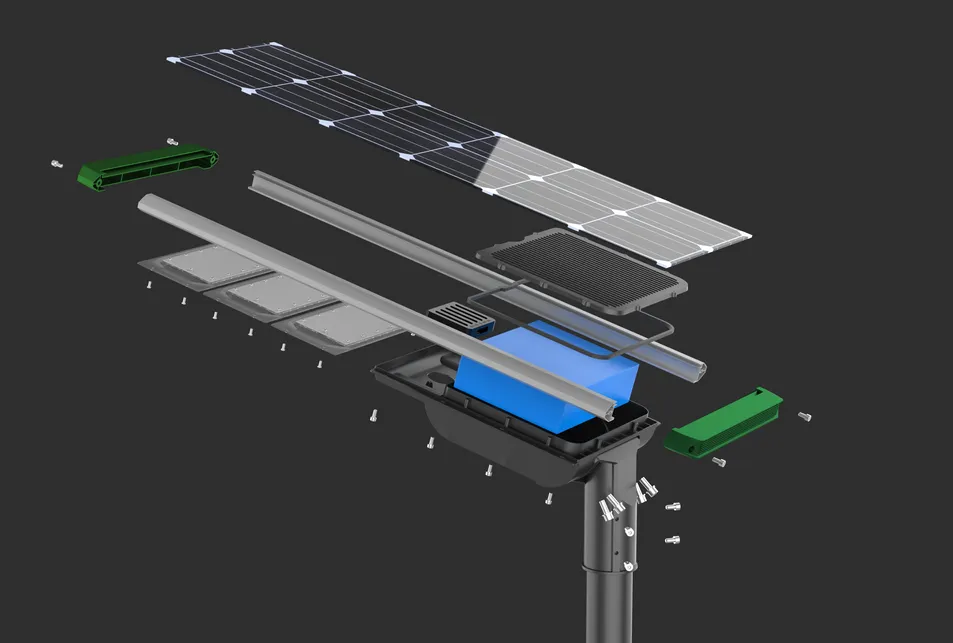

Designed by a professional industrial team, integrating solar panels, LED sources, controller, battery, and motion sensor into a sleek housing.

⚙️

Flexible Installation

Equipped with an adjustable angle mounting bracket, suitable for various lamp pole installation methods and modeling.

🧠

Smart Management

Intelligent power adjustment and automatic weather judgment for reasonable discharge planning. Features soft and hard double protection for over 2000 battery cycles.

Comparison Specifications

Model	Lamp Power	Battery Capacity	Solar Panel	Install Height	Lamp Size
JKC-FX-40W	40W	12.8V 358.4WH	18V 65W	4-7 m	848.6385.5108mm
JKC-FX-60W	60W	12.8V 512WH	18V 80W	6-8 m	1077.6385.5180mm
JKC-FX-80W	80W	12.8V 729.6WH	18V 100W	7-9 m	1548.68385.41108mm
JKC-FX-100W	100W	12.8V 806.4WH	18V 130W	8-10 m	1863385.5108mm
JKC-FX-120W	120W	12.8V 921.6WH	18V 140W	9-12 m	1863385.5108mm

Smart Remote & Efficiency

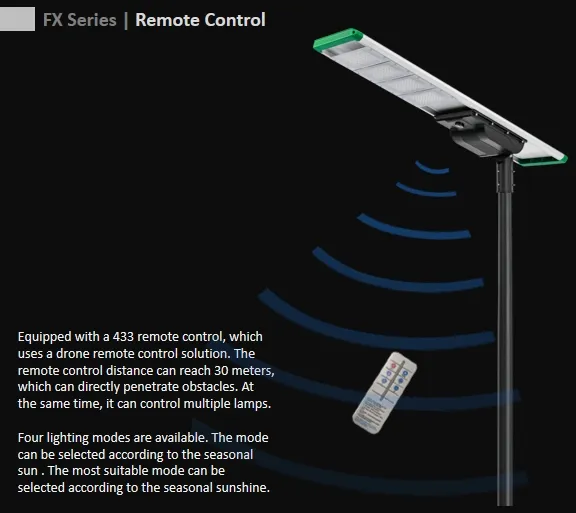

Drone remote control, ultra-long distance of 30 meters, passing through obstacles.

High-efficiency chips reaching 220LM/W, 140-degree luminous angle.

Modular minimalist design for easy disassembly, installation, and transport.

Frequently Asked Questions

Why choose integrated all-in-one solar street lights?

Integrated designs simplify installation and maintenance. With over 12 years of experience, our lights feature top-quality LEDs and strict quality control for long-lasting performance.

What is the warranty period for these solar lights?

Standard warranty is 3 or 5 years. Any quality issues within this period are covered with free replacements. Extended warranties are available upon request.

What color temperatures are available?

Typically, we provide 6000-6500K. However, we can offer custom ranges from 2700K to 7000K to meet your project needs.

How do the lights perform in rainy or snowy weather?

The lights are IP66 waterproof. After a full charge, the high-capacity LiFePO4 battery can keep the light working for 3-7 continuous rainy or snowy days.

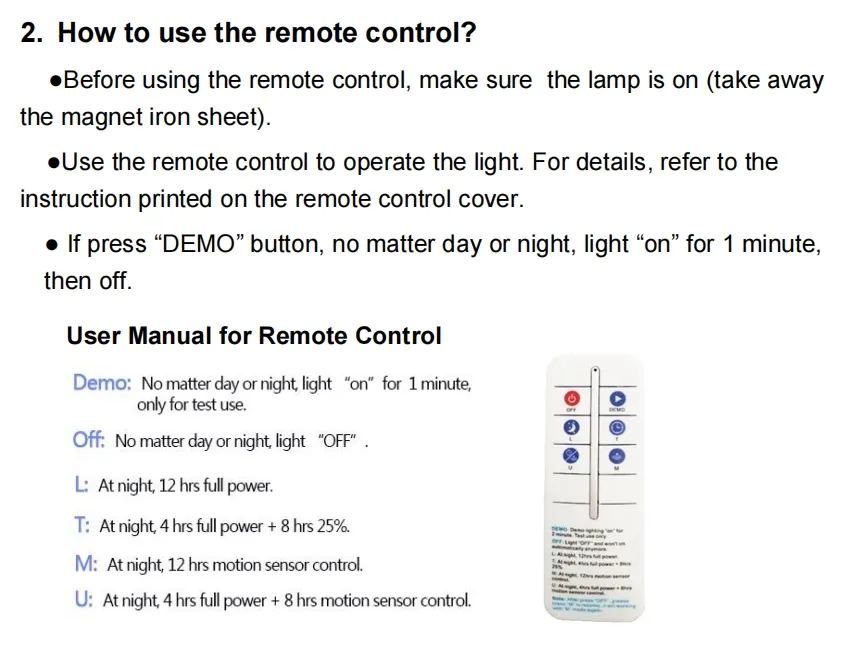

How far is the remote control range?

The smart drone remote control features an ultra-long range of up to 30 meters and can successfully transmit signals through obstacles.

What is the shipping time for international orders?

Sample orders by air take 3-6 days. Bulk orders shipped by sea typically take 15-35 days depending on the destination location.
