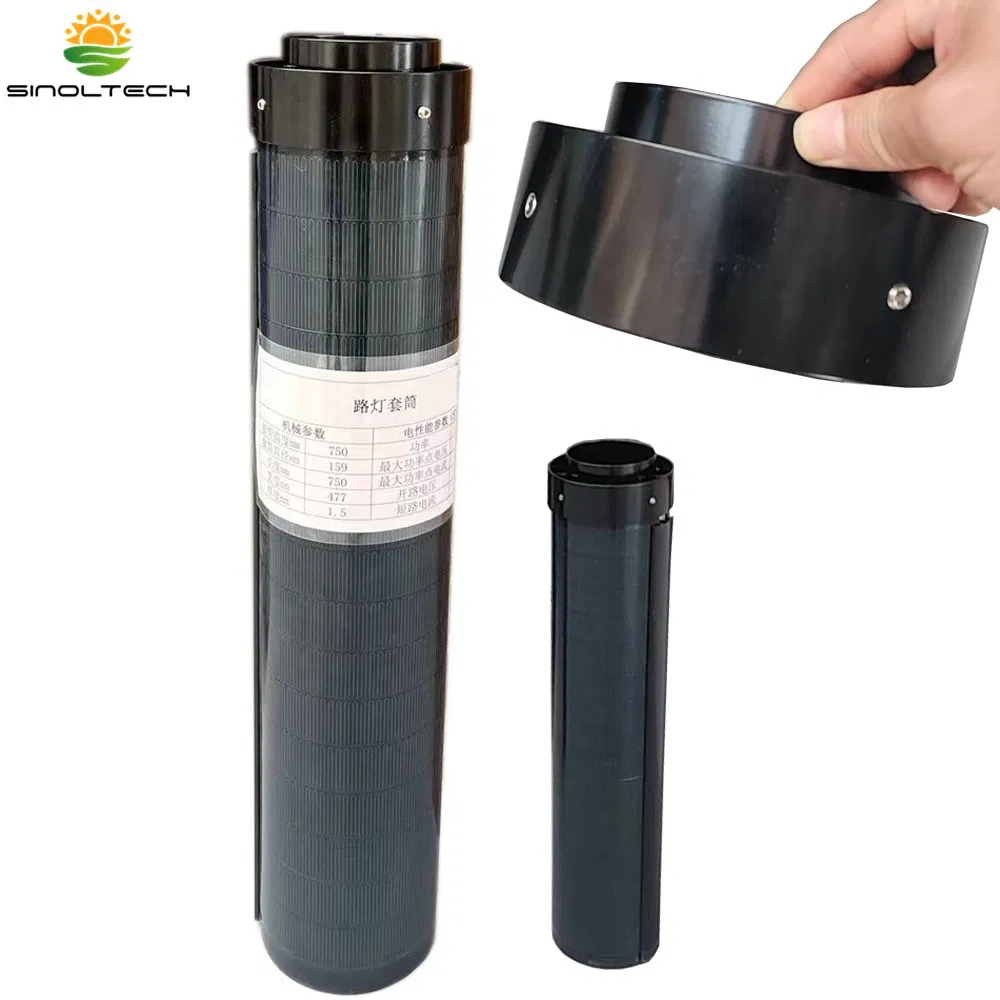

W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
1 / 5
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole
W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole

W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
W135
Number of Cells
36pcs
Material
CIGS Flexible Solar Panel
Product Name
135W Flexible Solar Panel CIGS Module Tube
Solar Panel Type
CIGS Cell Thin Film
Unit Tube Power
135W
Unit Tube Voltage
18V
System Voltage
12V
Tube Dimension
φ219*1500 mm
Inner Tube Range
φ140 ~165 mm
Weight
14kg
Certification
CE
Product Description

W135 135W Vertical Cylinder Solar Tube for Vertical Solar Wrap Light Pole

This innovative design integrates CIGS thin film solar panels with a durable metal tube, specifically engineered for easy mounting onto light poles. It provides an aesthetical and efficient solution for modern solar street lighting.

360 Degrees Charging: Round wrapping module ensures full-day solar collection from all angles.

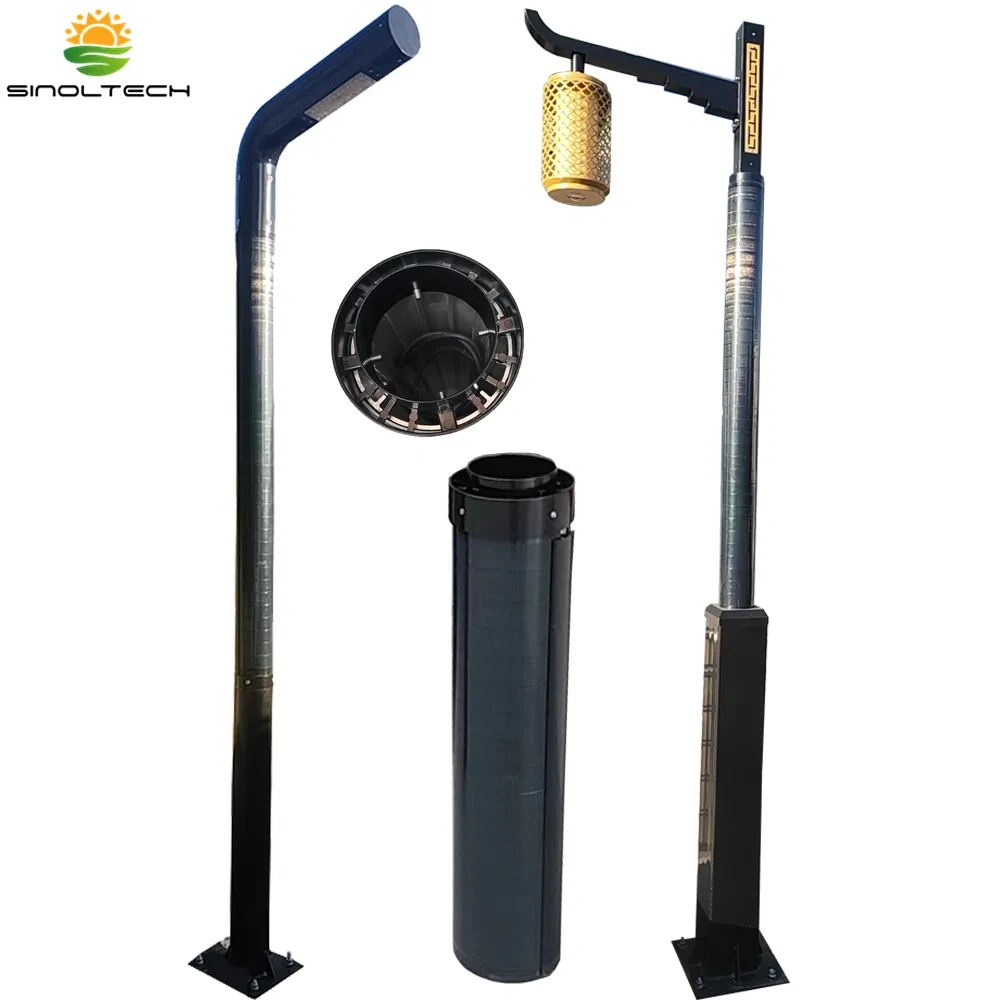

Universal Application: Suitable for any pole type; can be retrofitted onto existing infrastructure without dismantling.

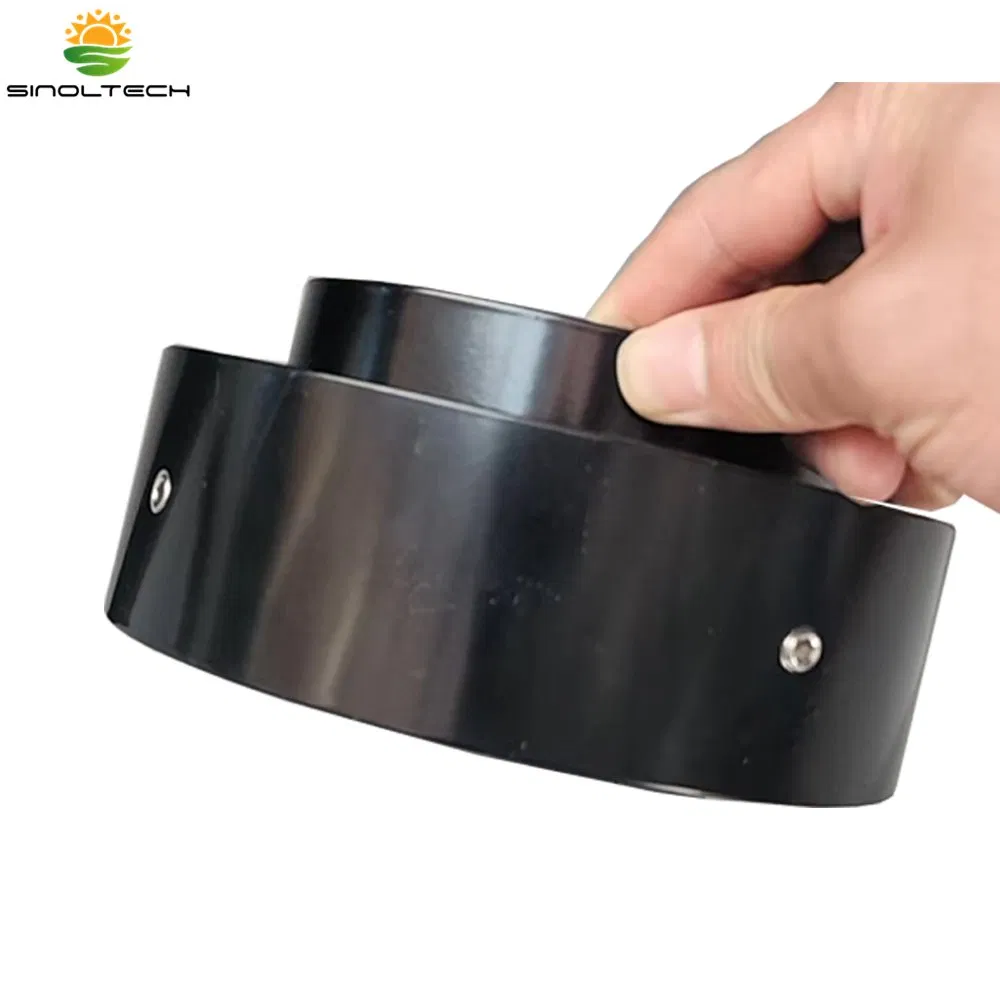

Easy Installation: Mounts securely using provided fixing hoops for a quick setup.
Wind & Snow Resistance: Vertical mounting reduces wind drag and prevents snow or dust accumulation, ensuring long-term output.

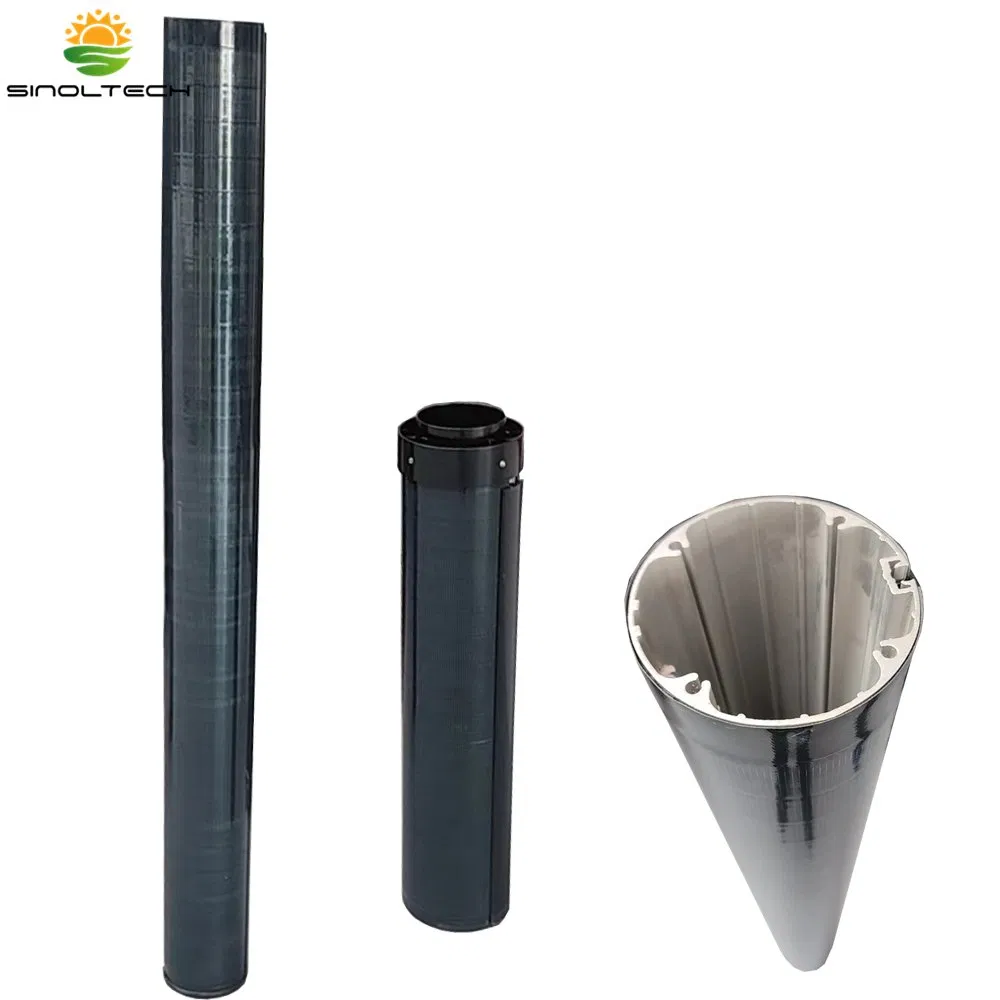

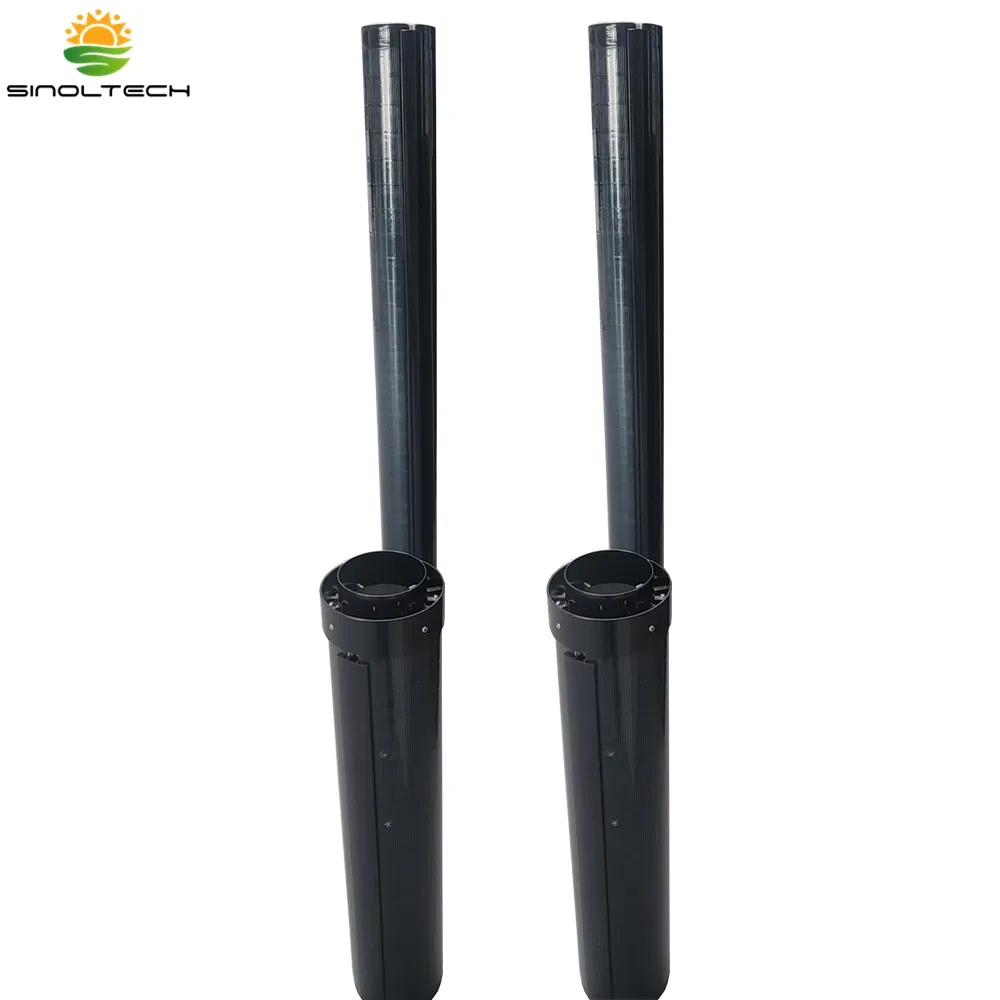

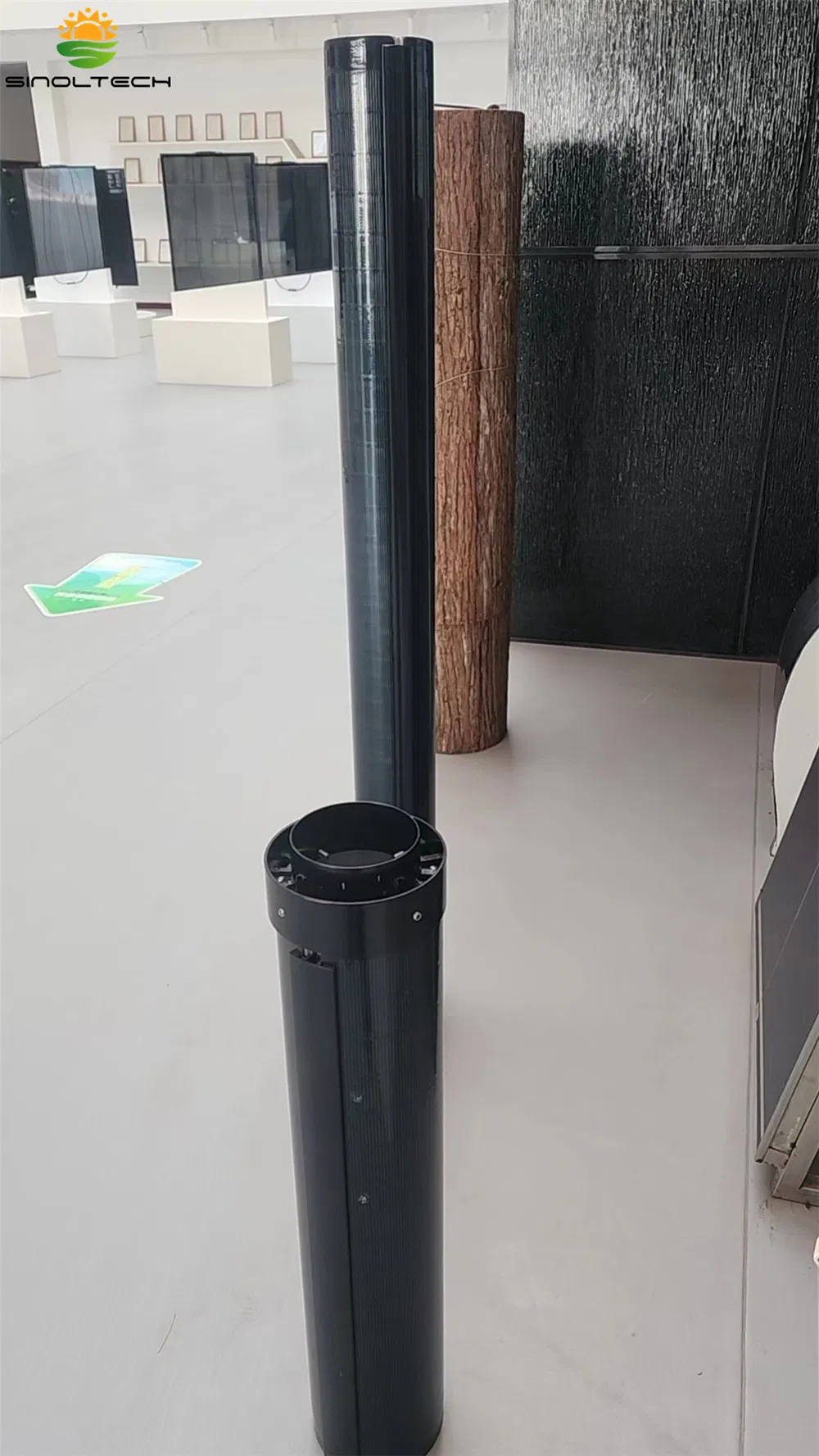

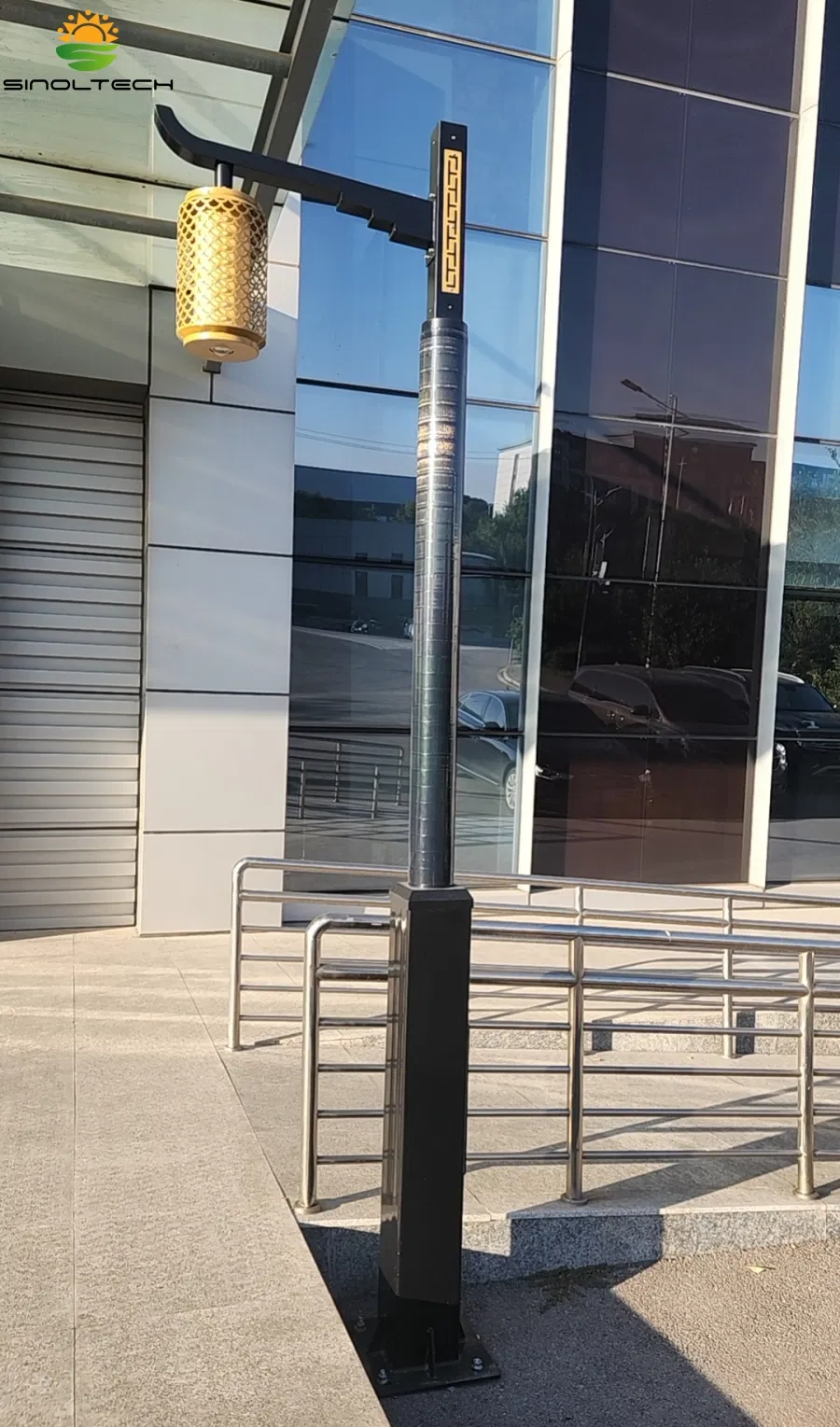

W135 Solar Tube Details Vertical Solar Wrap Analysis
Product Parameters & Features
Integrated Design: Aluminum alloy profile structure with high strength and corrosion resistance.
High-Efficiency CIGS: Flexible modules offer superior low-light performance compared to crystalline silicon.
Safety & Reliability: 12V system voltage, ideal for off-grid energy storage systems.
Flexible Sizing: Power range from 20W to 160W to meet diverse municipal lighting needs.

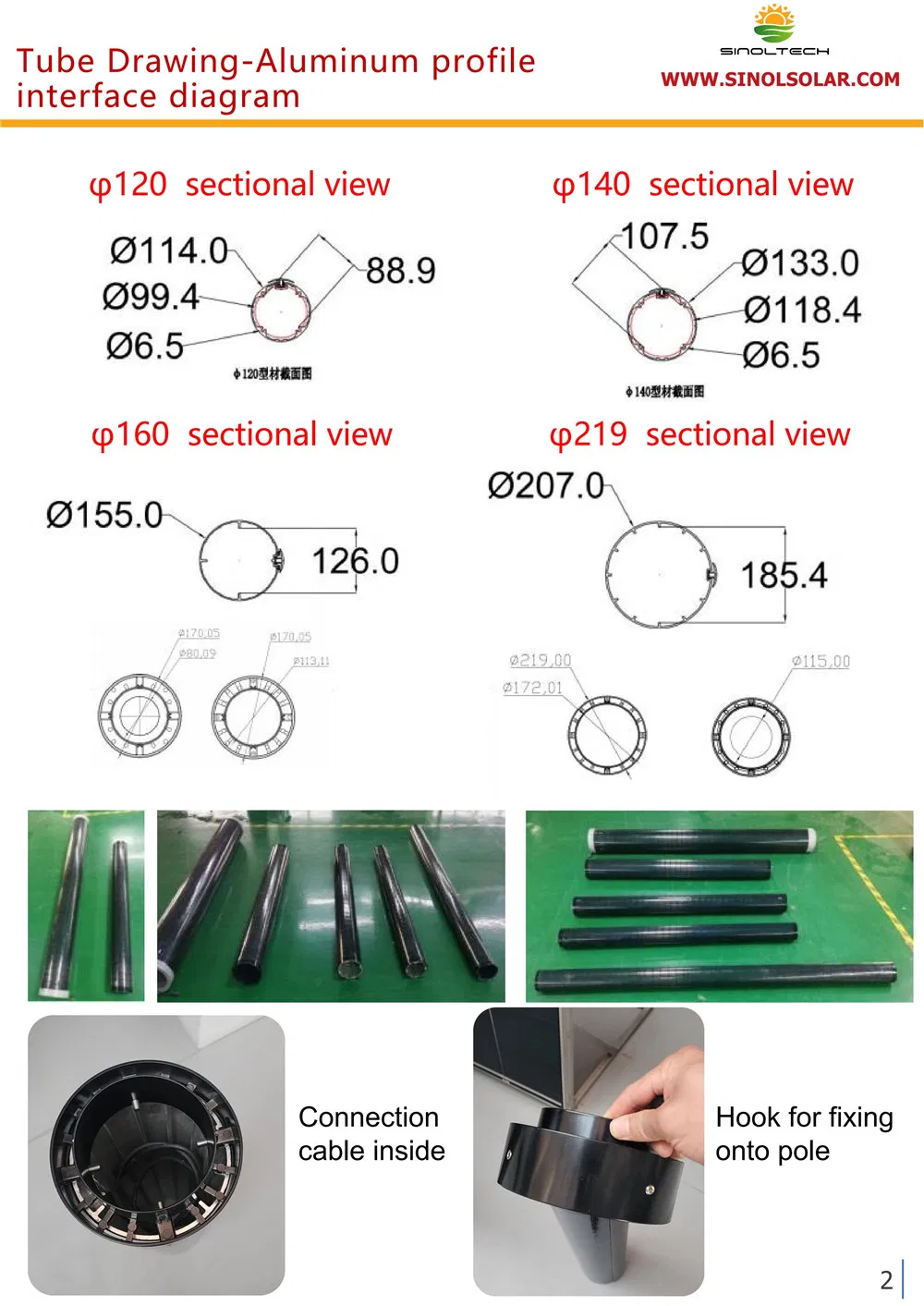

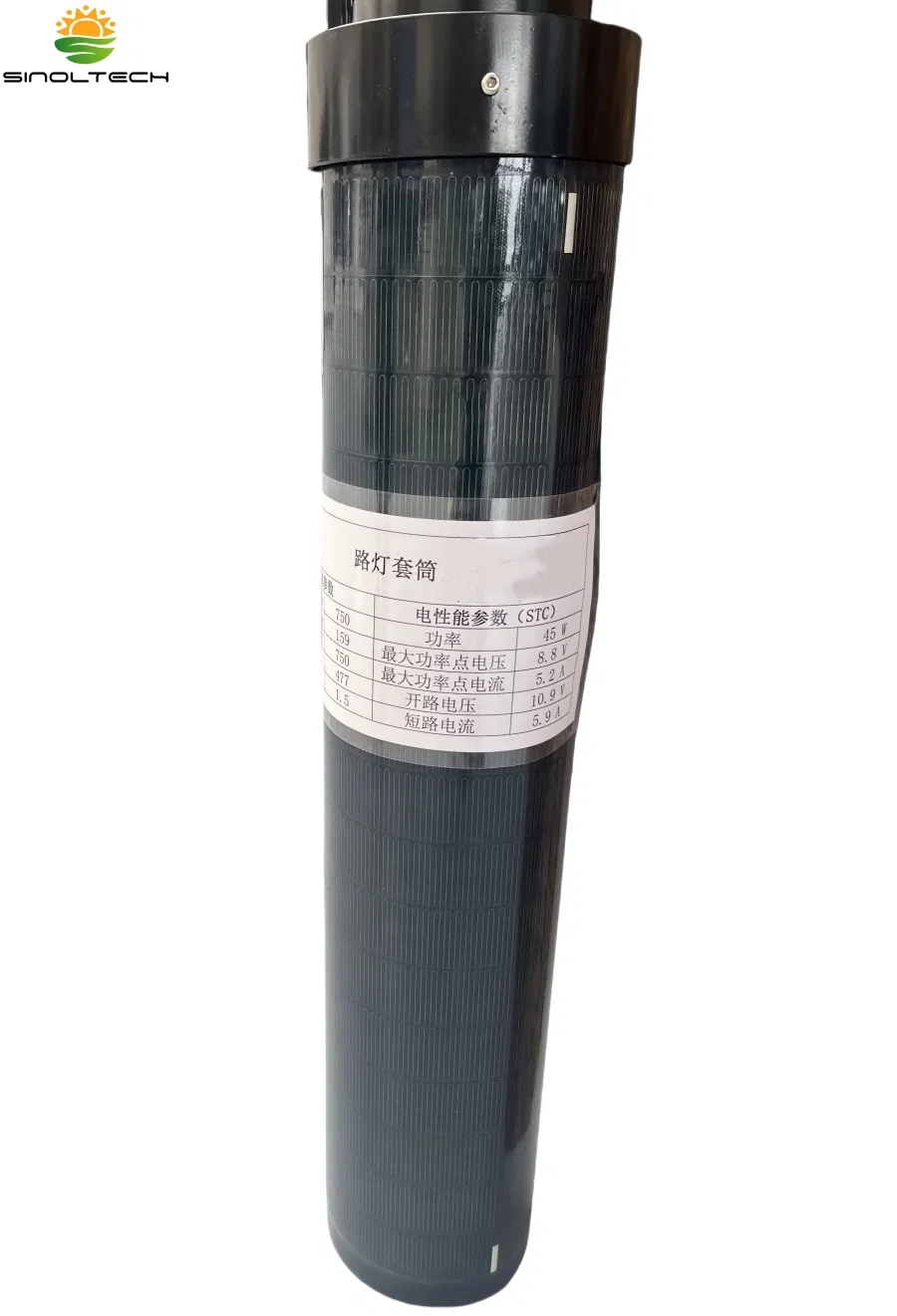

Solar Tube Parameters Installation Dimensions
Application Scenarios

Ideal for urban renewal, smart city projects, and rural beautification. This system replaces cluttered external panels with a sleek, integrated look.

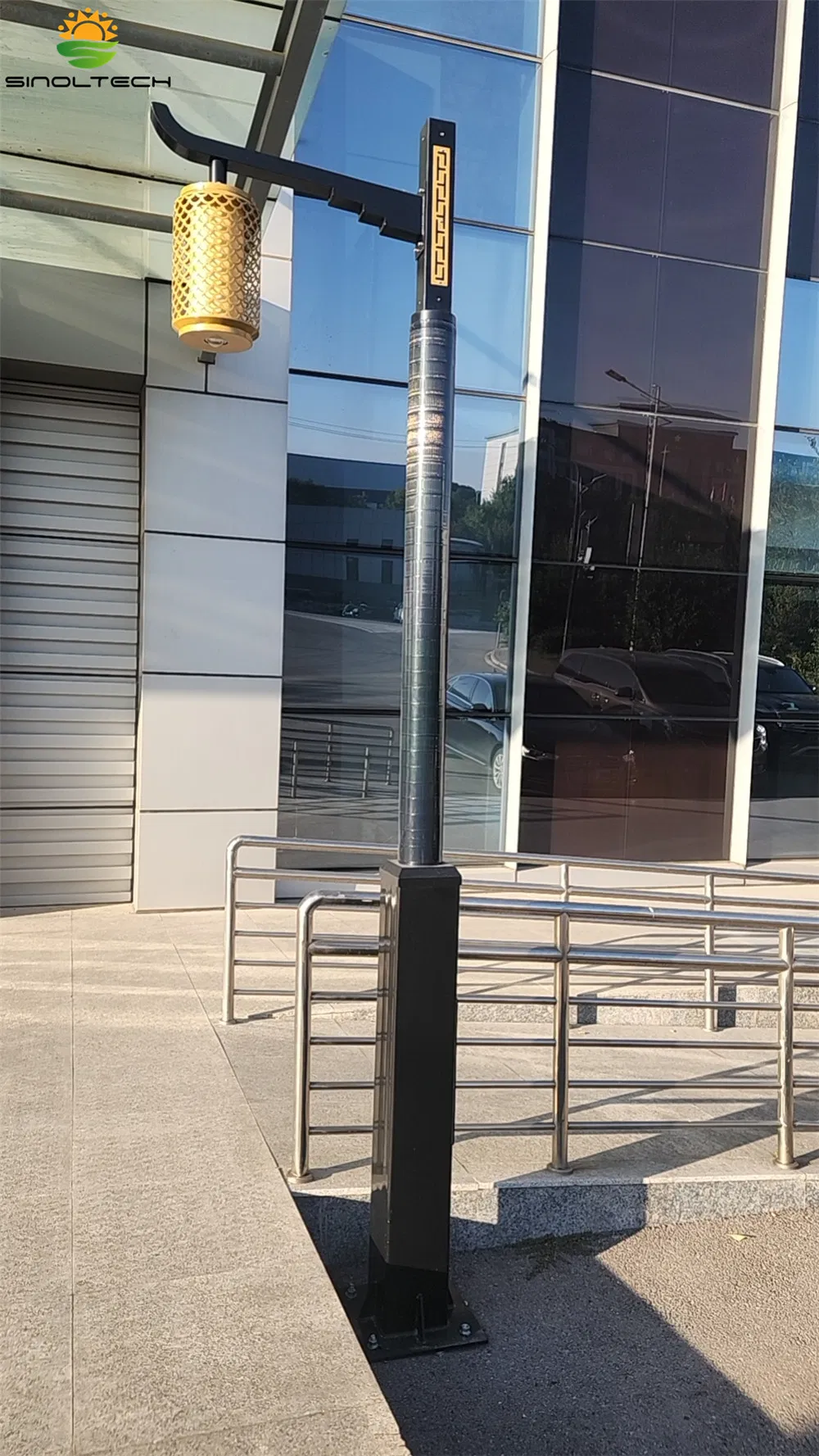

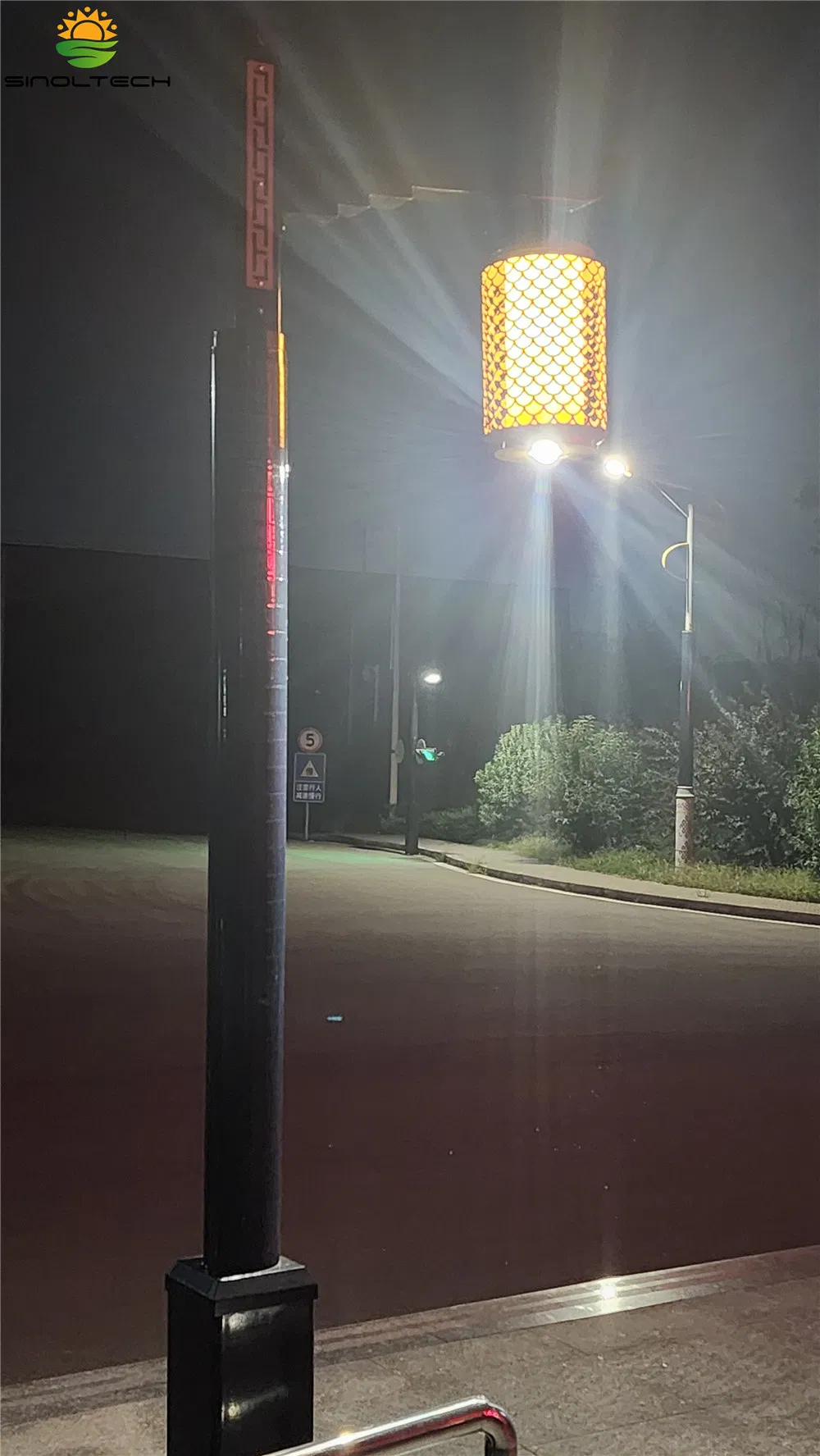

Streetlight Application Garden Light Application

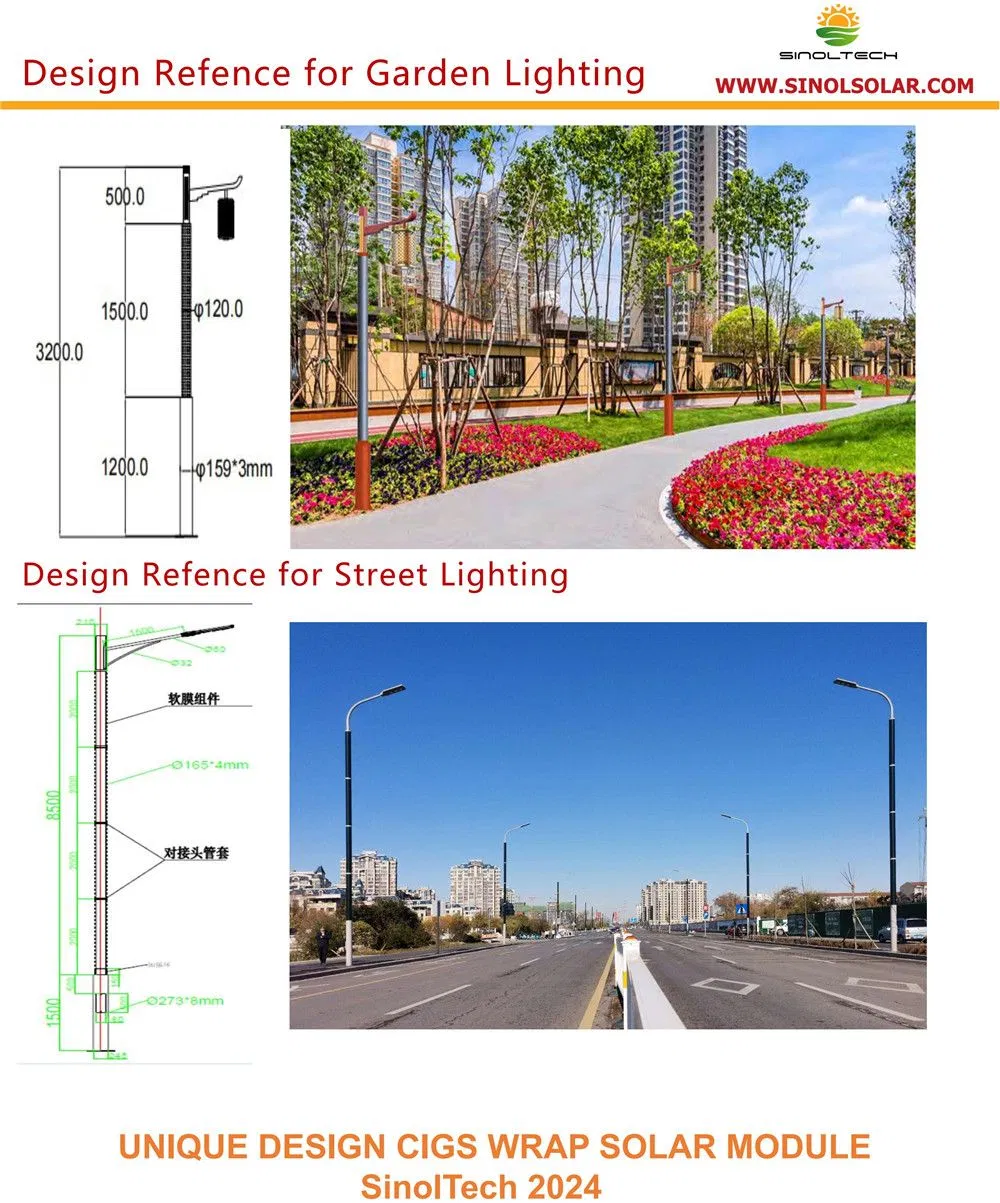

Landscape Lighting Project
Technical Advantages
Superior Aesthetics: Blends seamlessly with street furniture and architectural designs.
Lower Load: Light-weight CIGS panels reduce the structural stress on poles.
Extreme Weather Durability: Highly resistant to moisture, UV, and temperature variations.
Low Maintenance: Vertical design is self-cleaning regarding dust and snow.

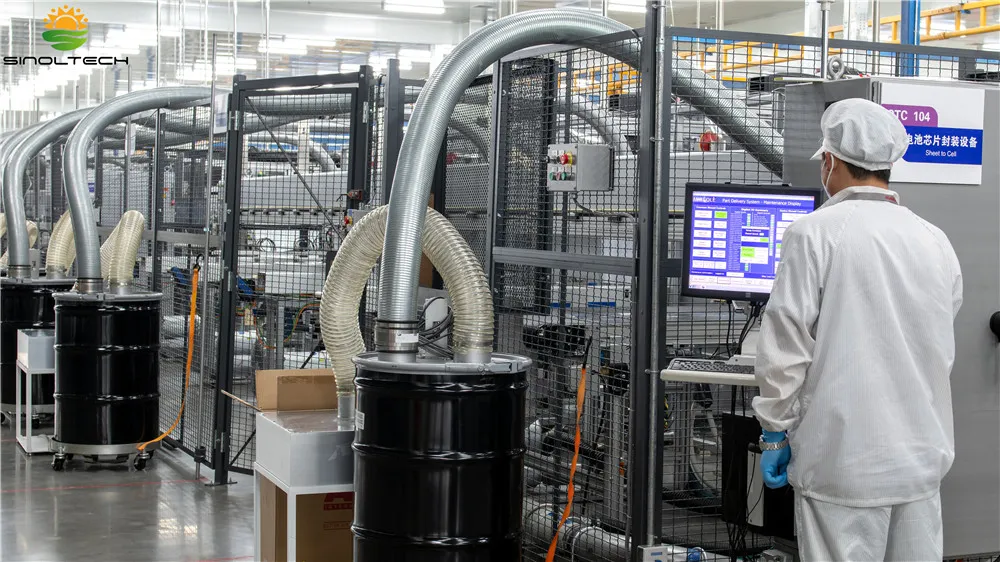

Quality Control Technical Design
Certifications

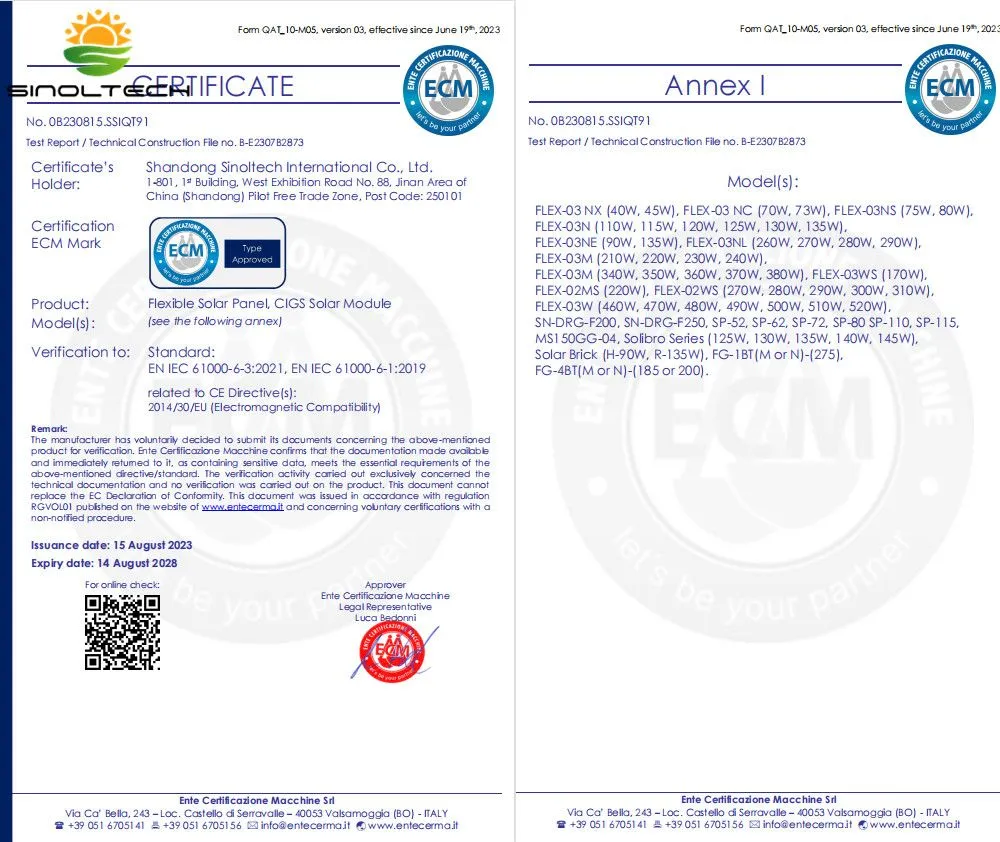

Product Certifications
Frequently Asked Questions
What are the main benefits of CIGS technology for solar tubes?
CIGS (Copper Indium Gallium Selenide) thin-film panels are flexible, lightweight, and perform better in low-light or shaded conditions compared to traditional rigid panels. Their ability to wrap around cylindrical surfaces makes them perfect for pole integration.
Can these solar tubes be installed on existing street light poles?
Yes, the design is specifically intended for both new projects and retrofitting. They can be mounted onto existing poles using a provided fixing hoop without needing to dismantle the pole.
How does vertical installation compare to traditional angled panels?
While angled panels maximize peak sun, vertical 360-degree wrapping captures sunlight throughout the entire day. Additionally, vertical mounting is far superior for preventing snow accumulation and reducing wind resistance.
What pole diameters are compatible with the W135 model?
The W135 tubular structure is adaptable to light poles with diameters ranging from φ60mm to φ165mm.
Is the system suitable for harsh environmental conditions?
Absolutely. The CIGS panels and aluminum alloy structure are highly resistant to moisture, UV radiation, and extreme temperature variations, ensuring reliability in diverse climates.
What is the typical maintenance required?
Maintenance is minimal. The vertical orientation naturally sheds dust and debris during rain, and there are no moving parts. The internal cable channels also make any necessary electrical inspections very simple.
