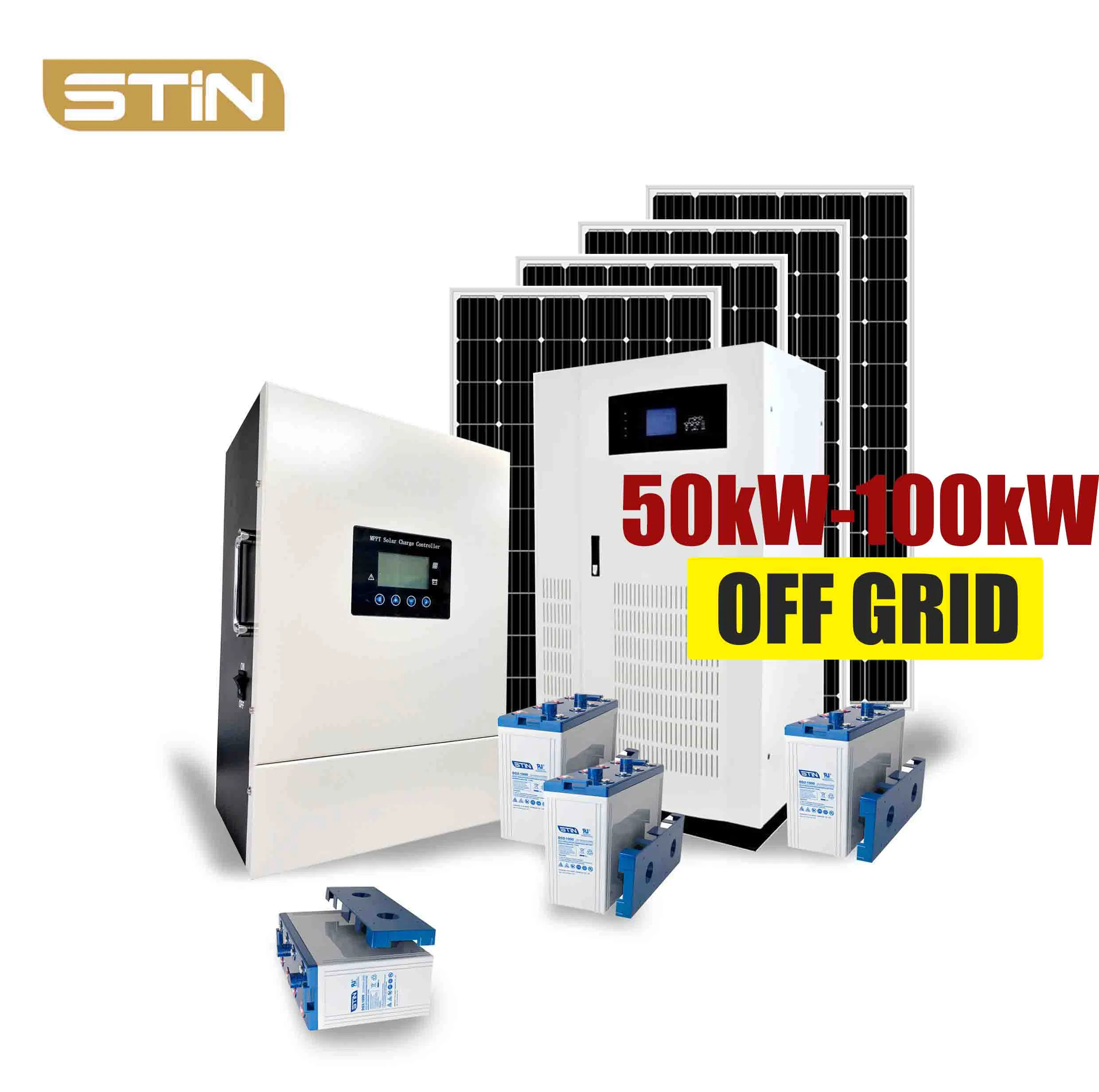

| 50KW System Components | ||||
|---|---|---|---|---|
| No. | Name | Specification | Qty | Remark |

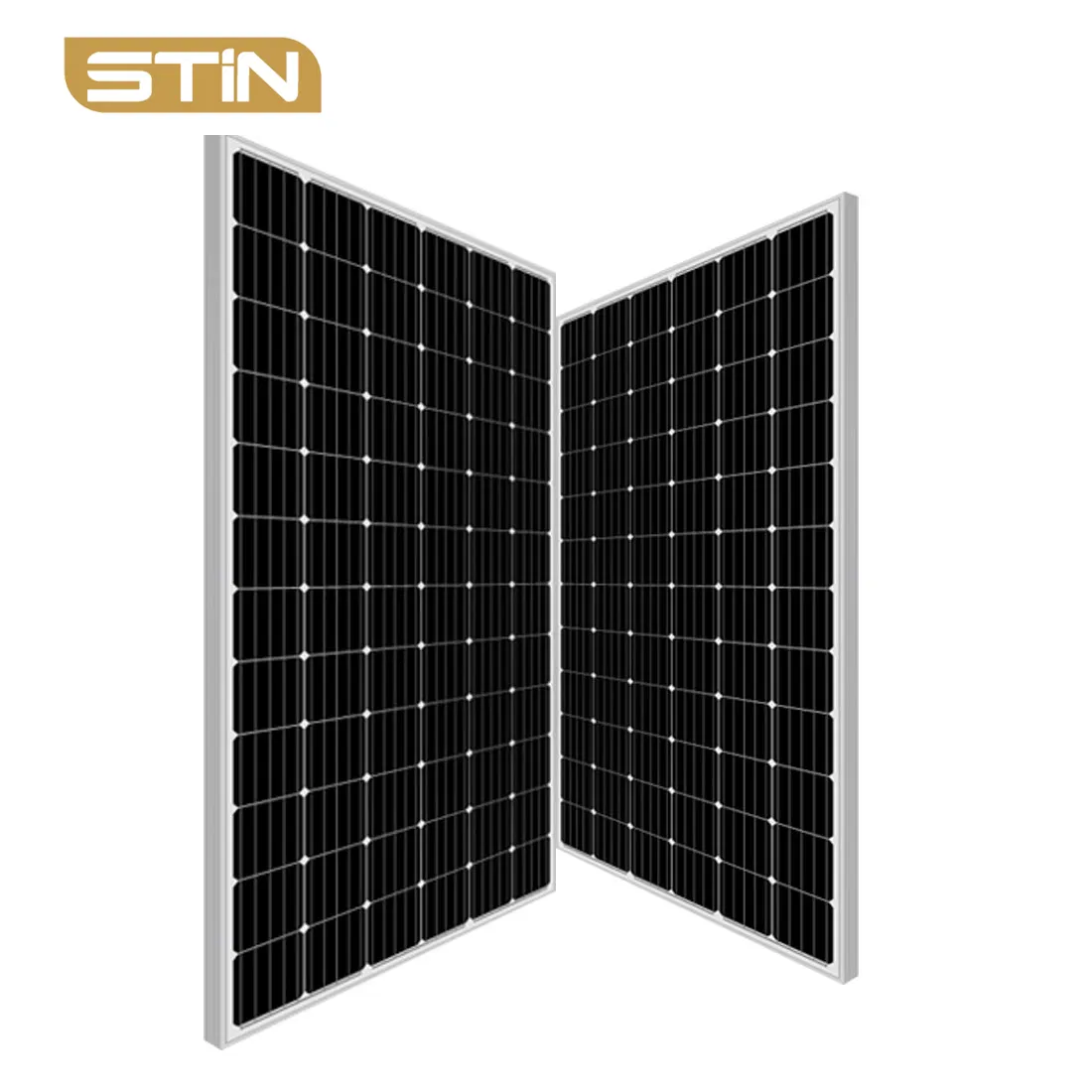

| 1 | Mono Panel | 410W | 90 | Grade A cells, 9 strings |

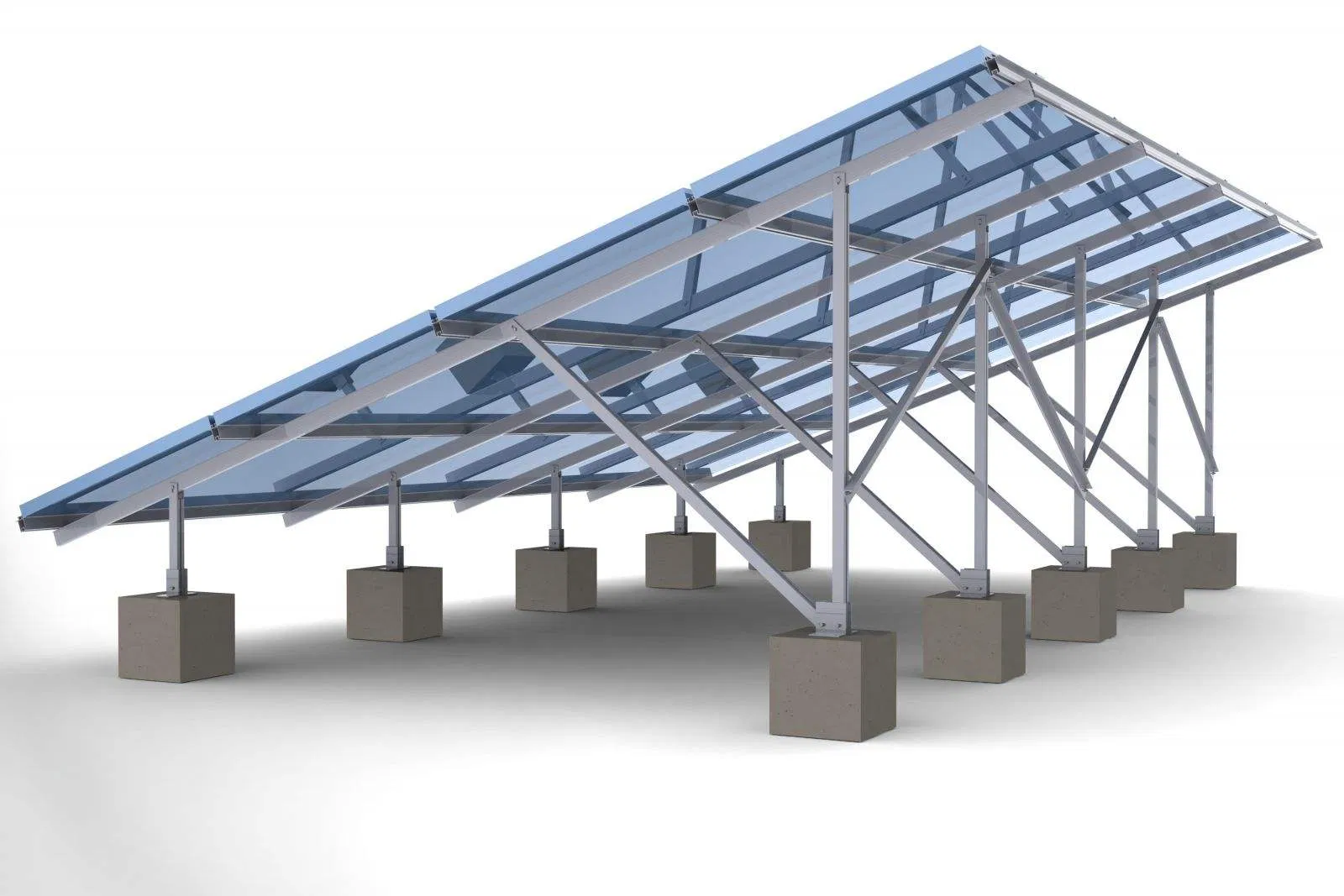

| 2 | Bracket | C-shaped steel | 1 | Ground type |
| 3 | Combiner Box | 3 inputs, 1 output | 1 | Waterproof, lightning protection |

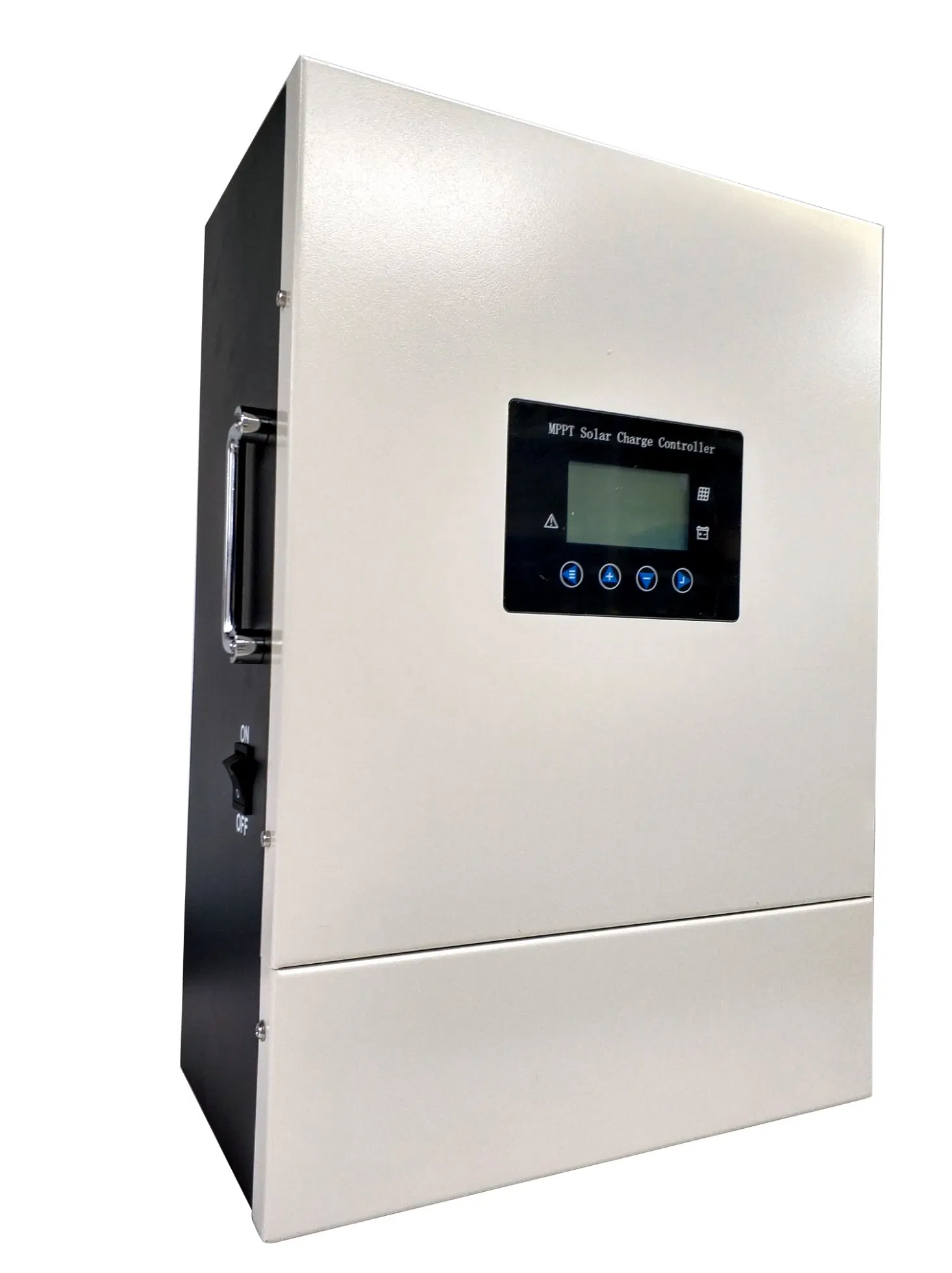

| 4 | MPPT Controller | 220V/150A | 1 | 3PV input ports |
| 5 | Inverter | Pure sine wave, 50KW/220V | 1 | 3 Phase, frequency inverter |

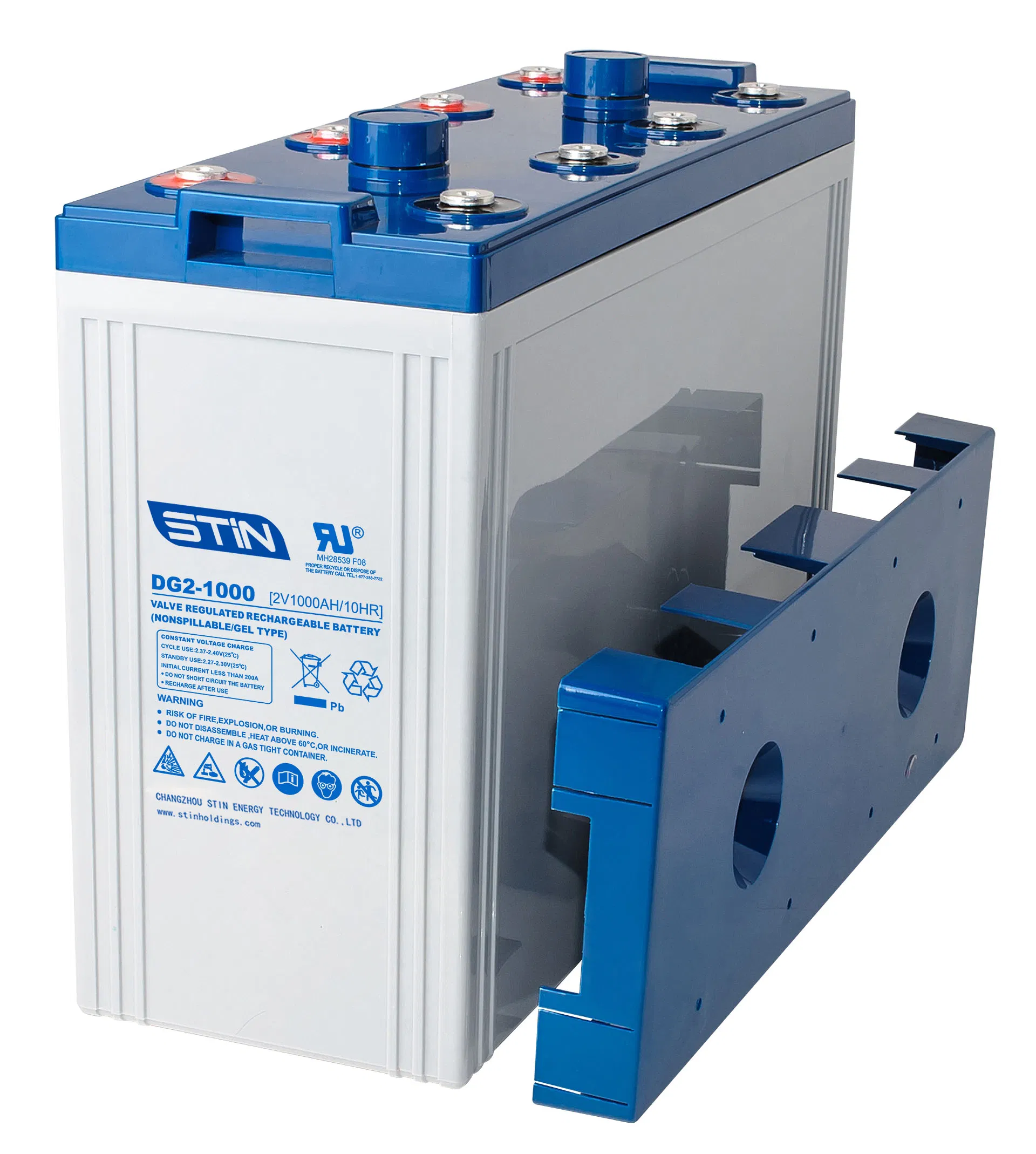

| 6 | Gel Battery | 2V800AH | 110 | Includes cables and rack |
| 60KW System Components | ||||
|---|---|---|---|---|
| No. | Name | Specification | Qty | Remark |
| 1 | Mono Panel | 380W | 112 | Grade A cells, 8 strings |
| 3 | Combiner Box | 4 inputs, 1 output | 2 | Waterproof, DC breaker |
| 4 | MPPT Controller | 360V/60A | 2 | High efficiency MPPT |
| 5 | Inverter | Pure sine wave, 60KW/360V | 1 | 380VAC Output |
| 6 | Gel Battery | 2V600AH | 180 | Deep cycle |
| 80KW System Components | ||||
|---|---|---|---|---|
| 1 | Mono Panel | 380W | 150 | 15pcs in string, 10 strings |
| 4 | MPPT Controller | 360V/80A | 2 | Dual control |
| 5 | Inverter | Pure sine wave, 80KW/360V | 1 | Maximum load 26.7KW per phase |
| 6 | Gel Battery | 2V800AH | 180 | Complete with rack |
| 100KW System Components | ||||
|---|---|---|---|---|
| 1 | Mono Panel | 380W | 180 | 15pcs in string, 12 strings |
| 4 | MPPT Controller | 360V/100A | 2 | High power control |
| 5 | Inverter | Pure sine wave, 100KW/360V | 1 | Power frequency inverter |
| 6 | Gel Battery | 2V1000AH | 180 | Deep cycle storage |
In a world facing energy instability and environmental challenges, clean sustainable solar energy is the essential solution for the future. We provide a Total Solution approach covering everything from high-quality components to full system implementation.
Our expertise includes polysilicon, wafers, cells, and modules, as well as PV equipment and EPC services. We are dedicated to promoting green energy independence globally, providing high-quality raw materials and residential solutions to various international markets to solve global environmental issues.
We understand the importance of green energy and endeavor to protect these precious values through innovation and reliability.
