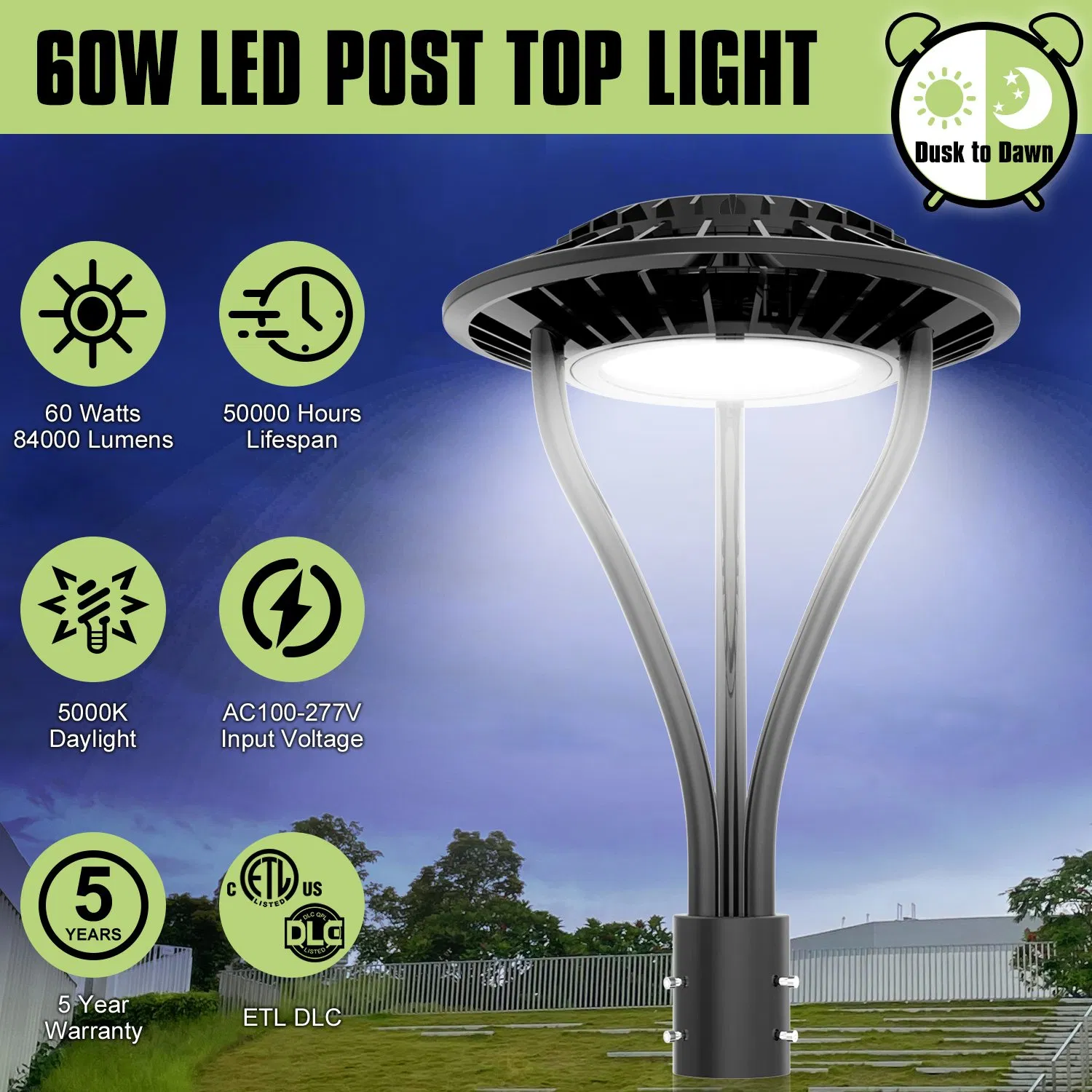

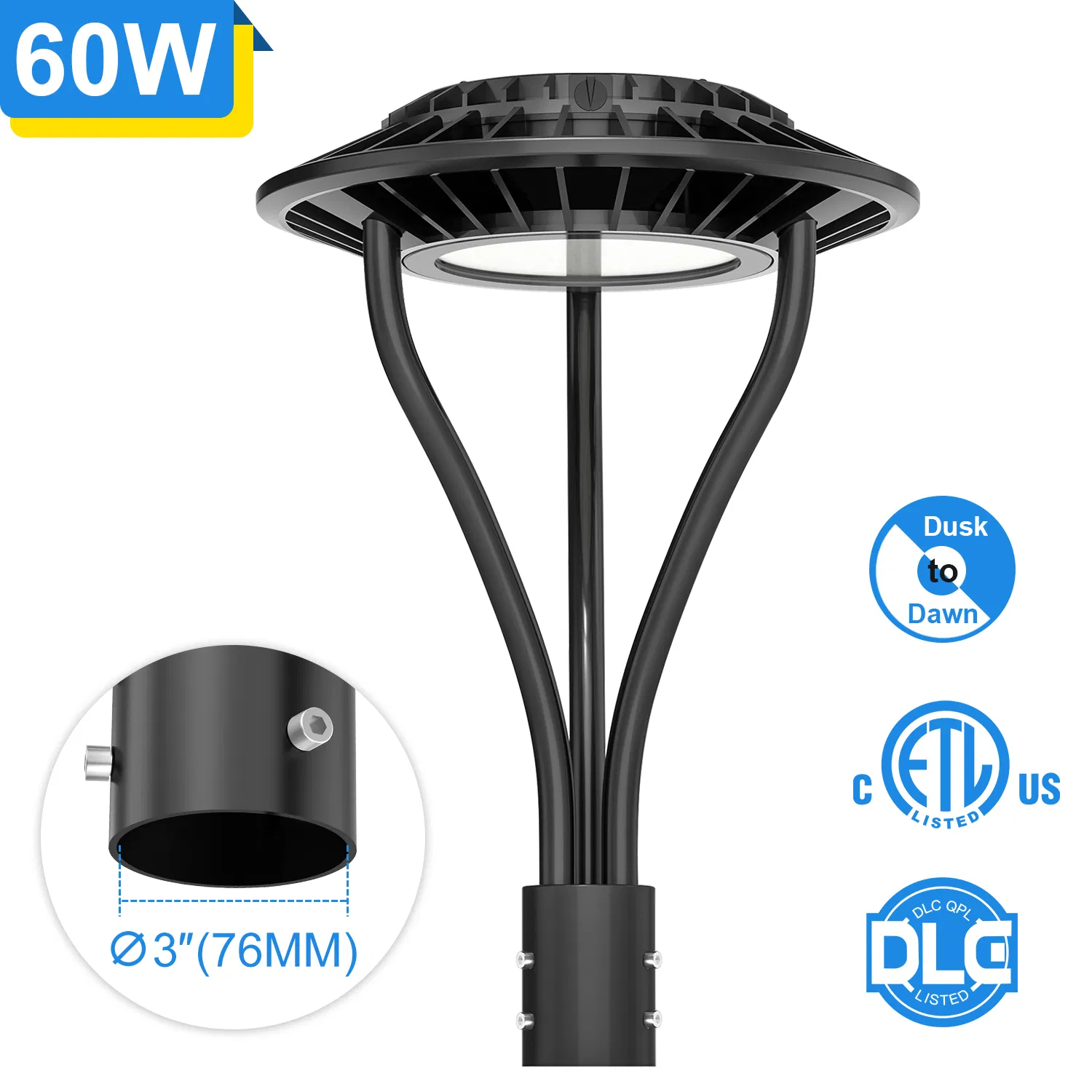

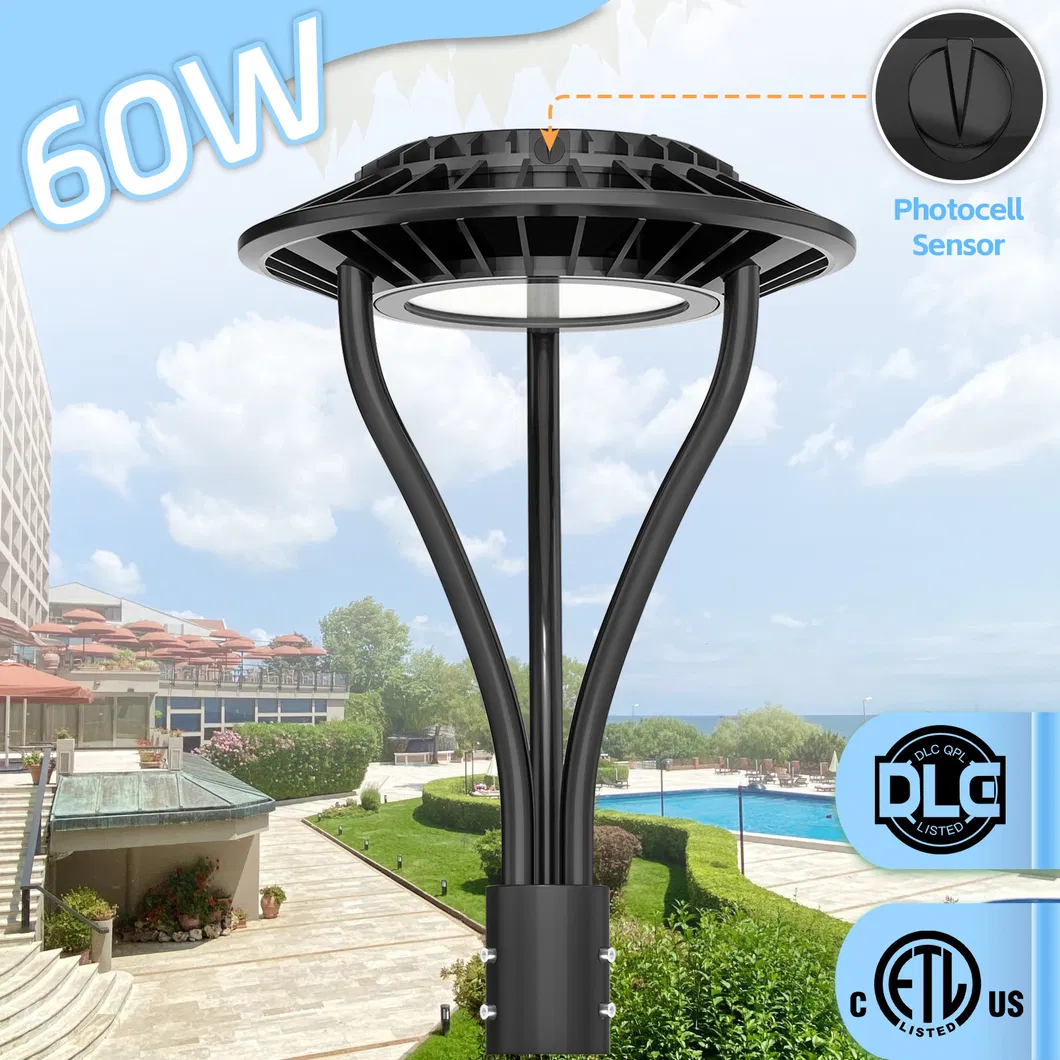

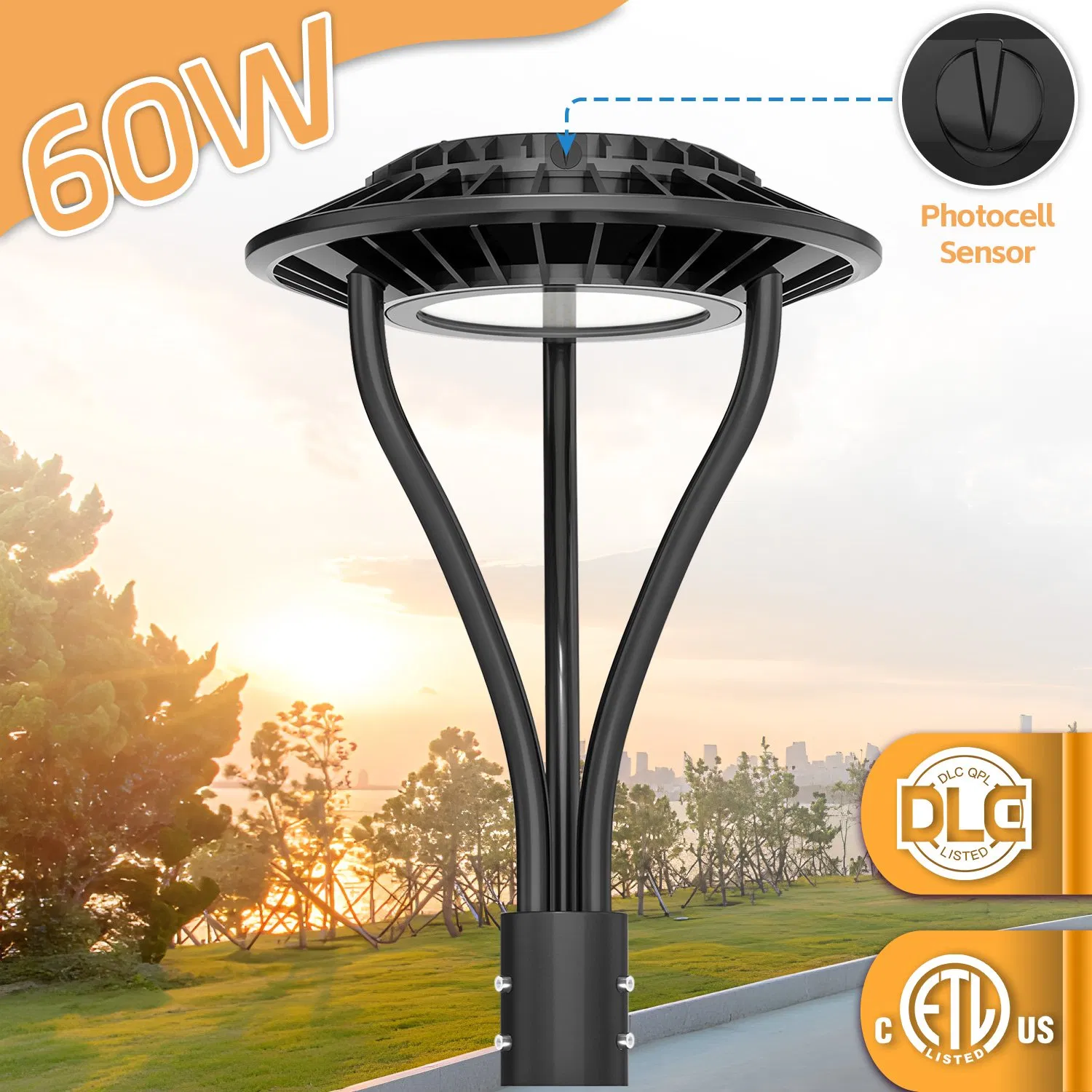

IP65 Waterproof 60W 140LM/W SMD3030 LED Post Top Area Light With Built-in Photocell CCT Tunable (3000K/4000K/5000K)
1. Tempered glass with 94% light transmittance.
2. High intensity marine grade, die-cast aluminium body (IK08 impact grade).
3. 13-step painting process for high reliability.
4. Modular optical lens design, easy to upgrade.
5. Detachable design with fast turn-off power protector for safe maintenance.
6. 10kV Surge Protection Device included.

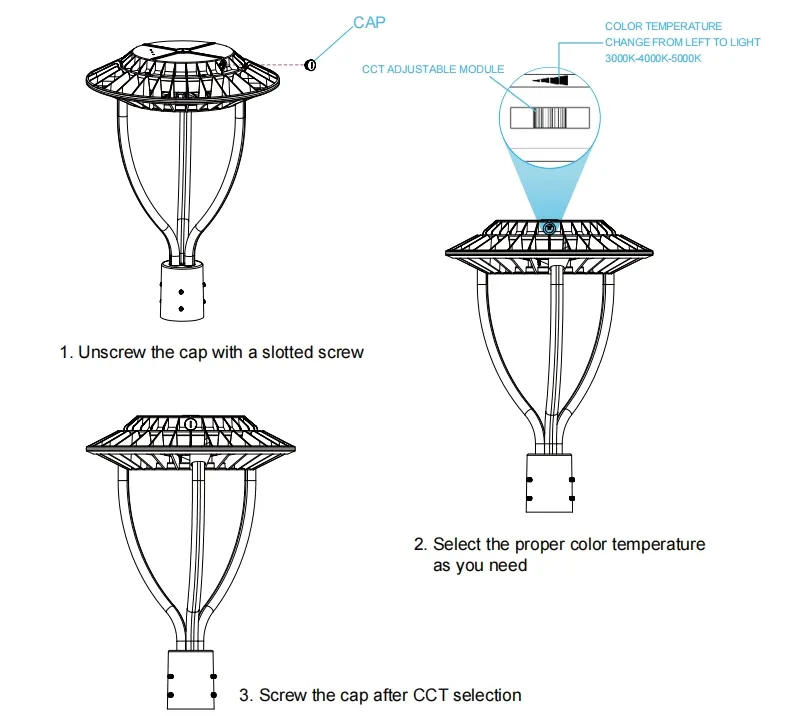

CCT & Power Adjustment:
1. Disconnect power before adjustment.
2. Unscrew the threaded cap.
3. Set desired power and color temperature.
4. Tighten the cap and remove sensor cap if photocell is needed.

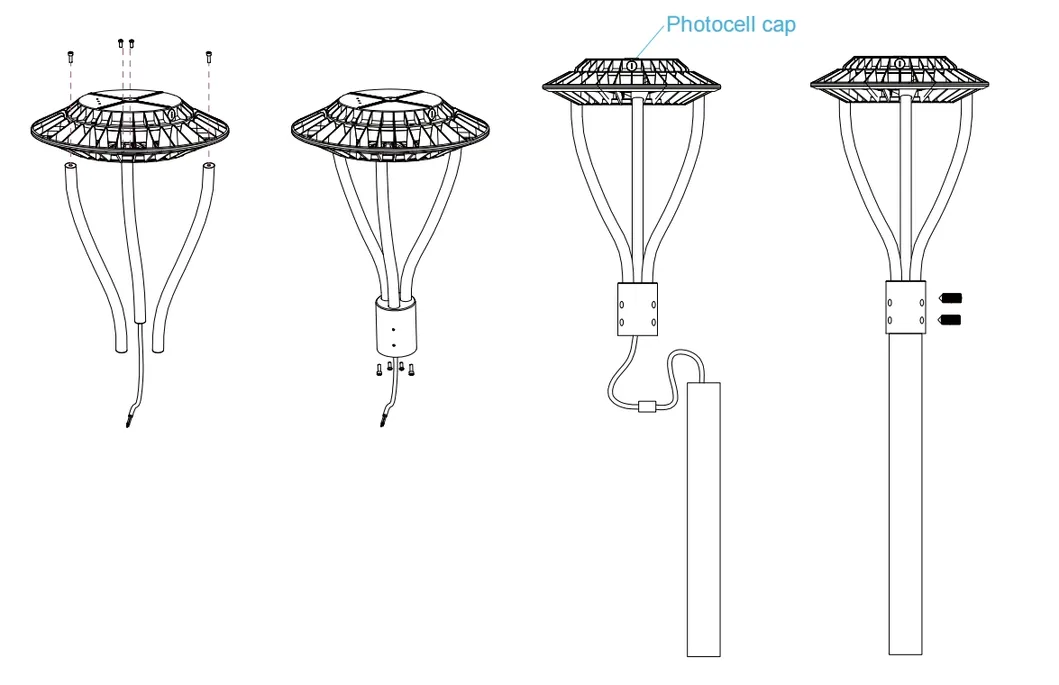

Installation Steps:
Step 1: Pass leads through the stem and fix with lamp.
Step 2: Pass leads through the tenon pole and fix with screws.

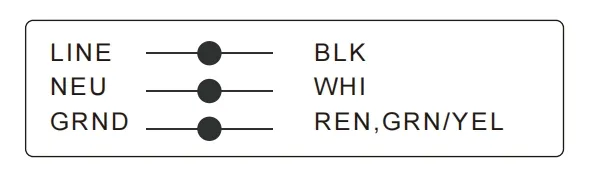

Step 3: Connect wires (Black-Line, White-Neutral, Green-Ground) with waterproof processing.

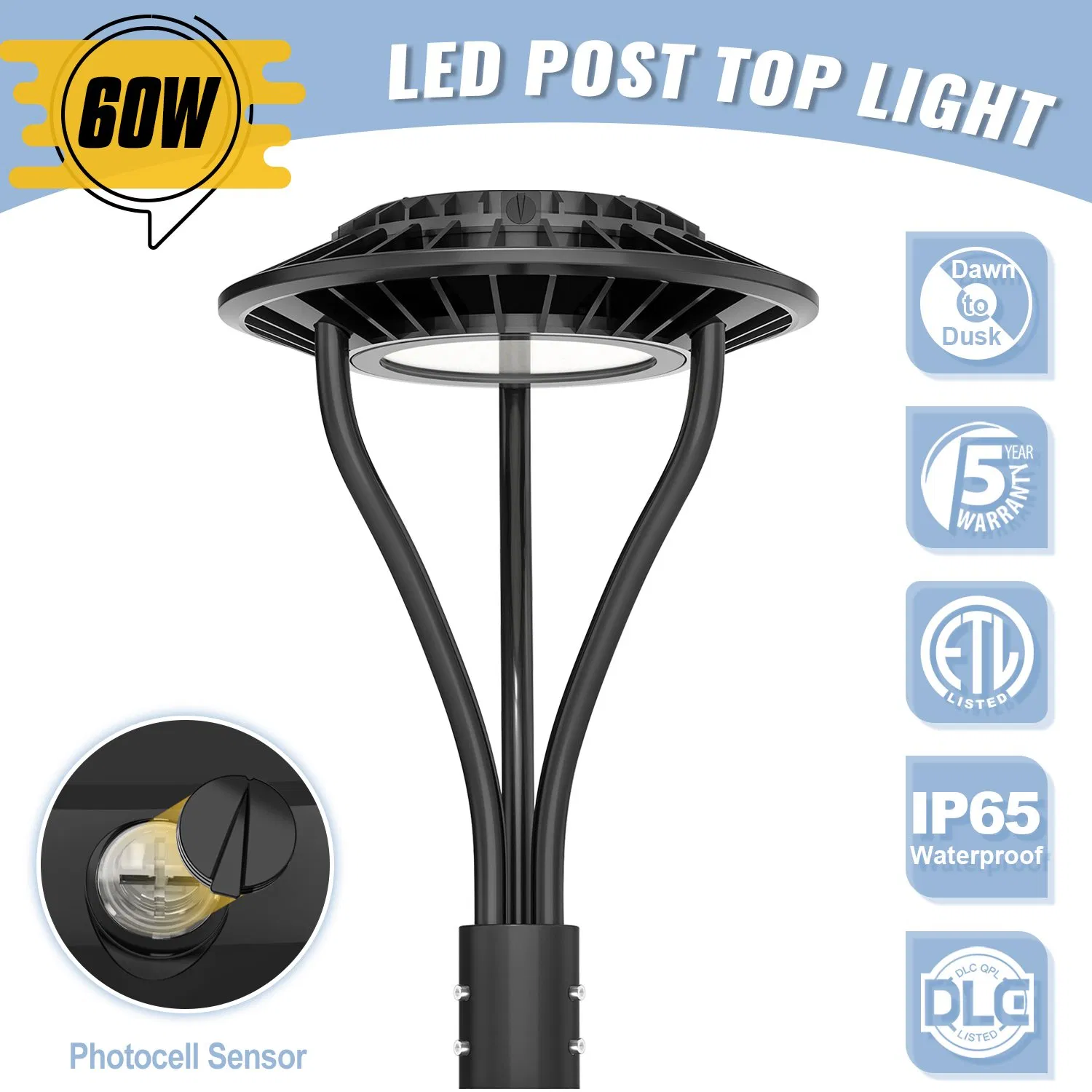

Step 4: Remove photocell cap for Dusk-to-Dawn function.
Step 5: Hang safety rope and install on the mast (>1.2m height).

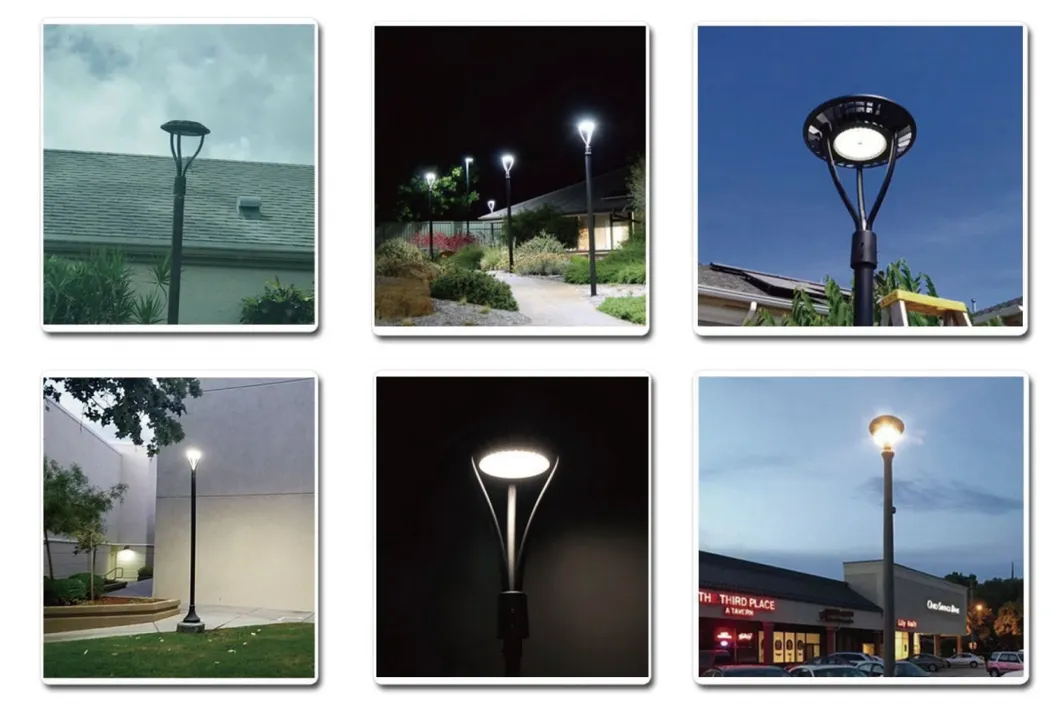

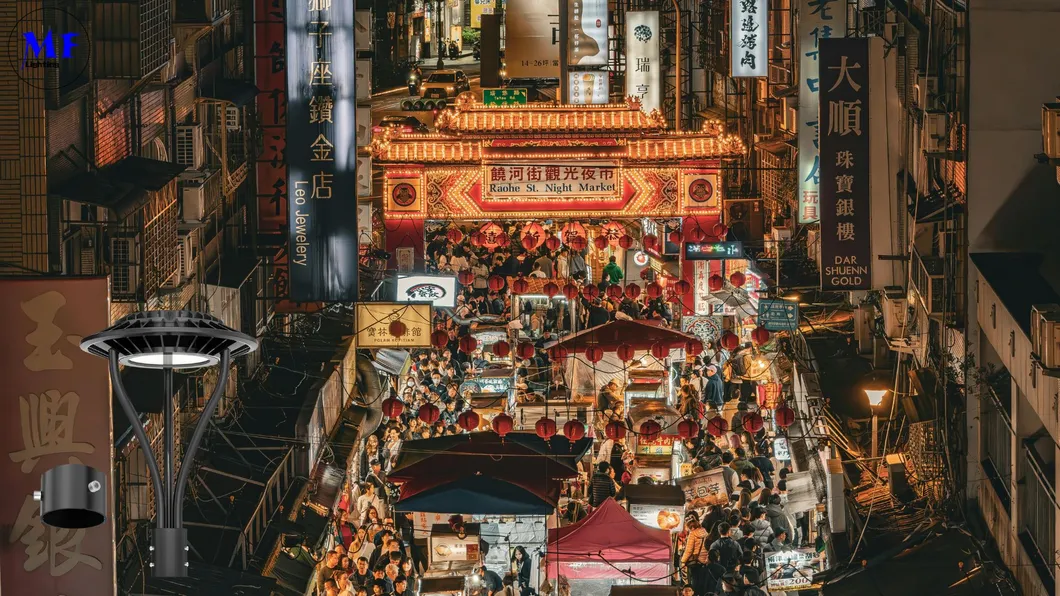

Landscape Roads

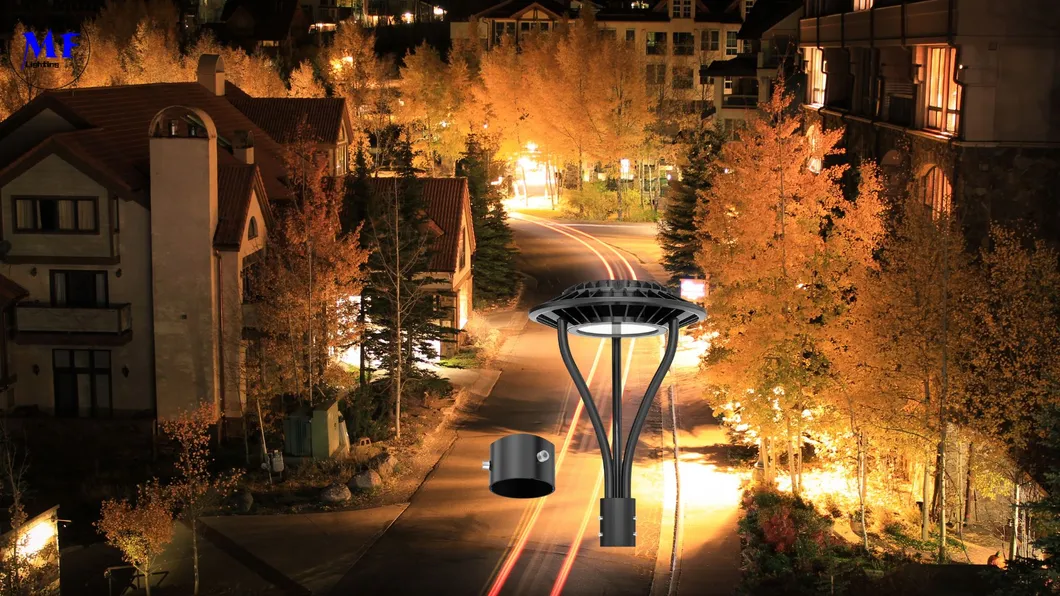

Squares & Parks

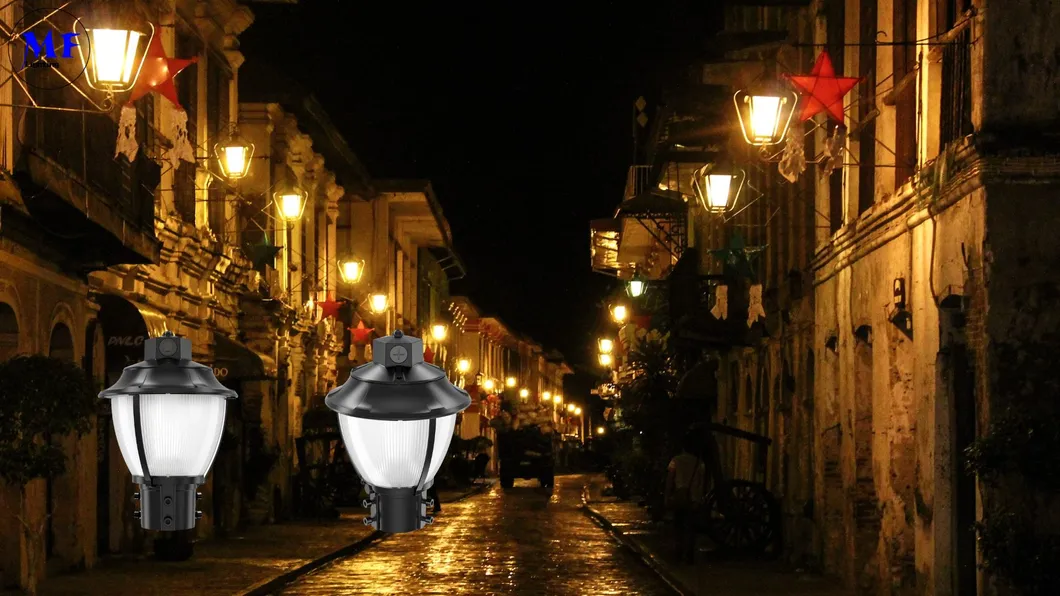

Residential Areas

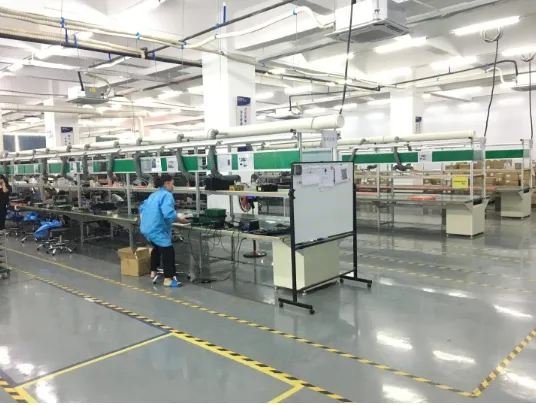

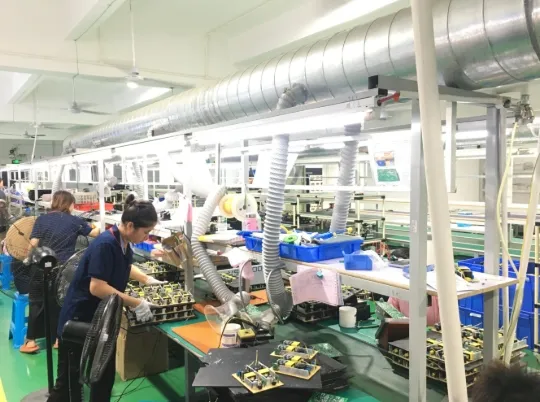

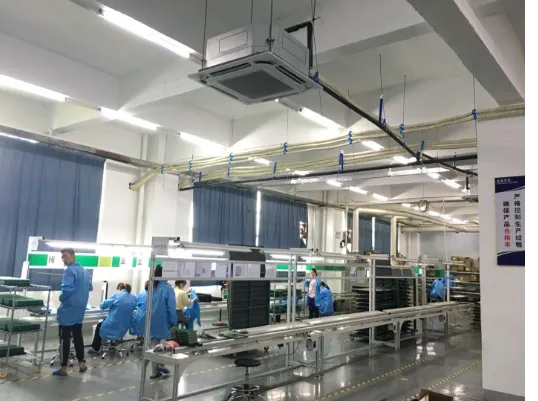

Our company is a leading LED lighting manufacturer with a dedicated factory facility. We specialize in the design, production, and distribution of high-quality LED lighting solutions. With extensive industry experience, we have established a reputation for innovation in LED technology. Our professional team is committed to providing superior lighting products for both residential and commercial applications.
