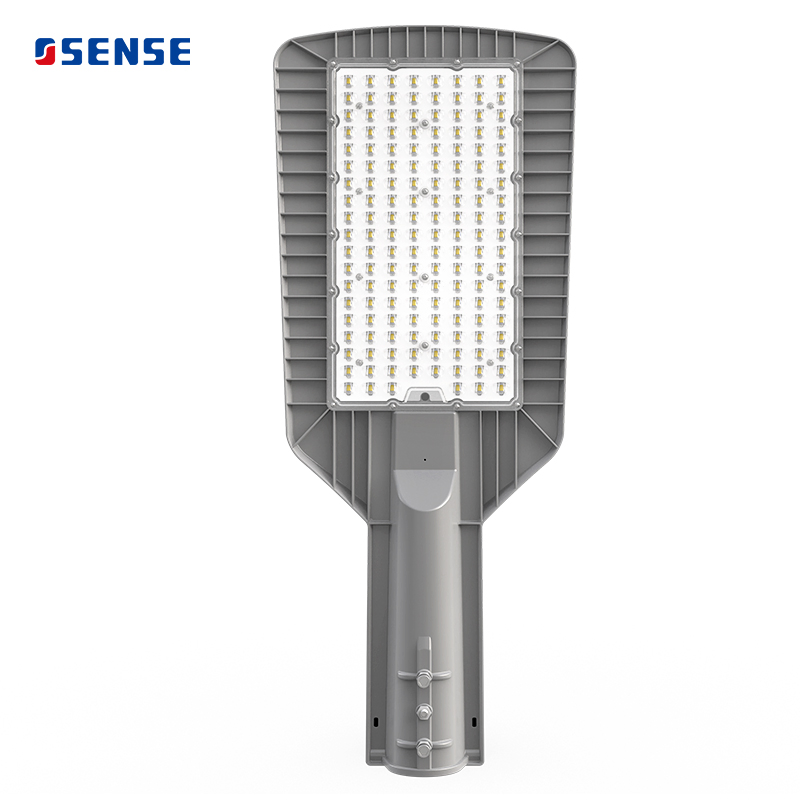

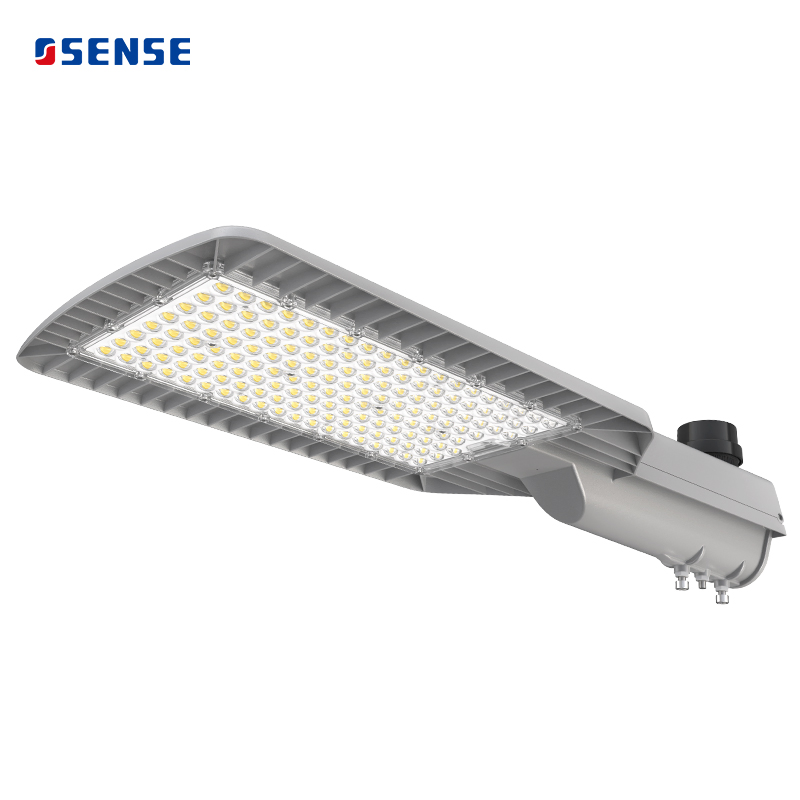

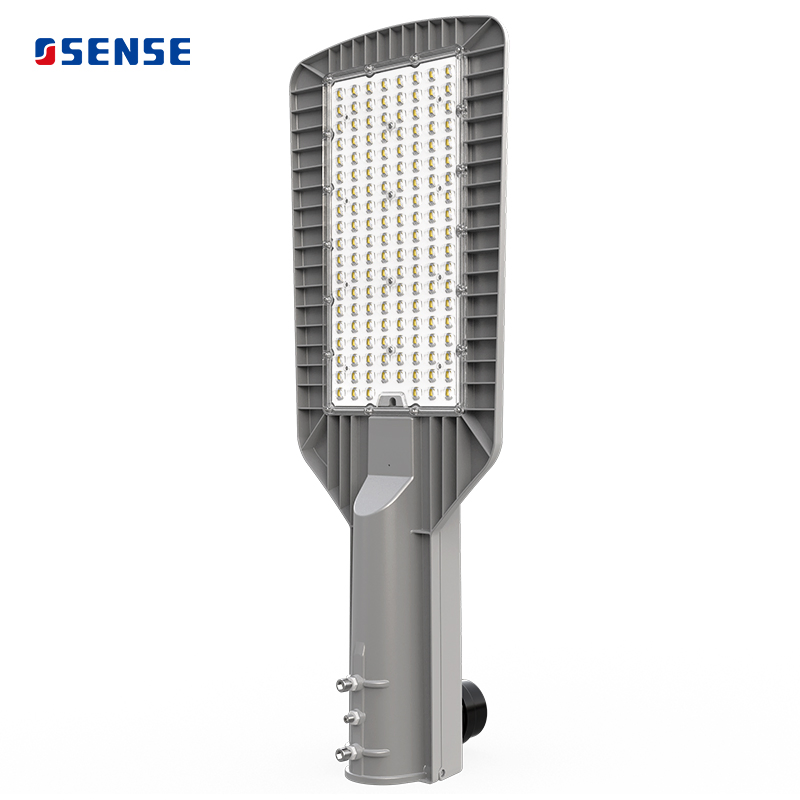

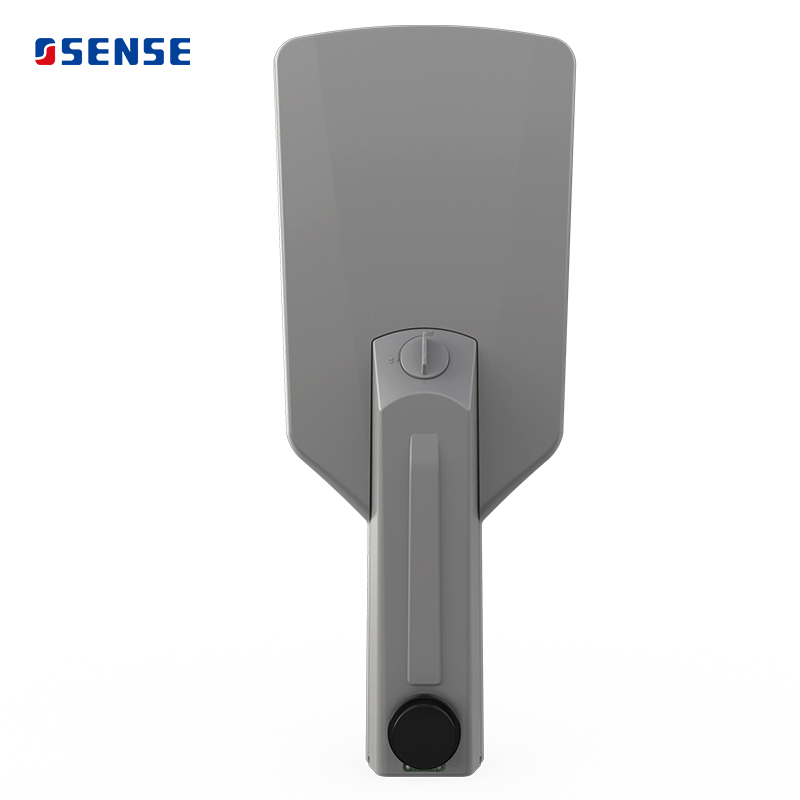

Manufacturer Supplier Factory ODM OEM 20-120W Power Saving IP66 Light Waterproof Solar Post Top Garden Light Housing LED Street Light

i

Basic Information

Model NO.

SWL-BY200W

Lamp Body Material

Aluminum

Power

60W

IP Rating

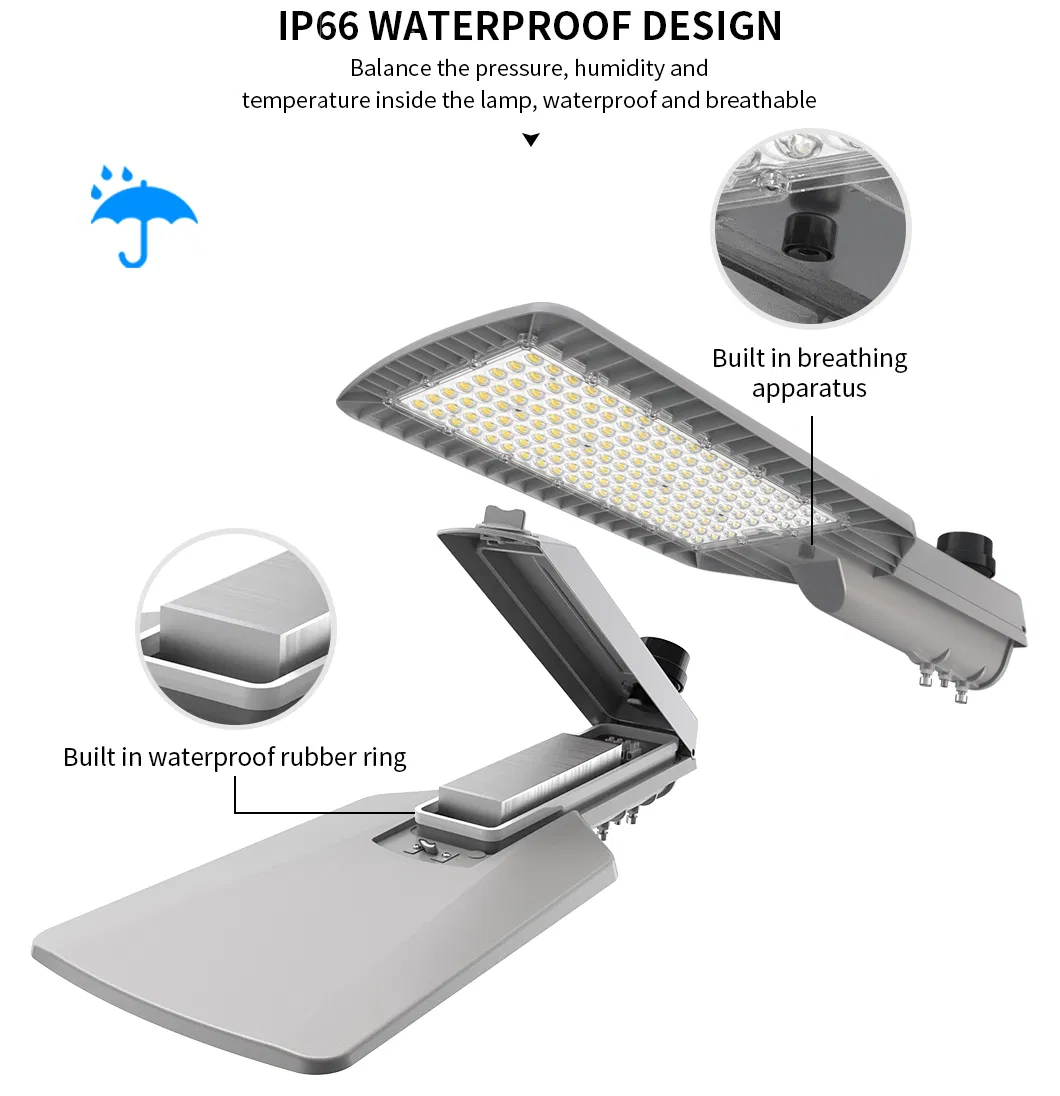

IP66

Input Voltage

100-277V

LED Chips Brand

CREE/OS RAM/Nichia/Lumileds/Bridgelux

Operating Temp

-30℃/+45℃

Driver Brand

Moso/Sosen/Meanwell/Inventronics

Warranty

3/5/7/10 Years

Certification

CB, CCC, CE, EMC, Energy Star, LVD, RoHS, SAA

★

Product Features

Paten private mold, integrated Die-casting.

High-efficiency coating, paint, and metal parts can pass 500 hours salt spray test.

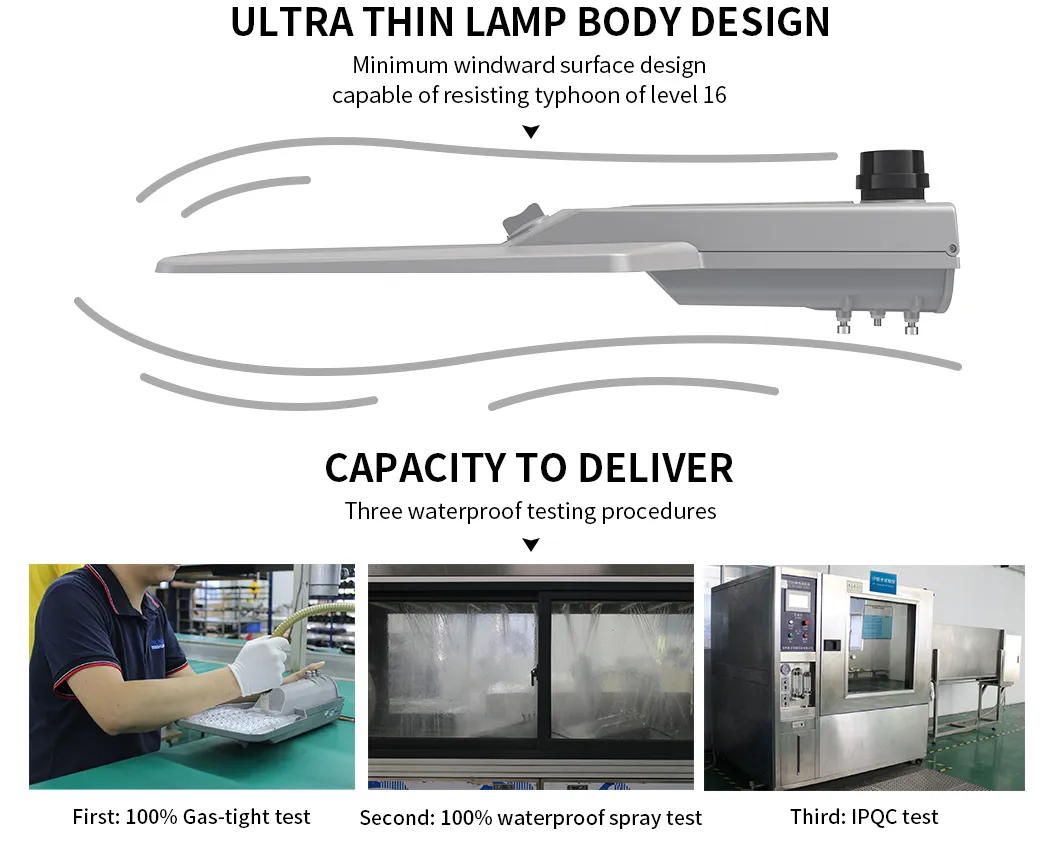

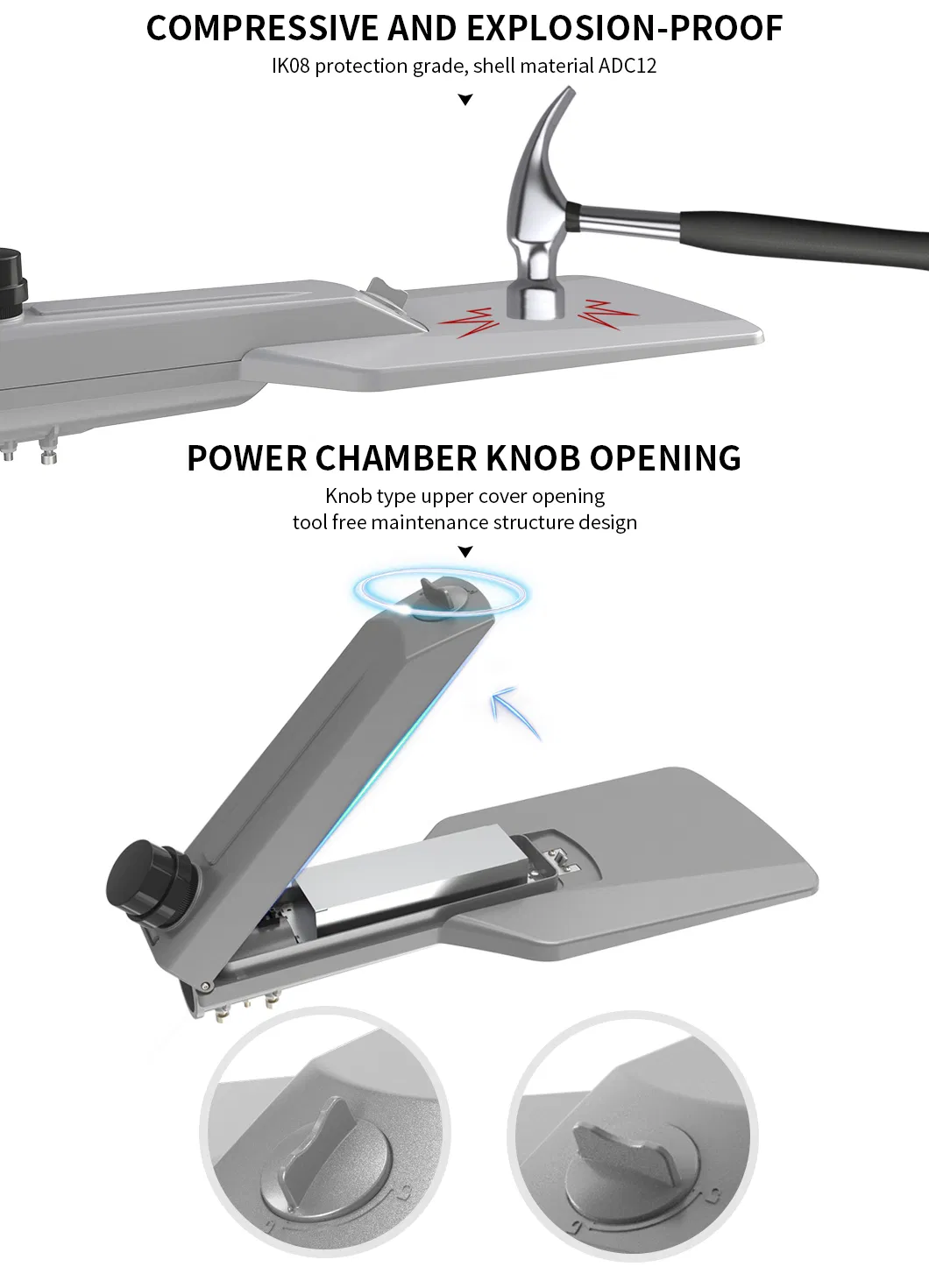

Power cavity opening method: Tool-free open; Easy installation and maintenance.

Detachable design and fast turn-off power protector render this luminaire convenient and safe for maintenance.

High efficiency up to 170lm/w optional.

Cost-effective and efficient lighting solution for a fast return on investment.

Equipped with PMW and Dimming interfaces, DALI, 0-10V /1-10V control system available.

Long life span of over 50000 Hours.

⚙

Technical Specifications

GENERAL INFORMATION		ELECTRICAL INFORMATION

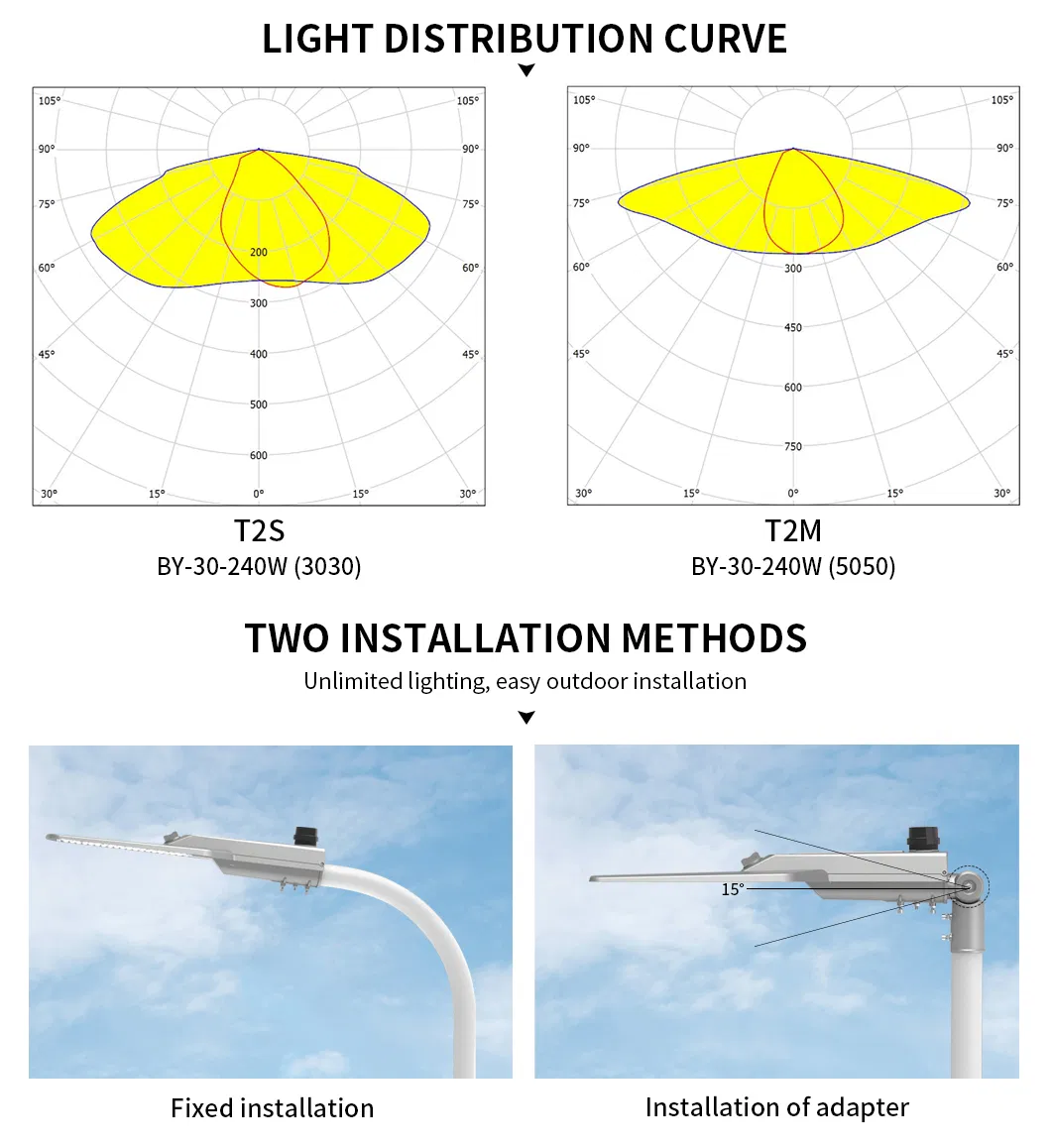

Mounting Module	Post top or side entry 42-60Φ / 76-80Φ	Electrical Class	Class I
Tilt Angles	0, ±5, ±10, ±15	Nominal Voltage	100v-277vac 50/60Hz
LED Current	SMD 3030 150mA@6V	Power Factor	≥0.95@230Vac
Housing	ADC 12 die-casting	Color Temp	3000K / 4000K / 5000K / 5700K

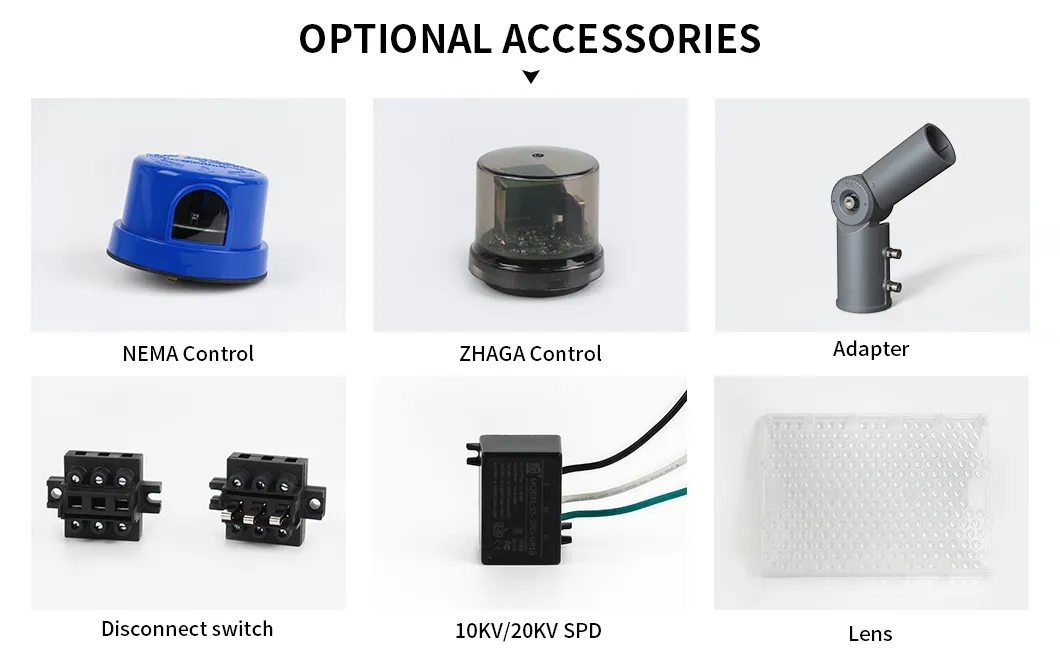

CRI	CRI≥70, CRI≥80	Surge Protection	10kV / 20kV Optional

📋

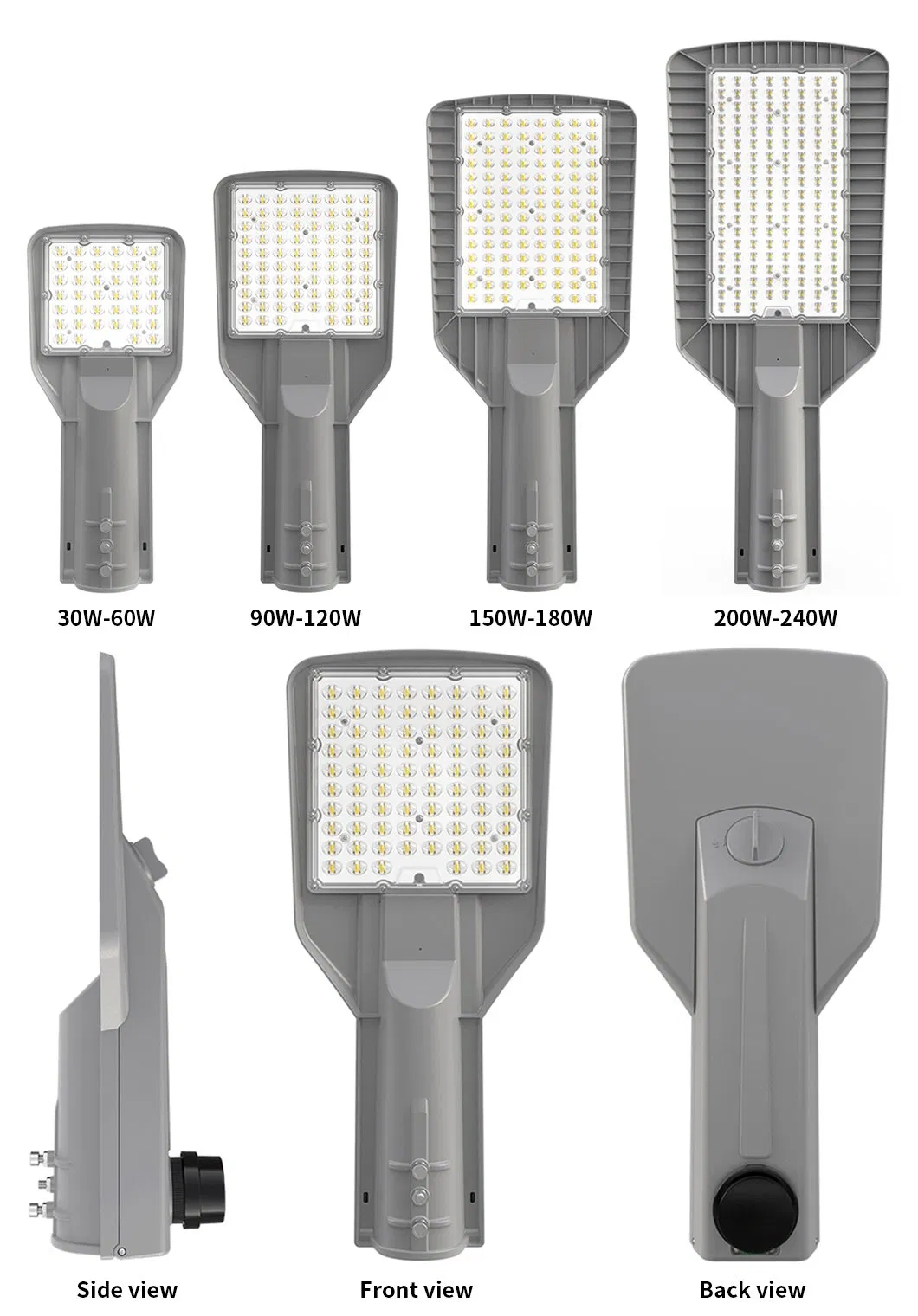

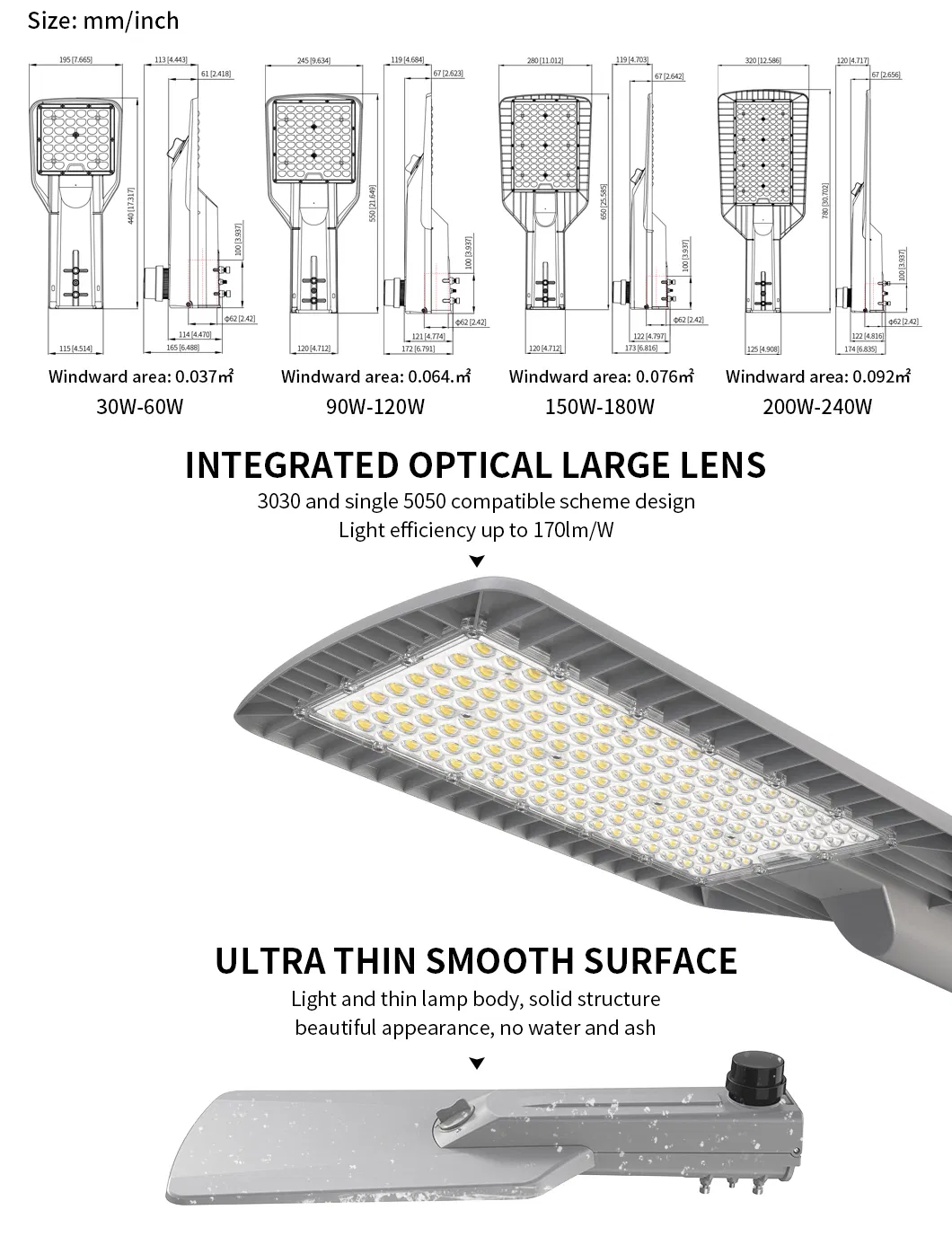

Configuration Scheme

Model No.	Power	LED Brand	Efficiency	Luminous Flux	Dimensions (mm)
SWL-BY30W	30W	CREE	135-150lm/w	4050-4500lm	L440W195H169
SWL-BY60W	60W	CREE	135-150lm/w	8100-9000lm	L440W195H169
SWL-BY100W	100W	CREE	135-150lm/w	13500-15000lm	L550W245H172
SWL-BY150W	150W	CREE	135-150lm/w	20250-22500lm	L650W280H173
SWL-BY200W	200W	CREE	135-150lm/w	27000lm	L780W320H174
SWL-BY240W	240W	CREE	135-150lm/w	32400lm	L780W320H174

📷

Product Details

?

Frequently Asked Questions

Are you a manufacturer?

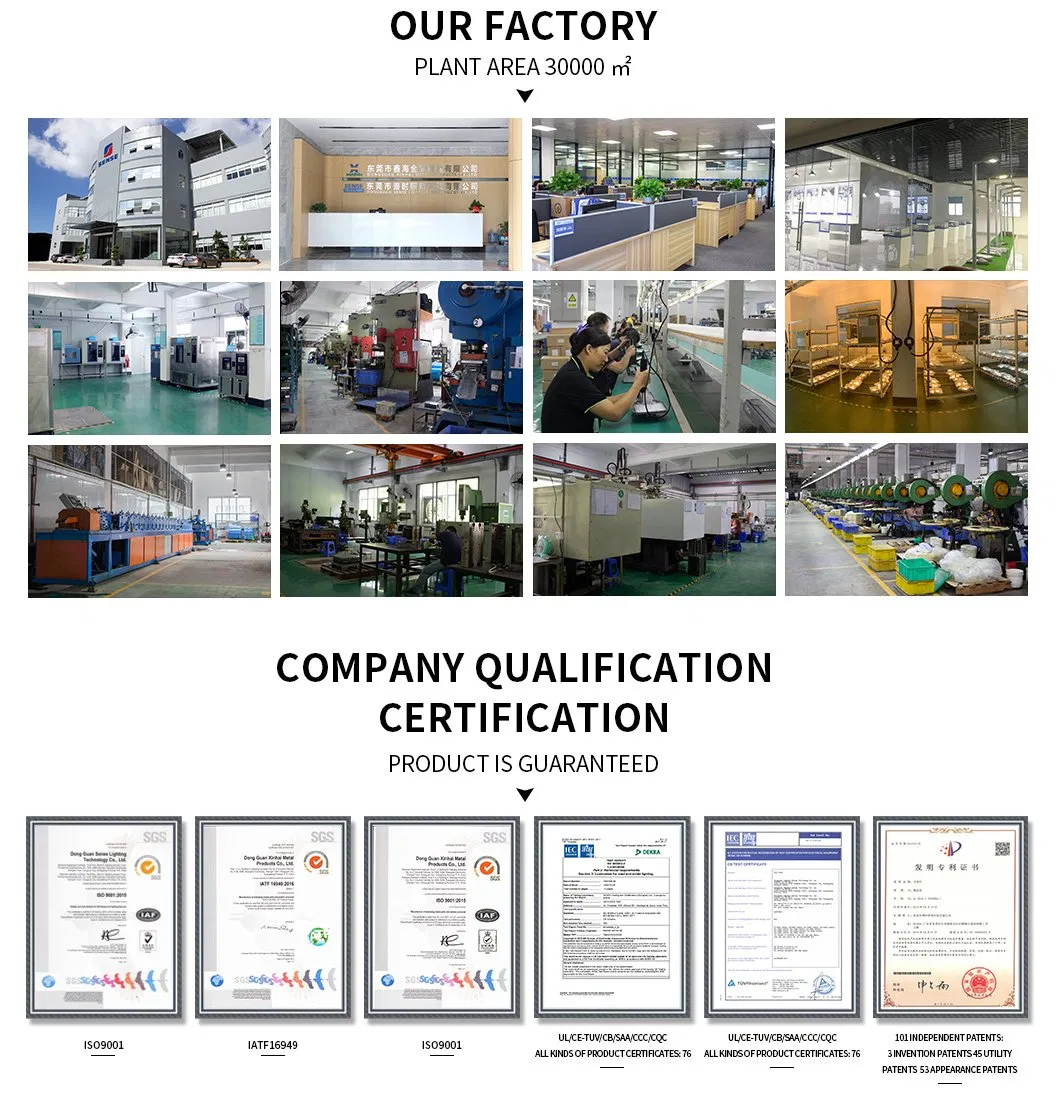

Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.

What Certification do you have?

Our products are TUV/CB/CE/EMC/SAA/CCC/RoHS approved, with IP65/IP66/IP67/IK08/IK09/IK10 and LM79/LM80/IES reports.

Can I have our LOGO on the products and packages?

Yes, we provide comprehensive OEM services to our customers including logo placement and custom packaging.

What is the warranty of your products?

We offer 5-7 years of warranty depending on the specific requirements of the customer and application.

What about the lead time for orders?

Typically 3-7 days for samples and 10-20 days for mass production based on the order quantities.

How do you handle faulty products?

Our products are produced under strict quality control (defect rate < 0.1%). For faults within the warranty period, we provide replacements or repair services depending on the situation.
